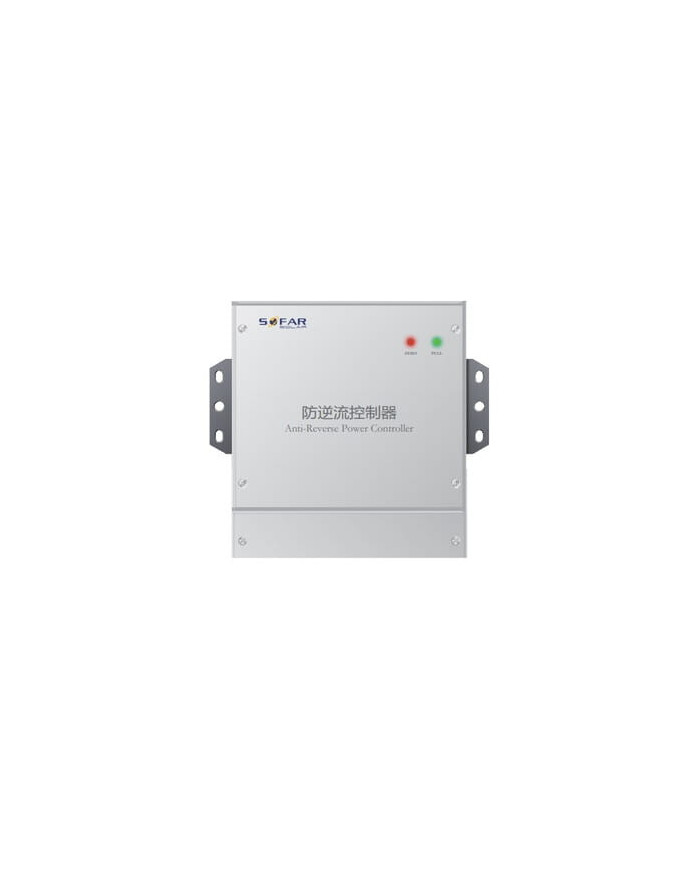

SOFAR ARPC Anti-Reverse Power Controller

The SOFAR ARPC (Anti-Reverse Power Controller) is an essential component for managing and optimizing power flow in your solar energy system. Designed with precision and reliability in mind, this controller ensures that excess power is efficiently managed, preventing reverse power flow and maximizing energy utilization.

• SOFAR ARPC: High-performance Anti-Reverse Power Controller.

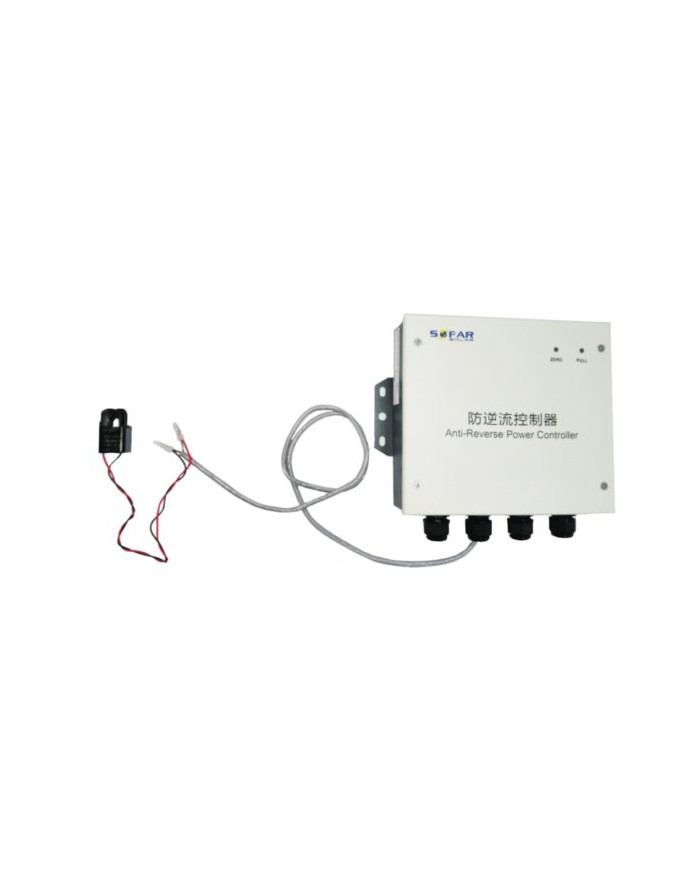

• CT Clamp Accuracy: Comes with a Current Transformer (CT) clamp boasting an accuracy of 1% or less for precise current measurement.
• Voltage Sampling Cable: Uses AWG 20 ~ 22 voltage sampling cable for reliable voltage readings.
• CT Sampling Cable: Employs AWG 20 ~ 22 CT sampling cable for accurate current sensing.
• Load Limiting Cable: Compatible with network cable or AWG 20 ~ 22 for load management.
• Voltage Sensors Connection: Supports voltage sensors with a range of 80-270Vrms.
• Max CT Cable Length: Offers a maximum CT cable length of 100m for flexible installation.
• Load Limiting Signal Wires:
  • COM ARPC to GND: Connect COM ARPC to the GND of the power regulation module.
  • RY1 ARPC to IN1: Connect RY1 ARPC to the IN1 of the power regulation module.
  • RY2 ARPC to IN2: Connect RY2 ARPC to the IN2 of the power regulation module.
  • RY3 ARPC to IN3: Connect RY3 ARPC to the IN3 of the power regulation module.
  • RY4 ARPC to IN4: Connect RY4 ARPC to the IN4 of the power regulation module.

With its high accuracy and versatile connectivity, the SOFAR ARPC ensures seamless integration with your existing power regulation modules. The extended cable length and precise current sensing capabilities make it a reliable choice for any solar power system. Proper connection of the load limiting signal wires, as specified, guarantees optimal performance and protection against reverse power flow.
