Hoymiles DDSU 666 - 1-Phase Energy Meter with CT 100A

New
Out of stock

Click to enlarge

Previous product

FelicityESS Battery Combiner Box 6 in-2 out UNI-T-0602BCG01 80A, 125V

Back to the homepage

Hoymiles DDSU 666 - 1-Phase Energy Meter with CT 100A

Name: Hoymiles DDSU 666 - 1-Phase Energy Meter with CT 100A
Brand: Hoymiles
SKU: 100417
Price: 247.5 PLN
Availability: OutOfStock
Rating: 5 (99 reviews)

247.50 zł

Tax excluded

Warehouse Lodz

Delivery to

Poland

Austria

Belgium

Bulgaria

Croatia

Cyprus

Czechia

Denmark

Estonia

Finland

France

Germany

Greece

Hungary

Ireland

Italy

Latvia

Lithuania

Luxembourg

Malta

Netherlands

Poland

Portugal

Romania

Slovakia

Slovenia

Spain

Sweden

Shipping cost

39.00 zł/package

170.00 zł/palette

Currently out of stock

Add to wishlist

Product Details
Files

Description

BrandHoymiles

Reference23430

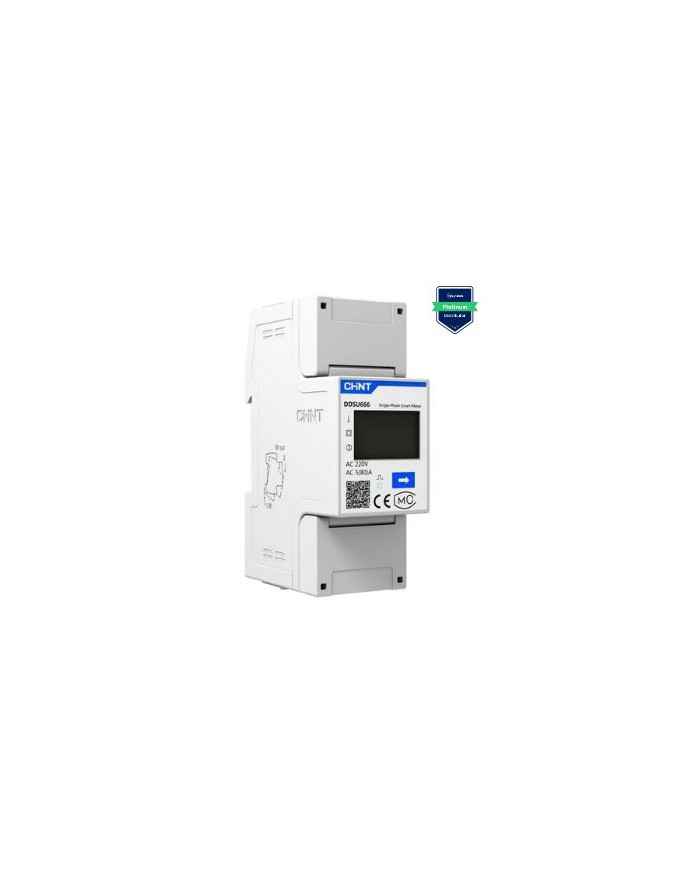

The Hoymiles DDSU 666 is a single-phase energy meter designed for accurate monitoring and metering of electrical power systems. Supplied with a CT 100A current transformer, this DIN-Rail meter is perfect for diverse applications in the communication and construction industries, especially when used with DTU PRO.

Type: Single-phase electronic energy meter (DIN-Rail)

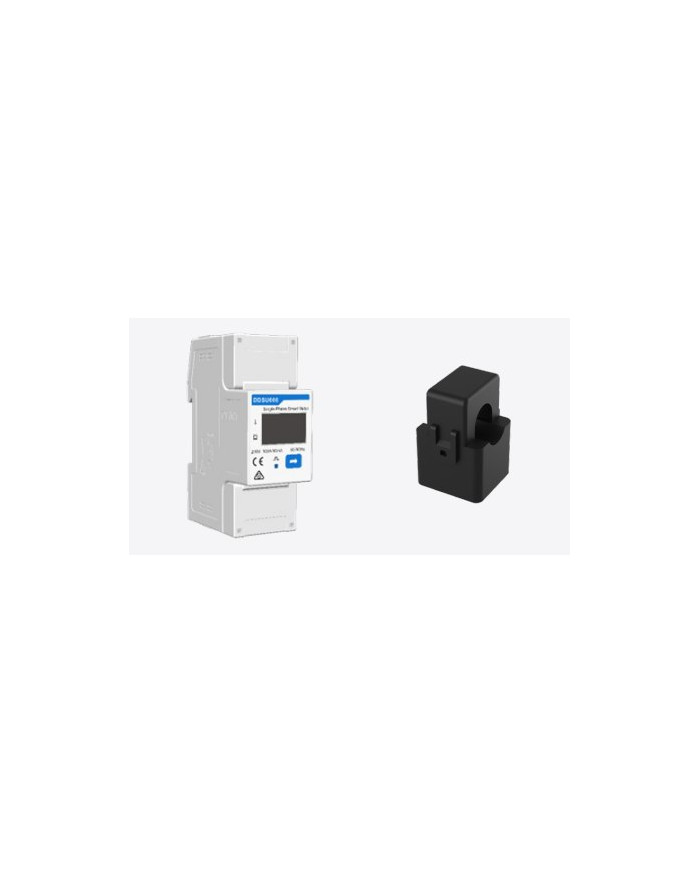

Includes: CT 100A current transformer
Main Application: Monitoring and energy metering for electric power systems
Reference Voltage: 230V
Frequency: 50Hz / 60Hz
Current: 5(60)A (direct access) / 100mA (Mutual inductance access)
Accuracy Class: 1
Display Parameters: Voltage (V), Current (A), Active Power (W), Reactive Power (var), Frequency (Hz), Power Factor, Active Energy (kWh)
Communication: RS485 with Modbus-RTU protocol
Operating Temperature: -25°C ~ +55°C
Mounting: DIN35mm rail mounting
Positive and negative active power measurement
Data storage after power off

The Hoymiles DDSU 666 ensures precise energy monitoring with features like a wide temperature LCD display, RS485 communication, and a broad operating temperature range. With its compact, modular design and easy installation, it is a versatile choice for various energy management applications.

Product Details

Instrukcja obsługi EN (1.03MB)
DDSU666 Single Phase Smart Meter (567.25KB)
HOYMILES DDSU 666 Installation M (7.8MB)
DDSU666-CT / DTSU666-CT Smart Me (3.7MB)
DDSU666 Single-phase electronic (1.03MB)
