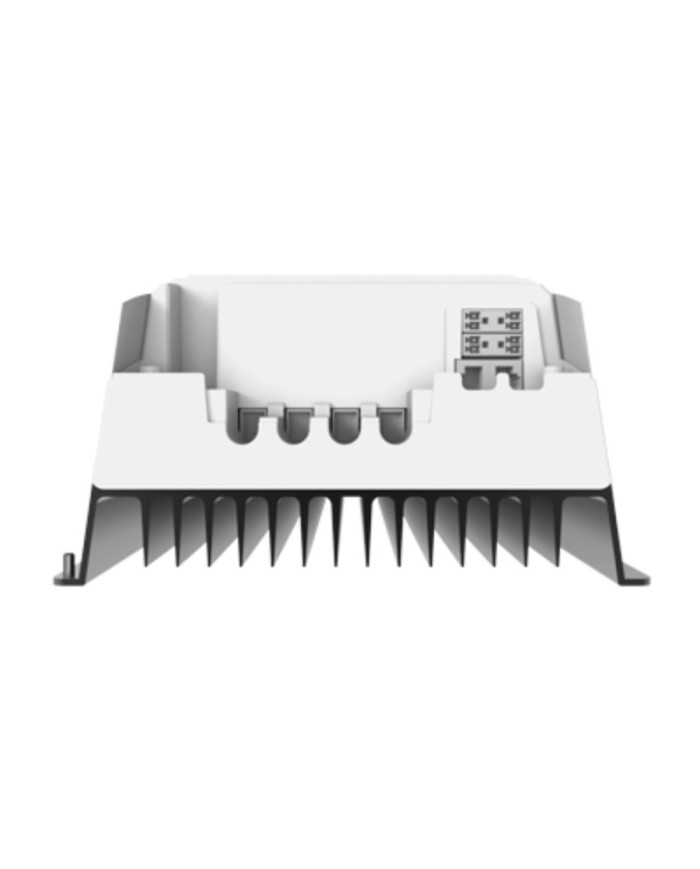

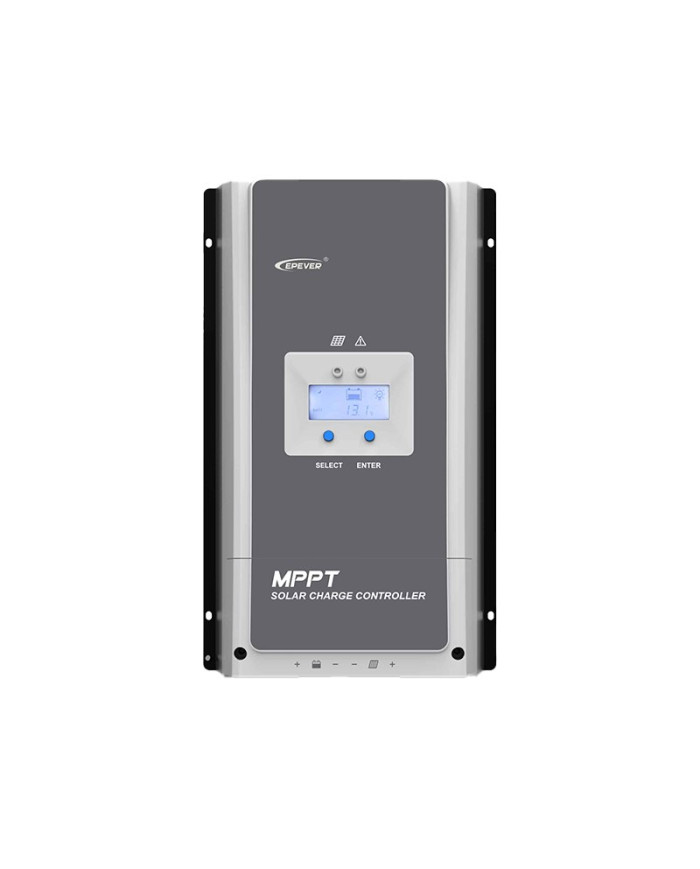

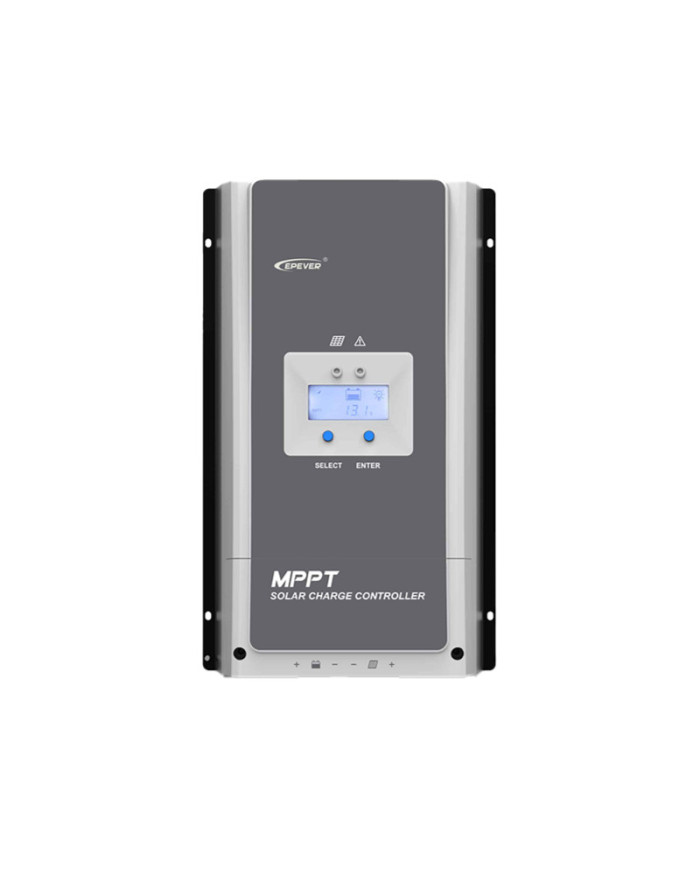

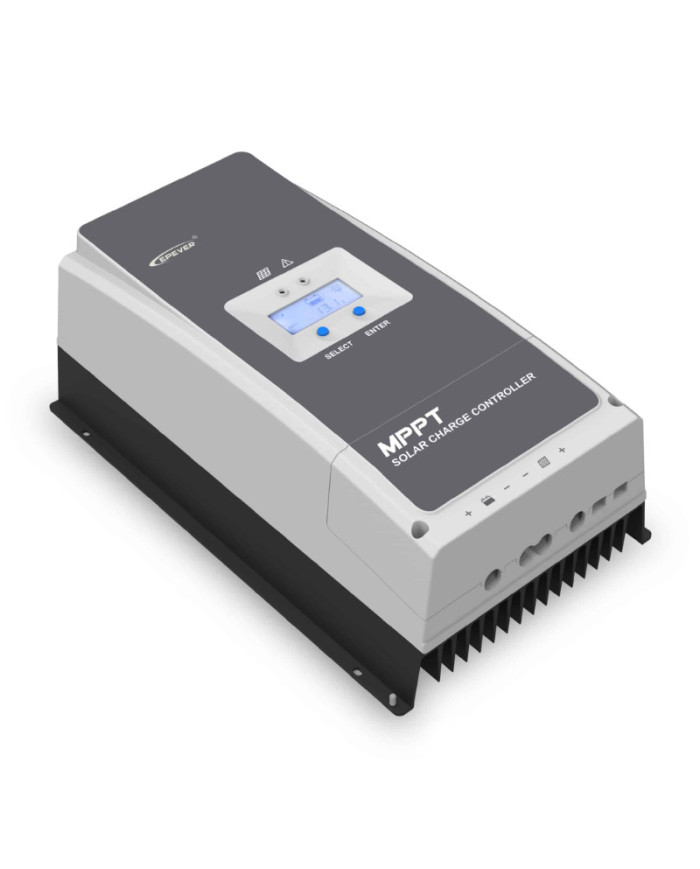

EPEVER MPPT Tracer 6420AN 60A Charge Controller

The EPEVER MPPT Tracer 6420AN is a high-performance 60A charge controller designed to maximize the efficiency of your solar power system. This advanced controller ensures optimal battery charging and system protection for a variety of applications.

• Model: Tracer 6420AN
• Nominal System Voltage: 12/24/36/48VDC Auto
• Battery Type: Lead-acid (Sealed/Gel/Flooded), Lithium (LiFePO4, Li(NiCoMn)O2), User-defined
• Rated Charge Current: 60A
• Maximum Conversion Efficiency: Up to 98.30%
• MPPT Tracking Efficiency: Greater than 99.5%
• Maximum PV Open Circuit Voltage: 180V (minimum operating temperature), 170V (at 25°C)
• MPP Voltage Range: (Battery Voltage + 2V) - 144V
• Communication Interface: RS485 (5VDC/200mA, Two RJ45 ports in parallel)
• Operating Temperature Range: -25°C to +60°C (with derating above 45°C)
• Supports: Lead-acid and lithium-ion batteries
• Grounding: Common negative design

The Tracer 6420AN features high-temperature charging power derating, ensuring stable operation even in demanding environments. With its superior MPPT tracking and conversion efficiency, this charge controller is an excellent choice for maximizing the performance and lifespan of your solar power system. Additionally, it offers convenient APP monitoring via Apple and Google Play Stores, enhancing user control and oversight.
