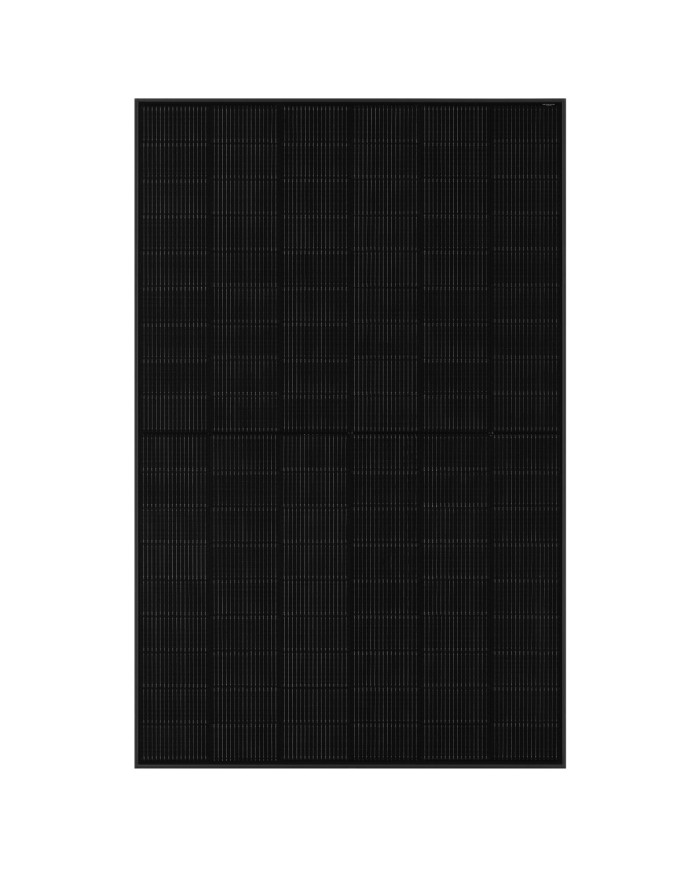

JA Solar JAM54D41 LB 450W Bifacial Double Glass Solar Panel

Introducing the JA Solar JAM54D41 LB 450W Bifacial Double Glass Solar Panel, a pinnacle of solar technology designed to optimize energy efficiency and performance. This high-efficiency mono module is engineered to deliver exceptional power output and reliability, making it a perfect choice for both residential and commercial solar installations.

• Power Output: 450W
• Cell Type: Mono-16BB
• Weight: 22 kg
• Dimensions: 1762 mm x 1134 mm x 30 mm
• Cable Cross Section Size: 4 mm² (12 AWG)
• Number of Cells: 108 (6x18)
• Junction Box: IP68, 3 diodes
• Connector: MC4-EVO2/MC4-EVO2
• Cable Length (Including Connector): 300 mm (Portrait), 800 mm (Landscape)
• Front/Back Glass: 1.6 mm / 1.6 mm
• Open Circuit Voltage (Voc): 39.30 V
• Maximum Power Voltage (Vmp): 32.65 V
• Short Circuit Current (Isc): 14.40 A
• Maximum Power Current (Imp): 13.63 A

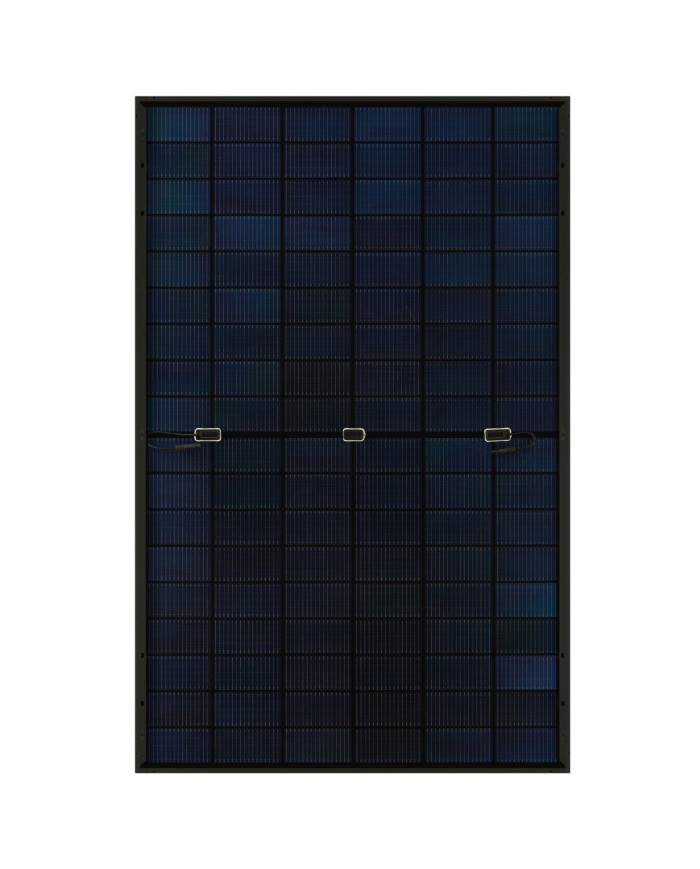

The JA Solar JAM54D41 LB features a bifacial design with double glass, which allows it to capture sunlight from both sides, enhancing energy generation by up to 80% compared to traditional panels. With a module efficiency of 22.3%, this solar panel ensures higher power generation and better performance under various conditions.

• Module Efficiency: 22.3%
• Temperature Coefficient of Voc: -0.260%/°C
• Temperature Coefficient of Pmax: -0.300%/°C
• Maximum System Voltage: 1500V DC
• Operating Temperature: -40°C to +85°C
• Maximum Static Load: 2400Pa (Front), 1600Pa (Back)
• NOCT: 45±2°C
• Bifaciality: 80%±10%
• Warranty: 12-year product warranty, 30-year linear power output warranty
• Degradation: 1% first-year degradation, 0.4% annual degradation over 30 years
• Certifications: IEC 61215, IEC 61730, ISO 9001, ISO 14001, ISO 45001, IEC 62941
• Temperature Coefficient of Isc: +0.046%/°C
• Features: Better Weak Illumination Response, Better Temperature Coefficient, Higher Power Generation, Better LCOE

With its robust construction and advanced technology, the JA Solar JAM54D41 LB is built to withstand harsh environmental conditions while delivering consistent performance. The comprehensive warranty and low degradation rates ensure long-term reliability and value. Ideal for those seeking a high-efficiency, durable solar solution, this panel stands out for its superior energy capture and cost-effectiveness. Upgrade your solar system today with the JA Solar JAM54D41 LB 450W Bifacial Double Glass Solar Panel.
