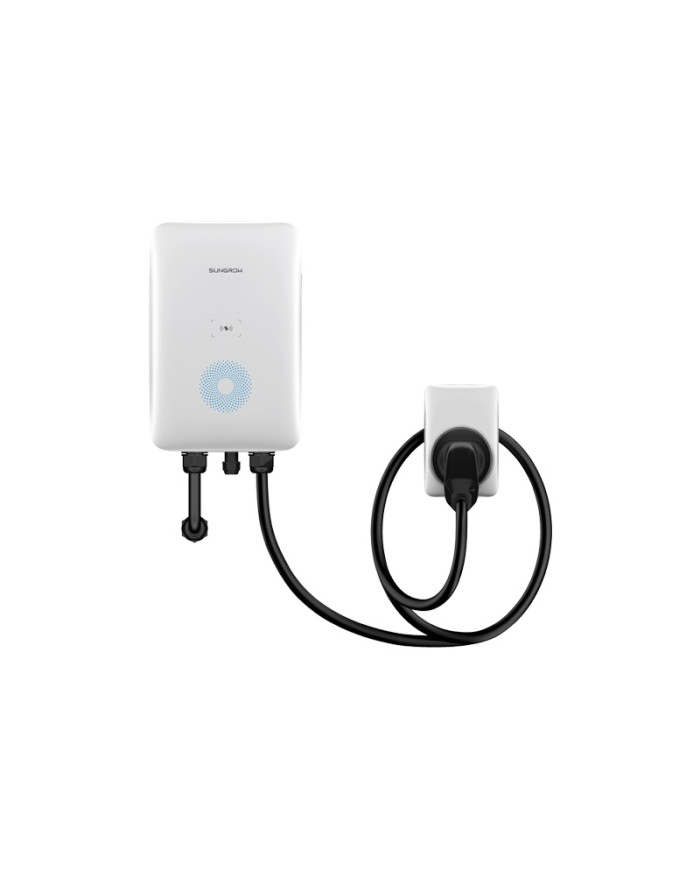

Sungrow AC011E-01

The Sungrow AC011E-01 is a state-of-the-art electric vehicle charger designed for efficient and reliable charging, tailored for 50Hz grids but also compatible with 60Hz grids. This charger combines advanced features with robust protection mechanisms to ensure safe and seamless operation.

• Max. Charging Power: Offers up to 11 kW, providing rapid charging for electric vehicles.
• Nominal Voltage: Operates at 400 V AC (+20%), suitable for standard electrical systems.
• Overvoltage Category: Rated as Category III, ensuring resilience against voltage spikes.
• Grounding System: Compatible with TT and TN grounding systems.
• Residual Current Device: Equipped with 6mA DC protection for enhanced safety.
• Over/Under Voltage Protection: Includes comprehensive protection against voltage fluctuations.
• Over-Current Protection: Prevents damage from excessive current draw.
• Over-Temperature Protection: Shuts down operation in case of overheating to protect the device.
• Communication: Features RS485/WLAN connectivity with OCPP 1.6 J protocol for smart management.
• Start Mode/Authentication: Supports Plug&Play, RFID card, APP (iEnergyCharge App), and EMS for versatile access.
• Degree of Protection: IP65-rated, making it dust-tight and water-resistant.
• Dimensions: Compact design with dimensions of 205 x 310 x 92 mm and a weight of just 3.8 kg.
• Operating Temperature Range: Functions effectively in temperatures from -30 to 50 °C.
• Compliance: Adheres to EN/IEC 61851-1:2019 and EN/IEC 61851-21-2:2018 standards.

The Sungrow AC011E-01 is not just a charger; it's a smart, safe, and efficient solution for electric vehicle charging needs. Its compact design, coupled with its robust protection features and smart connectivity, make it an ideal choice for both residential and commercial applications. With a standard warranty of 2.5 years, extendable to 3 years, you can trust in the reliability and longevity of this exceptional EV charger.
