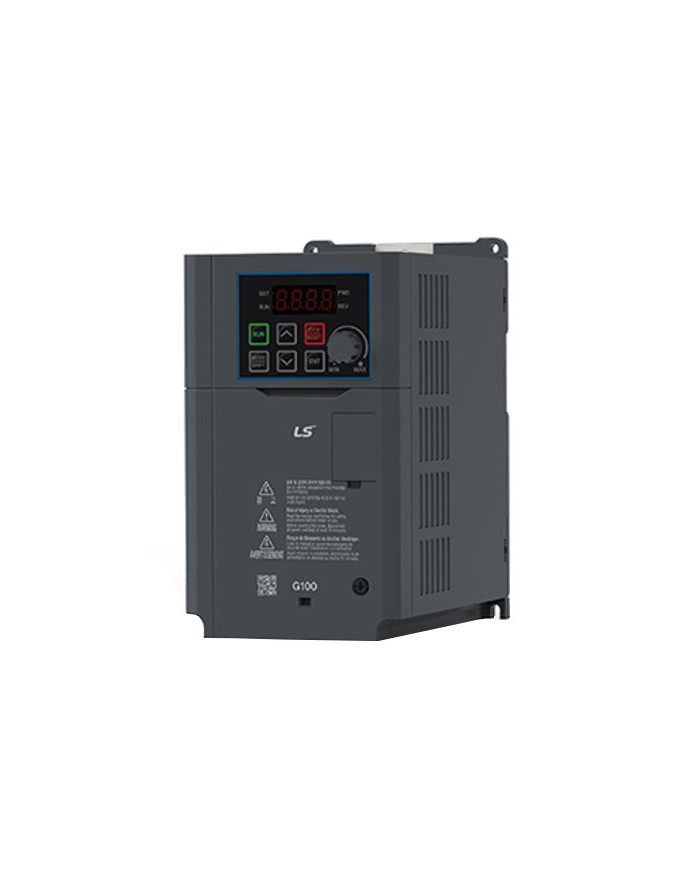

LS ELECTRIC LSLV-G100 General Purpose AC Drive 1.5kW/2.2kW 380-480V

The LS ELECTRIC LSLV-G100 is a versatile and robust general-purpose AC drive designed for a wide range of industrial applications. This model, LV0015G100-4EOFN, offers dual power ratings, making it suitable for both heavy-duty and normal-duty operations, ensuring flexibility and efficiency in your motor control systems.

• Dual Rating: Supports both 1.5kW (Heavy Duty) and 2.2kW (Normal Duty) operations.
• Wide Input Voltage: Operates with a 3-Phase 380-480V AC input, accommodating variations from -15% to +10%.
• Built-in EMC Filter: Includes a C3 filter to minimize electromagnetic interference in industrial environments.
• Sensorless Vector Control: Provides enhanced motor control and performance without the need for encoders.
• RS485 Communication: Features a built-in RS485 interface with MODBUS RTU protocol for seamless integration with control systems.
• Flexible I/O: Equipped with 5 programmable digital inputs, analog inputs (0-10Vdc, 4-20mA), 2 programmable relay outputs, and 1 programmable analog output (0-10Vdc).
• PID Control: Integrated PID controller for process control applications.
• Braking Module: Includes a built-in braking chopper for dynamic braking.
• Compact Design: Dimensions of 100 mm x 167 mm x 150.5 mm allow for easy installation in tight spaces.
• Overload Protection: Supports 150% overload for 60 seconds in Heavy Duty mode and 120% overload for 60 seconds in Normal Duty mode.
• DIN Rail Mounting: Designed for convenient DIN rail mounting.
• Operating Temperature Range: Functions reliably in temperatures from -10°C to +50°C.

The LS ELECTRIC LSLV-G100 series is engineered to deliver reliable performance and easy integration, featuring user-friendly parameterization and a robust design suitable for harsh industrial environments. Its compliance with UL 61800-5-1 standards ensures safety and quality. Whether you need precise motor control for heavy machinery or efficient operation for standard applications, the LSLV-G100 provides a versatile and cost-effective solution.
