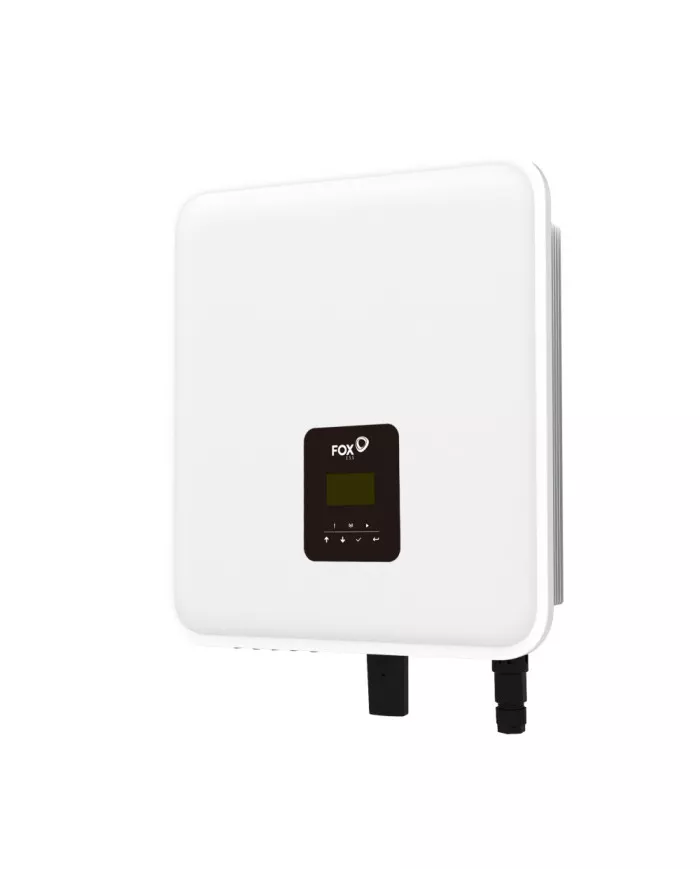

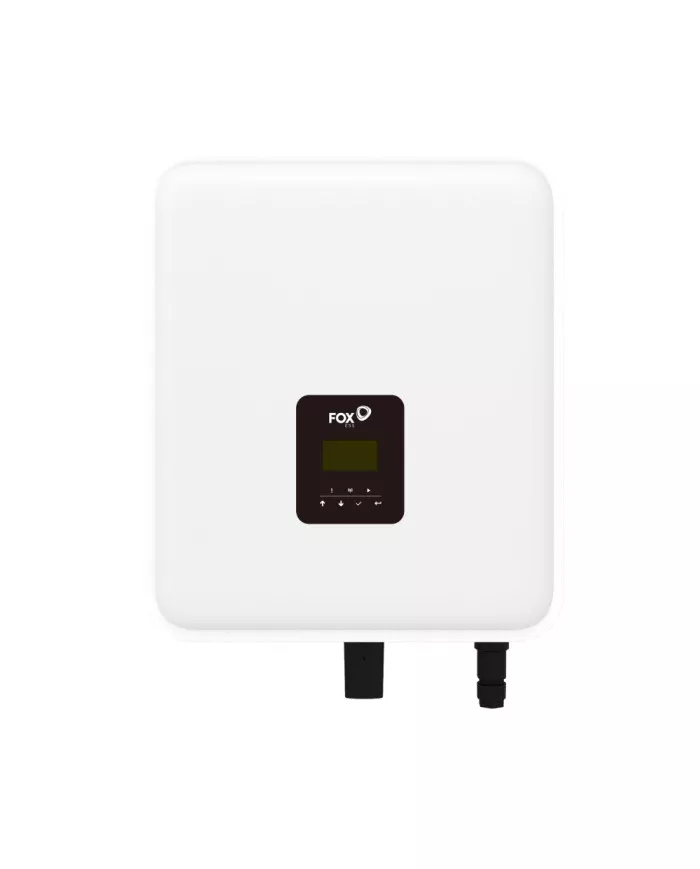

FoxESS H3-12.0-E

The FoxESS H3-12.0-E is a cutting-edge, hybrid three-phase inverter/charger designed for modern energy solutions. This transformerless system offers a robust performance with a maximum input power of 16,000 W and a nominal output power of 12,000 W, making it ideal for both residential and commercial applications. It features advanced MPPT technology, ensuring optimal energy conversion with an impressive efficiency of 99.90%.

• Model: FoxESS H3-12.0-E
• Type: Trójfazowy falownik hybrydowy/ładowarka AC
• Max Input Power: 16,000 W
• Nominal Output Power: 12,000 W
• Max Apparent Power: 16,000 VA
• Operational Voltage Range: 180-600 V
• Nominal AC Voltage: 400V/230VAC; 380V/220VAC
• Nominal AC Frequency: 50 / 60 Hz, ±5
• Max Output Current (per phase): 24.2 A
• Max Input Current (per phase): 22.7 A
• Max Apparent Power AC: 15,000 VA
• Current Factor: 1 (adjustable from 0.8 leading to 0.8 lagging)
• Max Current: 45 A
• Switching Time: <20 ms
• Battery Type: Lithium (LiFePO4)
• Maximum Efficiency: 98.00%
• Communication: WiFi, Ethernet, GSM (planned), CAN/RS485
• Display: LCD, Mobile App, Web Interface
• Remote Management: Yes
• IP Rating: IP65
• Cooling System: Natural/Convection
• Dimensions: 449 mm x 519 mm x 198 mm
• Weight: 28 kg
• Mounting: Wall-mounted
• Temperature Range: -25 to 60 °C
• Expandability: Easily expandable with additional FoxESS battery modules
• Warranty: 10 years

The FoxESS H3-12.0-E stands out with its versatile output configuration, offering 230/400 Vac at 50/60 Hz, and maintaining a low THDI of <3% at nominal power. It supports dual MPPTs with a wide range, ensuring efficient energy harvesting even in varying conditions. With remote management capabilities and a secure IP65 rating, this inverter/charger is designed for reliable, long-term operation. Its natural convection cooling system, combined with a sleek design, makes it both efficient and easy to integrate into existing setups. Choose the FoxESS H3-12.0-E for a sustainable and efficient energy solution tailored to your needs.
