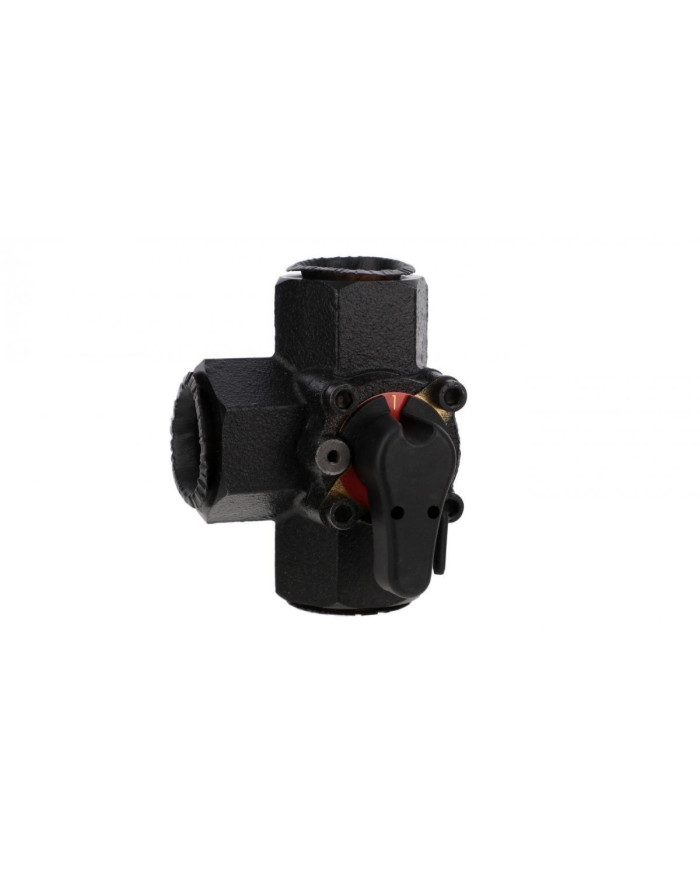

3-Way Rotary Mixing Valve DN25 Kvs 10.0 Honeywell V5433M6325 with Actuator

The Honeywell V5433M6325 is a complete 3-way rotary mixing valve solution, designed for precise control of water temperature in heating and air conditioning systems. This assembly combines the robust V5433A series valve with the reliable M6063L1009 actuator, ensuring efficient and accurate temperature management. This valve is designed for use in systems that require precise mixing of fluids to achieve a desired temperature, enhancing overall system performance and energy efficiency.

• Accurate Temperature Control: Ensures precise mixing of fluids for optimal supply water temperature.
• DN25 Nominal Diameter: Standard 25 mm connection size for easy integration into existing systems.
• Kvs 10.0 m³/h: Provides a flow rate of 10 cubic meters per hour, suitable for a wide range of applications.
• PN6 Pressure Rating: Capable of handling up to 6 bar (600 kPa) of pressure.
• 230V 3-Point Control: Operates on a standard 230V power supply with a 3-point control signal for accurate positioning.
• M6063L1009 Actuator: Offers 7 Nm of torque and a 100-second run time for a 90° stroke.
• Wide Media Compatibility: Suitable for heating water (VDI 2035) and glycol water mixtures up to 50%.
• Durable Construction: Cast iron body and chrome-plated internals ensure long-lasting performance.
• Replaceable Actuator: The actuator can be replaced without draining the system, simplifying maintenance.
• Medium Temperature Range: Operates efficiently between 2 to 110 °C.
• Low Leakage Rate: Maintains a leakage rate of less than 1% of kVS for efficient operation.
• Compact Design: Space-saving design for easy installation in tight spaces.
• Corrosion Protection: Enhanced protection against corrosion for extended lifespan.

The Honeywell V5433M6325 mixing valve is engineered for durability and reliability, featuring a sturdy cast iron body and chrome-plated internals. With its precise control capabilities and robust design, this valve is an excellent choice for maintaining optimal temperatures in heating and cooling systems. Its ease of maintenance and wide range of applications make it a valuable component for any modern HVAC setup.
