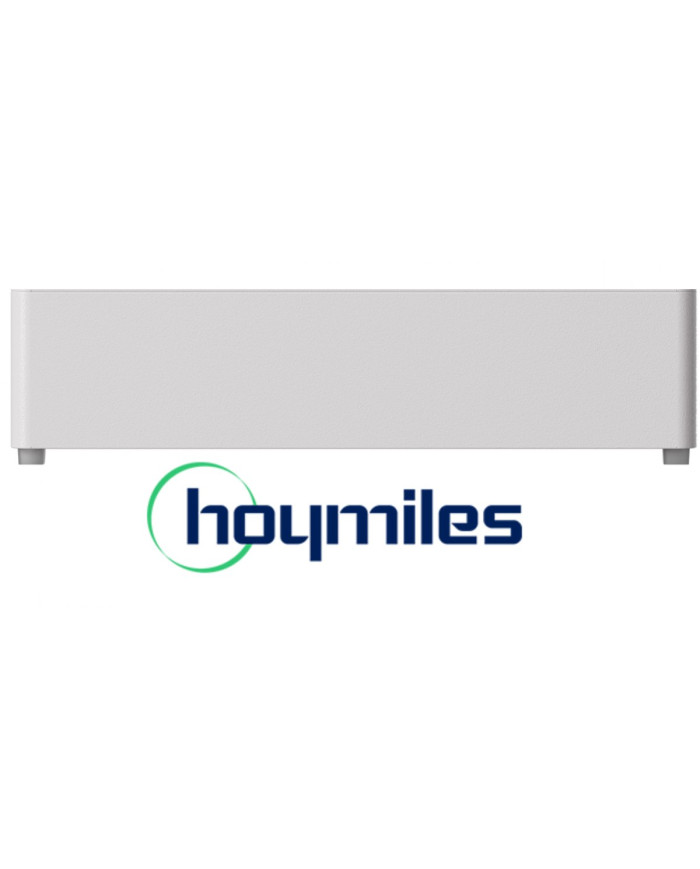

Hoymiles HB-3S-G2 High-Voltage Battery System 11.52 kWh with Base

The Hoymiles HB-3S-G2 is a high-voltage battery system designed for efficient and reliable energy storage. With a total capacity of 11.52 kWh, this system comprises three 3.84 kWh modules, offering a flexible and scalable solution for residential and commercial applications.

• Total Capacity: 11.52 kWh (3 x 3.84 kWh modules)
• Battery Type: Safe and long-lasting LiFePO4 (LFP) chemistry
• Nominal Voltage: 230.4 V, ensuring efficient energy transfer
• Cycle Life: Over 6000 cycles at 90% Depth of Discharge (DoD)
• Protection: IP65 rated for both indoor and outdoor installations
• Expandable: Stackable design allows for capacity expansion up to 23.04 kWh
• Module Dimensions: Approximately 650 mm (L) x 300 mm (W) x 170 mm (H) per module
• Weight: Approximately 40 kg per module
• Temperature Range: Charging from 0 to +50 °C, discharging from -10 to +50 °C
• Cooling: Natural convection cooling for silent and reliable operation
• Communication: CAN / RS485 interface for seamless integration with energy management systems
• Safety: Module-level fire protection for enhanced safety
• Monitoring: Supports remote monitoring via Hoymiles S-Miles Cloud app

This high-voltage battery features a stackable design with quick connectors, reducing installation time and complexity. The integrated Battery Management System (BMS) provides comprehensive protection against overcharge, deep discharge, and overtemperature, ensuring optimal performance and longevity. The Hoymiles HB-3S-G2 offers a reliable and efficient solution for your energy storage needs, backed by a robust design and advanced features.
