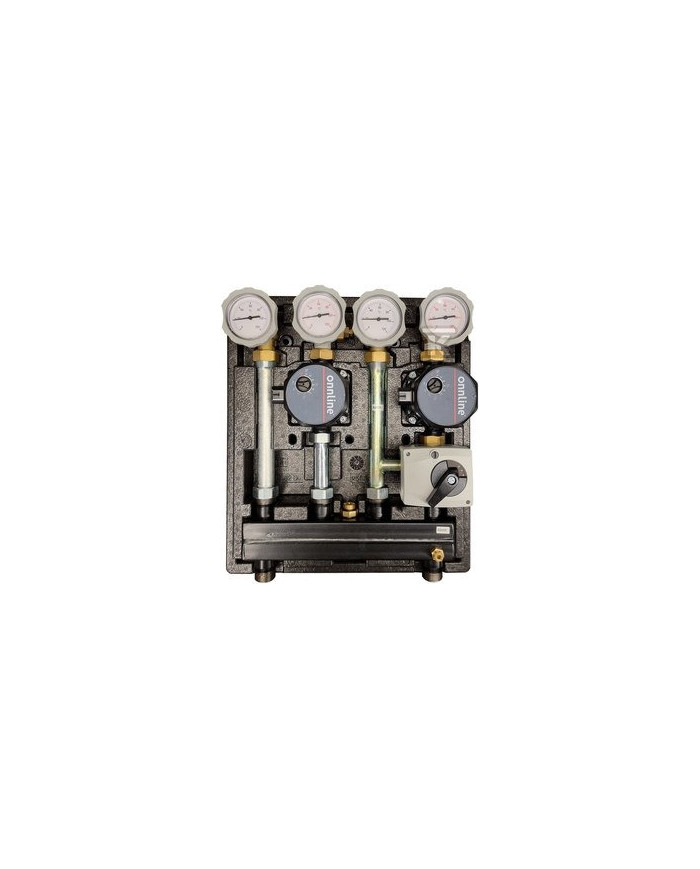

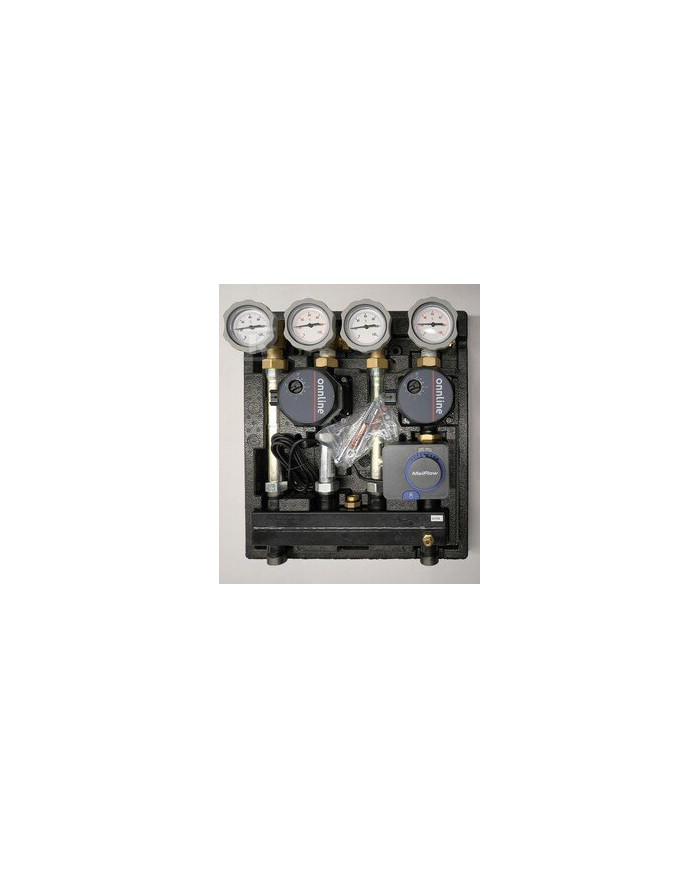

Onnline KOMBIMIX M26102.3PL - Pump Group 2 Circuits (1x Mixer, 1x Without Mixer)

Optimize your heating system with the Onnline KOMBIMIX M26102.3PL Pump Group, designed for efficient management of two separate heating circuits. This unit is perfectly suited for systems requiring both a mixed and unmixed circuit, such as setups with underfloor heating and traditional radiators. This pump group ensures reliable and effective water circulation, enhancing the overall performance and energy efficiency of your central heating system.

• Designed for two heating circuits: one with a mixer and one without.
• Ideal for systems combining underfloor heating and radiator circuits.
• Equipped with two Onnline 15/40-70/130 pumps (or equivalent) for reliable performance.
• Features a G1 mixing valve with a 230V actuator, ensuring precise temperature control.
• Includes four shut-off valves with integrated, manually adjustable non-return valves for easy maintenance.
• Fitted with four thermometers for accurate temperature monitoring across the system.
• Connections: 2 x G1 on the boiler side and 4 x G3/4 on the heating circuit side.
• Maximum liquid temperature: 90°C.
• Maximum operating pressure: 6 bar.
• Dimensions: 0.3 x 0.44 x 0.47 m.
• Weight: 14.76 kg.
• Series: KOMBIMIX, ensuring compatibility and performance within the Onnline range.

The Onnline KOMBIMIX pump group offers a streamlined solution for managing complex heating setups, providing both convenience and reliability. With its robust construction and comprehensive feature set, this pump group ensures that your heating system operates at peak efficiency, distributing heat effectively throughout your property. Trust Onnline's expertise to deliver a product that meets the demands of modern heating technology, backed by a 24-month warranty for added peace of mind.
