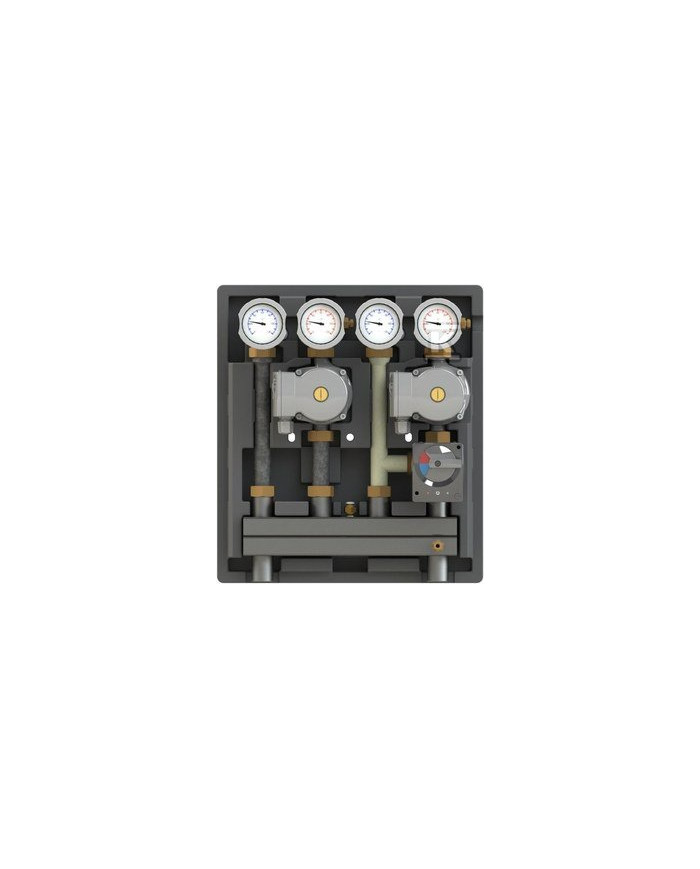

KOMBIMIX-ONNLINE Pump Group for 2 Circuits

The KOMBIMIX-ONNLINE pump group is designed to efficiently manage two separate heating circuits, offering flexibility and control for diverse heating system needs. This unit integrates advanced features to ensure optimal performance and ease of installation.

• Designed for dual heating circuits: Manages two independent heating zones efficiently.
• Integrated temperature regulation: One circuit features a mixer with integrated temperature control.
• Mixer/Non-Mixer configuration: Includes one circuit with a mixer and one without.
• High-efficiency pumps: Equipped with Dab EVOSTA 15/40-70/130 or equivalent pumps for optimal energy use.
• Thermal insulation: Fully removable casing with thermal insulation to minimize heat loss.
• Declaration of conformity: Ensures compliance with EU standards.
• Compact dimensions: Space-saving design with dimensions of 0.47 m x 0.41 m x 0.16 m.
• Durable construction: Weighs 14.5 kg with Teflon (PTFE) seals for longevity.
• Versatile connection options: Nominal connection diameters of 3/4 inch (20) and 1 inch (25).
• Warranty: Comes with a 24-month warranty for peace of mind.

The KOMBIMIX-ONNLINE pump group provides a reliable solution for managing complex heating systems with varying temperature requirements. With its integrated temperature regulation and high-efficiency pumps, this unit ensures energy-efficient operation and precise control. The inclusion of thermal insulation and a declaration of conformity further enhances its value, making it an ideal choice for modern heating installations.
