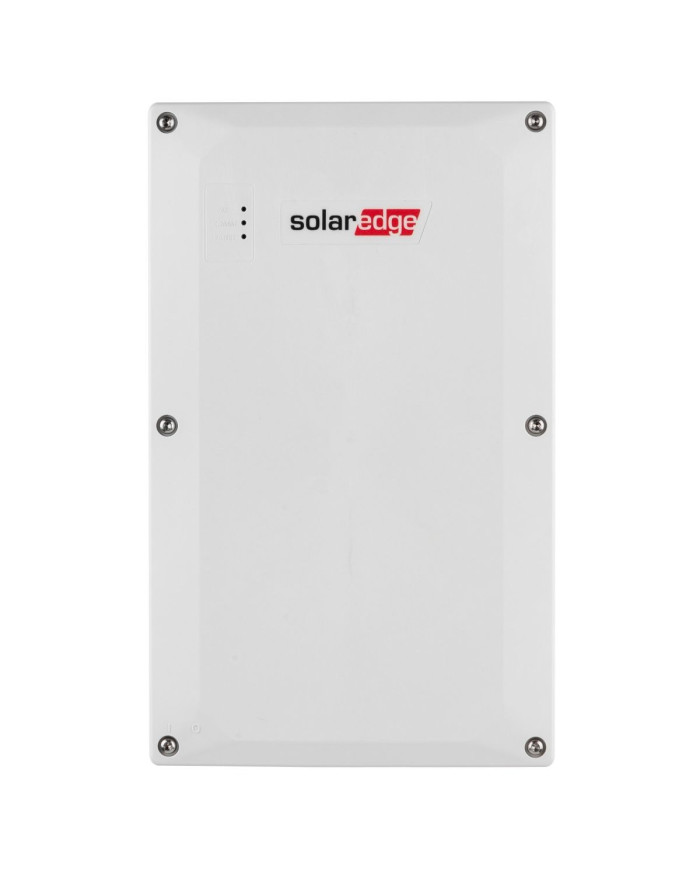

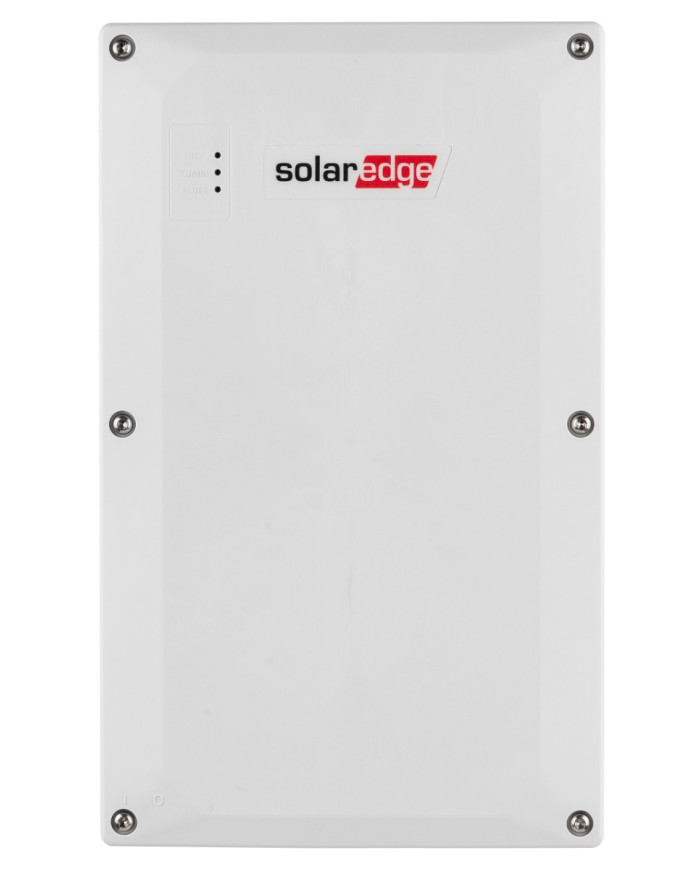

SolarEdge Home Backup Interface for 3-Phase SolarEdge Home Hub Inverter

The SolarEdge Home Backup Interface is designed to provide seamless backup power for your 3-phase SolarEdge Home Hub inverter system during grid outages. This device ensures that your essential home appliances and systems continue to operate when the grid fails, offering reliability and peace of mind.

• Seamless Backup Power: Automatically switches to backup power during grid interruptions.
• Wide AC Current Input Range: Supports AC current inputs ranging from 3-63 A.
• Fast Switchover Time: Grid to off-grid switchover time of less than 20 ms.
• High AC Current Output: Provides a maximum AC current output of 264 A to the consumption panel.
• Communication Inputs: Features one communication input for system integration.
• Wide Operating Temperature Range: Operates reliably in temperatures from -25 to +55 °C.
• LED Indicators: Includes LED indicators for Backup, Communication, and Fault status.
• Manual Override: Allows manual switching between grid-connected and backup modes.
• Compact Dimensions: Dimensions of 390 x 238 x 147 mm make it easy to install.
• Lightweight Design: Weighs less than 15 kg, simplifying installation.
• Warranty: Comes with a 12-year warranty.
• Compliance: Complies with safety standards IEC/EN 62109-1 and EMC standards IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4.

The SolarEdge Home Backup Interface offers a robust and efficient solution for maintaining power during grid outages, ensuring your home remains functional and secure. With its advanced features, compliance with international standards, and seamless integration with the SolarEdge Home Hub, this backup interface is an essential addition to any modern solar power system. This device provides flexibility in load management, allowing you to back up either the entire home or selected loads, enhancing energy independence and security.
