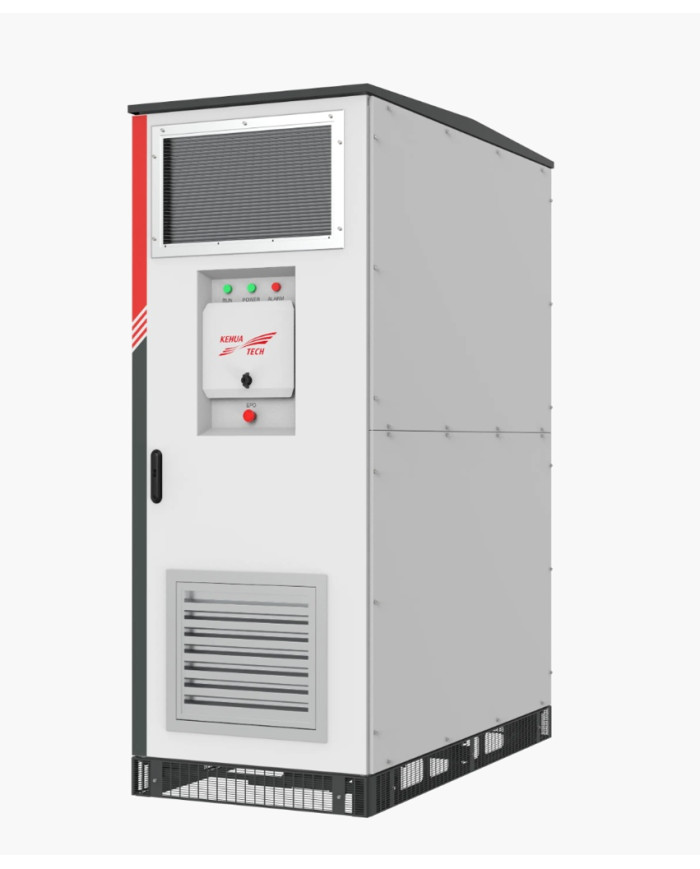

KEHUA BCS 1500K-B-HUD 1500Vdc Energy Storage Converter

The KEHUA BCS 1500K-B-HUD is a cutting-edge Energy Storage Converter (PCS) designed for large-scale energy storage systems, ensuring efficient and reliable power conversion. Manufactured by Kehua Digital Energy, a trusted name in power solutions since 1988, this converter is engineered for optimal performance and adaptability in diverse grid environments.

• High DC Input Voltage: Supports a maximum DC voltage of 1500Vdc, optimizing energy storage efficiency.
• Powerful AC Output: Delivers a rated AC output power of 1500kW and a maximum of 1650kVA.
• Grid Flexibility: Compatible with both 50Hz and 60Hz grids, offering versatility in different regions.
• Off-Grid Capability: Features a rated AC output voltage of 600Vac (or 690Vac), ensuring stable power supply even when disconnected from the main grid.
• Exceptional Efficiency: Achieves a maximum efficiency of 99%, minimizing energy loss during conversion.
• Advanced Control Functions: Supports VSG, PQ, VF, and black-start functions for enhanced grid management.
• H/LVRT Function: Equipped with High/Low Voltage Ride-Through capability, ensuring high grid adaptation ability.
• Robust Protection: Includes on-line insulation detection for enhanced safety and reliability.
• Environmental Adaptability: Designed to operate in extreme conditions, with an operation temperature range of -35ºC to 60ºC (with derating above 45ºC).
• Smart Monitoring: Features cell status monitoring for comprehensive system oversight.
• Compact Design: Efficient layout to improve space utilization, making it suitable for various installation environments.
• Advanced Communication: Supports Modbus-RTU, Modbus-TCP, IEC61850, and IEC104 communication protocols for seamless integration with existing systems.

With its robust design and advanced features, the KEHUA BCS 1500K-B-HUD is an ideal solution for peak shaving, frequency modulation, and auxiliary grid connection for new energy systems. Its ability to support multi-machine parallel connections and its adaptability to extreme environments make it a reliable choice for demanding applications. The converter complies with industry standards such as IEC62477-1 and EN61000, ensuring top-tier performance and safety.
