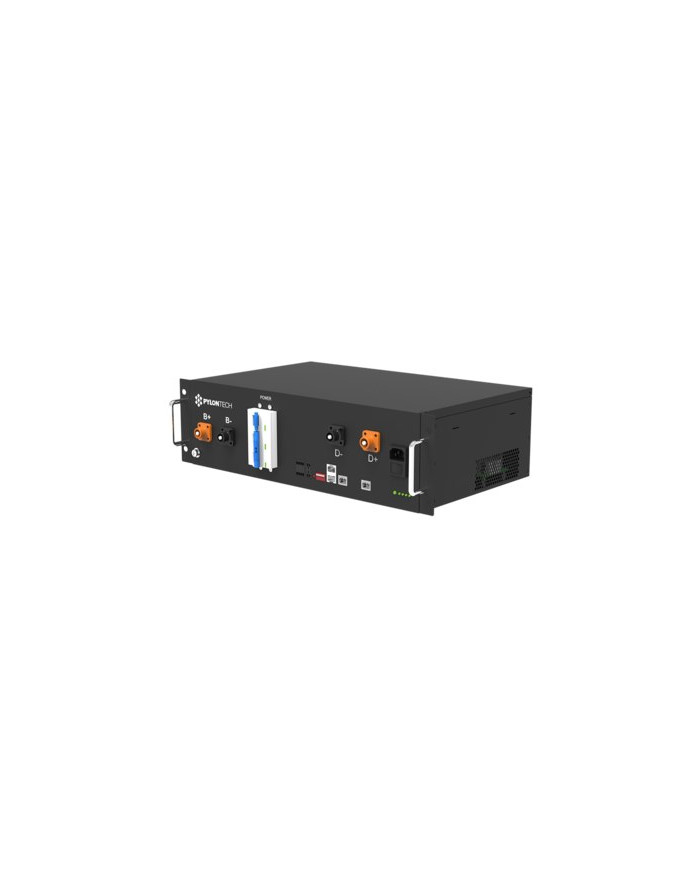

Pylontech SC1000-100S BMS

The Pylontech SC1000-100S BMS is an advanced battery management system designed to optimize the performance and longevity of your energy storage solutions. Perfectly suited for use with the PowerCube-H1, this BMS ensures safe and efficient operation with a focus on comprehensive protection and monitoring capabilities.

• Model: Pylontech SC1000-100S BMS
• Related Product: Designed for seamless integration with the PowerCube-H1.
• Controller Working Voltage: Operates within a wide voltage range of 200~1000 Vdc.
• System Operation Voltage: Matches the controller, functioning effectively between 200~1000 Vdc.
• Max. Charge/Discharge Current: Capable of handling up to 100A for both charging and discharging.
• Self-consumption Power: Minimal energy usage with a self-consumption of just 8W.
• Dimension: Compact design with dimensions of 442*390*132 mm (W*D*H).
• Communication: Equipped with Modbus RTU/CAN for reliable data transmission.
• Protection Class: IP20 rated, ensuring protection against solid objects.
• Operation Life: Long-lasting with an expected operation life of 15+ years.
• Comprehensive Protection: Includes charge/discharge end, over voltage, over current, and temperature protections.
• Advanced Monitoring: Administrator access to monitor current, voltage, temperature, SOC & SOH.

The Pylontech SC1000-100S BMS also offers intelligent features such as cell balancing, intelligent charge model, and capacity retention calculation, enhancing overall system efficiency and reliability. Backed by a 7-year warranty, this BMS guarantees a minimum of 55% of nominal capacity remains at the end of the warranty period, making it a dependable choice for your energy storage needs. With its robust design and comprehensive features, the Pylontech SC1000-100S BMS is an excellent addition to any modern energy system.
