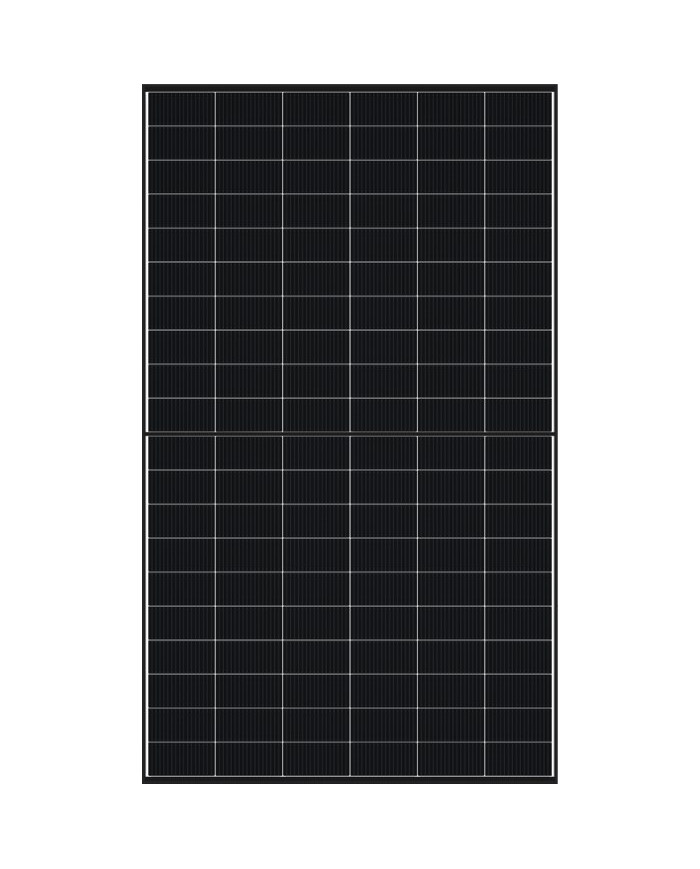

DMEGC DM500M10RT-B60HBT 500W Bifacial Double Glass Module

The DMEGC DM500M10RT-B60HBT is a state-of-the-art bifacial double glass PV module designed for optimal energy generation and long-term reliability. Featuring advanced N-type TOPCon cell technology and a robust construction, this module is an excellent choice for residential, commercial, and industrial solar installations.

• Bifacial Design: Captures sunlight from both front and rear surfaces, boosting energy yield by up to 25% through reflected radiation.
• N-Type TOPCon Cells: Utilizes advanced N-type Monocrystalline TOPCon cells for high efficiency, minimal degradation, and superior temperature stability.
• Double Glass Construction: Provides enhanced durability and resistance against harsh weather conditions and mechanical stress, ensuring long-lasting performance.
• High Power Output: Delivers a nominal power of 500W, maximizing energy production from a single module.
• Excellent Efficiency: Achieves a module efficiency of 21.51% under Standard Test Conditions (STC).
• Superior Temperature Performance: Maintains optimal output even in high-temperature environments, thanks to an optimized temperature coefficient of -0.29%/°C for Pmax.
• Low Irradiation Performance: Performs exceptionally well under low light conditions, such as dawn, dusk, and cloudy days.
• Half-Cut Cell Technology: Employs 120 half-cut cells (6x20 configuration) to reduce internal losses and improve shade tolerance.
• Robust Build: Features a black anodized aluminium alloy frame and 2.0 mm heat-strengthened glass on both the front and rear for added protection.
• Certified Quality: Manufactured under stringent quality standards and certified for ESG compliance, including SA 8000 (ILO standards).
• Long-Term Warranty: Backed by a 25-year product warranty and a 30-year linear power warranty, ensuring long-term reliability and performance.
• High System Voltage: Capable of operating at a maximum system voltage of 1500 V DC (IEC).
• Mechanical Load Resistance: Engineered to withstand front loads of up to 5400 Pa and rear loads of up to 2400 Pa.

The DMEGC DM500M10RT-B60HBT module combines innovative technology with robust construction to deliver exceptional performance and reliability. Its bifacial design, N-type TOPCon cells, and double glass structure make it a top choice for maximizing energy generation and ensuring long-term durability. Invest in the future of solar energy with DMEGC, a Tier 1 manufacturer with over 40 years of expertise.
