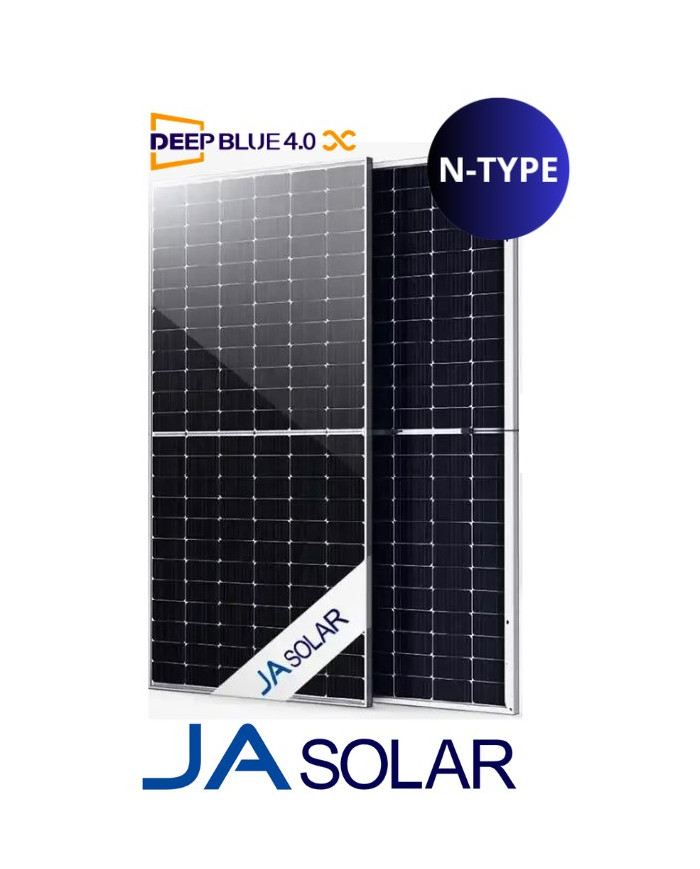

JA Solar JAM72D42-635W/LB Deep Blue 4.0 N-Type Bifacial DG Silver Frame

The JA Solar JAM72D42-635W/LB Deep Blue 4.0 is a state-of-the-art N-Type Bifacial Double Glass Monocrystalline Solar Module, designed for superior performance and durability. Featuring a sleek silver frame, this module is engineered to maximize energy yield and reduce the Levelized Cost of Energy (LCOE).

• High Power Output: Delivers up to 635W of maximum power (Pmax), ensuring efficient energy conversion.
• N-Type Cell Technology: Utilizes N-Type monocrystalline cells with very low Light Induced Degradation (LID) for consistent performance over time.
• Bifacial Design: Generates power from both the front and rear sides, increasing overall energy production.
• Double Glass Construction: Features 2.0 mm tempered glass on both the front and rear, providing enhanced durability and protection against environmental factors.
• Multi-Busbar (MBB) Technology: Incorporates 16BB half-cut cells to reduce internal power losses and improve performance.
• Excellent Temperature Coefficient: Maintains high performance even in varying temperature conditions, with a Pmax temperature coefficient of -0.300 %/°C.
• High Mechanical Load Resistance: Withstands mechanical loads of up to 5400 Pa on the front and 2400 Pa on the rear.
• IP68 Rated Junction Box: Ensures enhanced reliability with an IP68 rated junction box, equipped with 3 bypass diodes.
• Long-Term Warranty: Comes with a 12-year product warranty and a 30-year linear power output warranty (1% degradation in the first year, followed by 0.4% annual degradation).
• Dimensions: 2465 mm x 1134 mm x 35 mm

With its advanced N-Type cell technology and bifacial double-glass construction, the JA Solar JAM72D42-635W/LB Deep Blue 4.0 module offers outstanding performance and long-term reliability. Its high power output, excellent temperature coefficient, and robust design make it an ideal choice for a wide range of solar energy applications. Compatible with MC4 EVO2 connectors and Nextracker systems, this module is designed for easy integration and optimal energy generation, ensuring a high return on investment.
