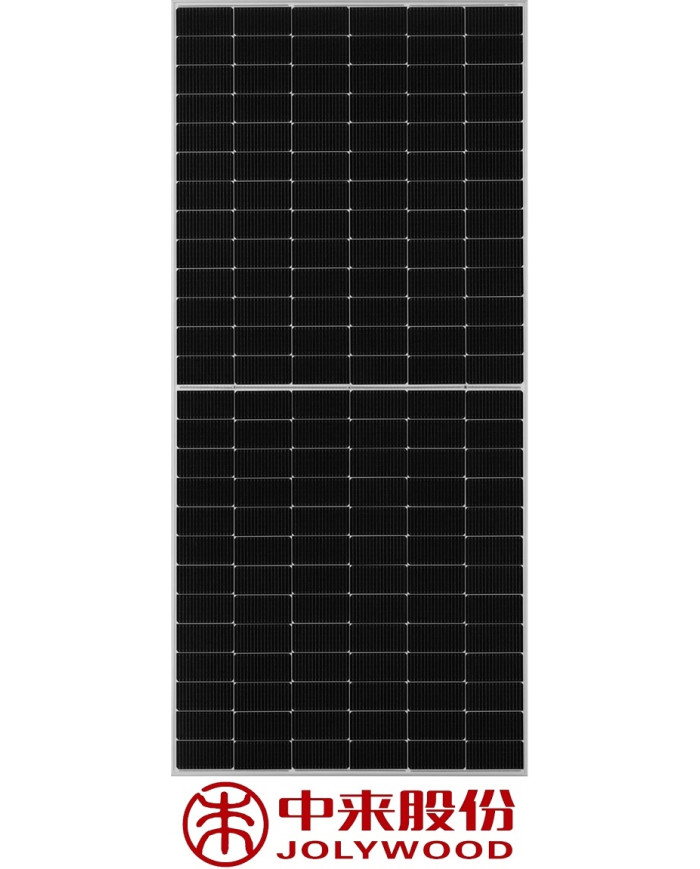

Jolywood JW-HD-132N-620W Bifacial (N-type)

The Jolywood JW-HD-132N-620W Bifacial (N-type) module redefines solar energy efficiency and performance. This cutting-edge solar panel leverages advanced N-type cell technology to deliver exceptional power output and reliability.

• Maximum Power Output: Up to 620W, ensuring high energy yield.
• Maximum Efficiency: An impressive 23.14%, maximizing energy conversion.
• N-type Bifacial Dual Glass Mono Cells: Captures sunlight from both sides, boosting overall power generation.
• Dimensions: 2382mm×1134mm×30mm, optimized for various installation scenarios.
• Anodized Aluminum Alloy Frame: Provides robust support and durability.
• Tempered Glass: 2mm+2mm front and rear glass for enhanced protection.
• Power Output Tolerance: 0~+3%, guaranteeing reliable performance.
• Open Circuit Voltage (Voc): 40.57 V (STC)
• Short Circuit Current (Isc): 14.74 A (STC)
• MPP Voltage (Vmp): 36.65 V (STC)
• MPP Current (Imp): 14.80 A (STC)
• Temperature Coefficient of Pmax: -0.34%/°C, ensuring stable output in varying temperatures.
• High Durability: Capable of withstanding snow loads up to 5400Pa and wind loads up to 2400Pa.

With its exceptional bifacial design and high-efficiency N-type cells, the Jolywood JW-HD-132N-620W offers superior energy production and long-term reliability. Ideal for both residential and commercial installations, this module is engineered to deliver maximum performance and withstand harsh environmental conditions, making it a top choice for sustainable energy solutions. This panel is designed to provide lasting value and contribute to a greener future.
