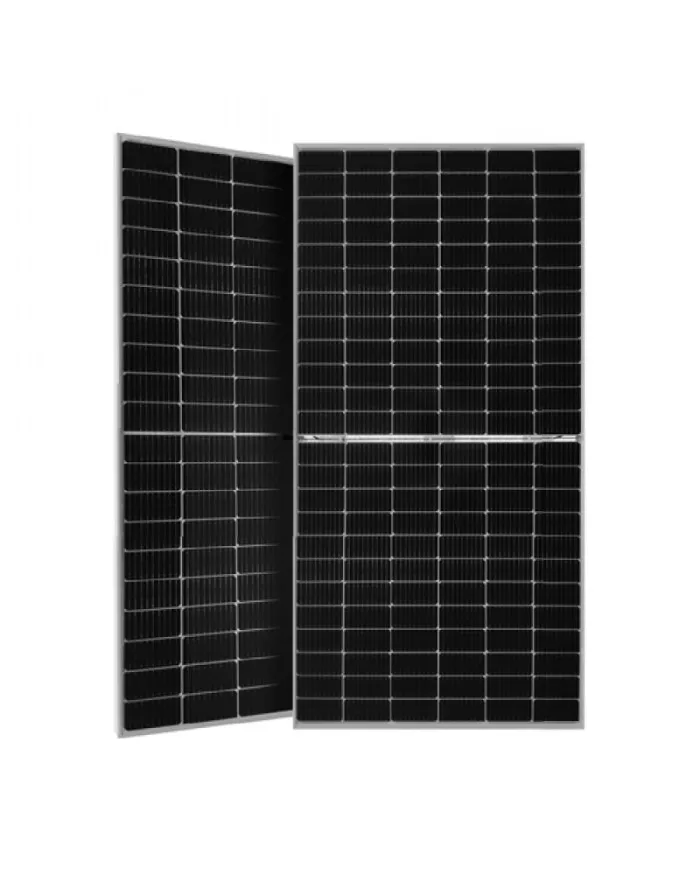

Jinko Solar Tiger Pro 550W Bifacial - JKM550M-72HL4-BDVP Silver Frame

Introducing the Jinko Solar Tiger Pro 550W Bifacial - JKM550M-72HL4-BDVP Silver Frame, a high-efficiency solar module designed to deliver exceptional performance for both residential and commercial applications. Crafted with cutting-edge technology, this module stands out in the realm of solar energy solutions.

• Product Name: Jinko Solar 550W Bifacial - JKM550M-72HL4-BDVP SF
• Type: Bifacial Solar Module
• Maximum Power Output (Pmax): 550W
• Technology: Monocrystalline P-type
• Number of Cells: 144 (72x2)
• Dimensions: 2278 mm x 1134 mm x 40 mm (89.7 in x 44.5 in x 1.6 in)
• Weight: 32 kg (70.55 lbs)
• Glass Type: 2.0 mm, tempered, anti-reflective
• Frame: Anodized aluminum alloy
• Junction Box: IP68 rated
• Output Cables Length: (+) 400 mm, (-) 200 mm
• Maximum System Voltage: 1500 V DC (IEC)
• Maximum Series Fuse Rating: 30 A
• Temperature Coefficients: Pmax: -0.30%/°C, Voc: -0.25%/°C, Isc: 0.046%/°C
• Nominal Operating Cell Temperature (NOCT): 45.2°C
• Efficiency: 21.29% (STC)
• Bifacial Gain: Up to 25% additional energy generation
• Warranty: 12-year product warranty, 30-year linear power output warranty, 0.45% annual degradation over 30 years
• Certifications: CE, IEC 61215, IEC 61730, ISO 9001, ISO 14001, ISO 45001

The Jinko Solar Tiger Pro 550W Bifacial module is engineered with multiple high-tech features such as dual-glass technology, multi-busbar technology, and Hot 2.0 technology, ensuring enhanced reliability and lesser degradation. Its advanced SMBB technology optimizes light capture and energy storage, offering a higher power output potential of up to 570W in certain conditions. The module is rigorously tested for mechanical load resistance, withstanding 2400 Pa (wind) and 5400 Pa (snow). Its bifacial design provides up to 25% additional energy generation, making it ideal for a variety of applications including residential, commercial, and utility-scale projects. With its comprehensive 30-year linear power output warranty and ISO certifications, this module represents Jinko Solar's unwavering commitment to quality and performance. Its compatibility with various mounting systems and availability of robust technical support make it a versatile choice in the solar energy market.
