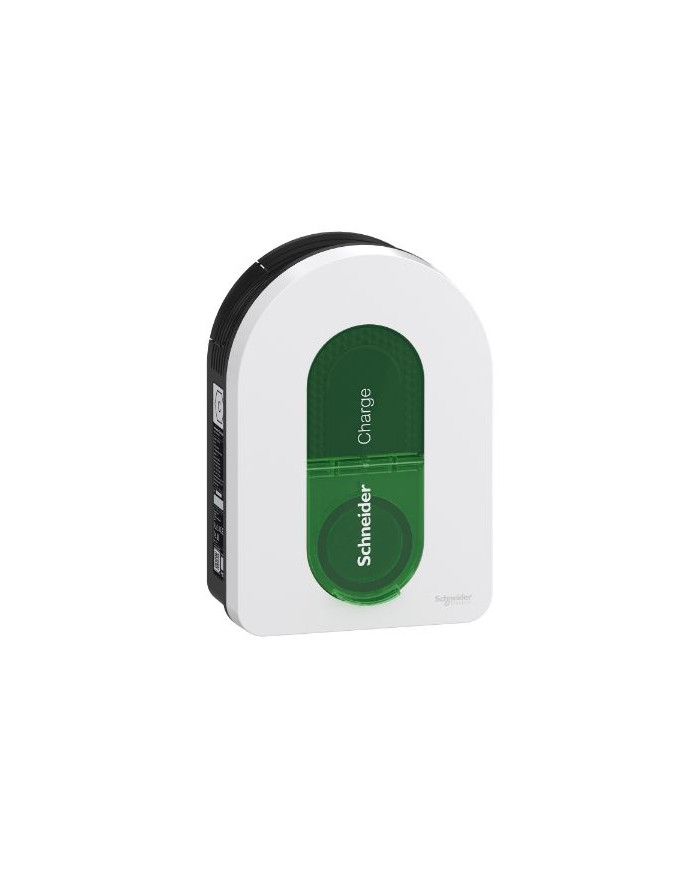

Schneider EVH5A22N2S EV Charging Station, 7.4/11/22kW, Type 2 Socket

Discover the Schneider EVH5A22N2S, a versatile and robust wall-mounted electric vehicle charging station, designed to meet your home charging needs. This charging station offers multiple power output options and advanced protection features, ensuring a safe and efficient charging experience for your electric vehicle. Perfect for both single-phase and three-phase electrical systems, this unit provides a reliable solution for EV owners.

• Multiple Power Output Options: Supports 7.4 kW (32 A, 1-phase), 11 kW (16 A, 3-phase), and 22 kW (32 A, 3-phase) to match your EV's charging capabilities and electrical system.
• Type 2 Socket (T2S): Equipped with a Type 2 socket with a shuttered front face, providing a secure and universal connection for most electric vehicles.
• Wall-Mounted Design: Space-saving wall-mounted design, ideal for home garages or external walls.
• Single-Phase and Three-Phase Compatibility: Supports both 1P+N (single-phase) and 3P+N (three-phase) electrical systems.
• Robust Protection: Features IP55 protection against dust and water jets, and IK10 mechanical impact protection, ensuring durability in various environments.
• Built-in RDC-DD: Integrated Residual Direct Current Detecting Device (RDC-DD) and earth-leakage protection for enhanced safety.
• Smart Connectivity: Includes Wi-Fi and Ethernet (RJ45) connectivity, with support for OCPP 1.6 protocol, allowing connection to the Schneider Electric Wiser app or third-party cloud platforms.
• Remote Monitoring and Control: Compatible with the Schneider Electric Wiser mobile application for remote start, monitoring, and control of your EV charging.
• Dynamic Energy Management: Features a dry contact input for dynamic energy management, enabling real-time adjustment of power allocated to the EV based on household consumption.
• LED Status Indicators: LED indicators (red, green, blue) provide clear status indication during charging.
• Wide Operating Temperature Range: Operates reliably in temperatures from -30°C to 45°C.
• Certified Quality: Compliant with EN 61851, IEC 61851-1, EN 61000-6-1, EN 61000-6-3, REACH, and RoHS standards.

The Schneider EVH5A22N2S charging station combines performance, safety, and smart connectivity in a compact and easy-to-install design. With its versatile power output options and robust protection features, it’s an excellent choice for residential EV charging. This wall-mounted unit ensures that your electric vehicle is always ready to go, offering convenience and peace of mind with every charge.
