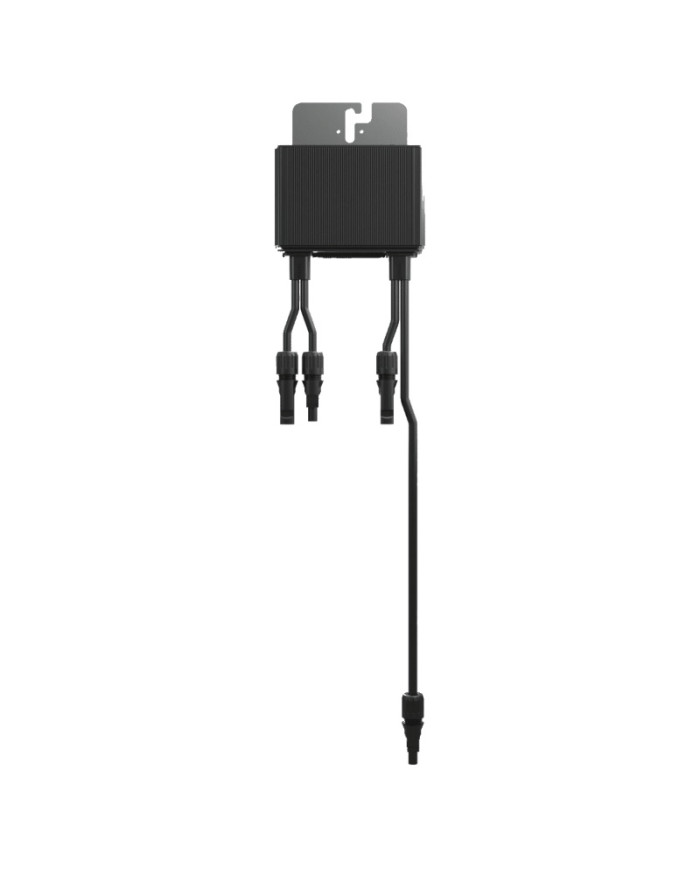

SolarEdge S1000-1GM4MBT-NA01 (Extended Cable Version)

The SolarEdge S1000 Commercial Power Optimizer (1GM4MBT-NA01) with extended cable is a cutting-edge solution for maximizing the efficiency and safety of commercial solar installations. Designed for high-power PV modules, this optimizer ensures optimal energy production while offering advanced safety features and simplified installation.

• Module-Level MPPT: Maximizes energy harvest from each PV module by independently tracking the maximum power point, mitigating losses due to shading, soiling, or module aging.
• SafeDC™ Technology: Enhances safety by automatically reducing DC voltage to safe levels during inverter shutdown or grid outages.
• Sense Connect Technology: Continuously monitors connector temperature, preventing potential arc faults caused by overheating or poor connections.
• Dual-Panel Optimization: Supports connection of two high-power PV modules (up to 500W each), reducing the number of optimizers needed.
• High Compatibility: Compatible with high-power and bifacial PV modules.
• Flexible System Design: Enables longer string lengths, mixed module orientations, and different panel types within the same string, reducing BOS costs.
• Module-Level Monitoring: Allows for precise fault detection and remote troubleshooting, simplifying maintenance and operation.
• Easy Installation: Designed for single-bolt mounting and simplified cable management.
• Extended Cable Version: Features a longer output cable (4.7m) for enhanced installation flexibility.
• Rated Input DC Power: 1000 W, supporting two PV modules up to 500W each.
• High Efficiency: Maximum efficiency of 99.5% and weighted efficiency of 98.8%.
• Robust Protection: IP68 / NEMA 6P protection degree ensures durability in harsh environmental conditions.
• Wide Operating Temperature: Operates reliably in temperatures ranging from -40 to +85ºC.

The SolarEdge S1000 power optimizer is engineered to enhance the performance and safety of commercial solar arrays. With its module-level MPPT, SafeDC™ technology, and robust design, it ensures maximum energy yield and long-term reliability. The extended cable version provides additional flexibility for complex installations, making it an ideal choice for demanding commercial projects.
