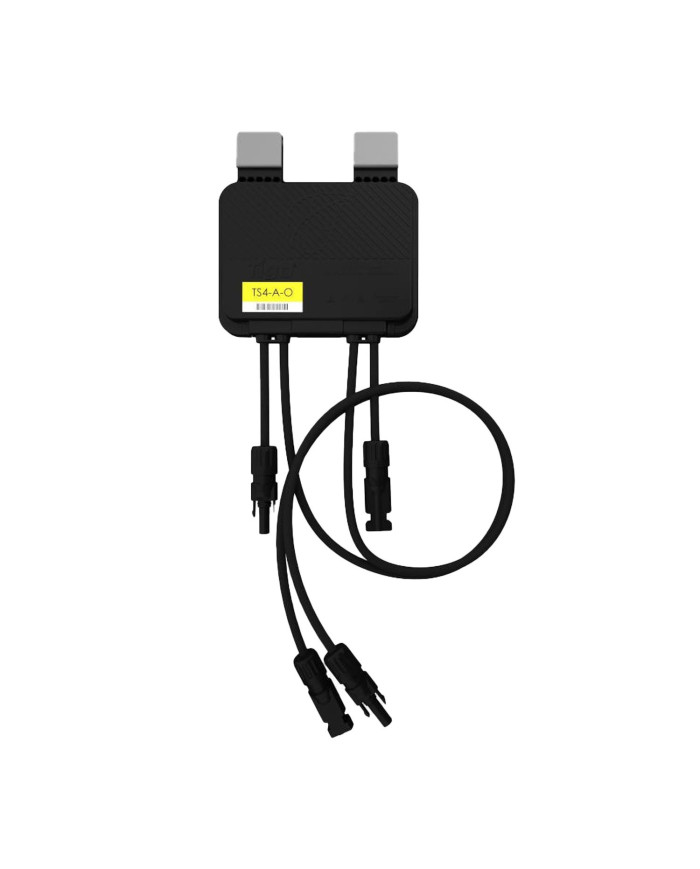

Tigo Energy TS4-A-O Power Optimizer 700W, 15A, MC4/EVO2, F25024

The Tigo TS4-A-O (Optimization) Module-Level Power Optimizer is designed to maximize the performance and safety of your photovoltaic (PV) systems. This advanced optimizer offers module-level optimization, monitoring, and rapid shutdown capabilities, ensuring increased energy production and enhanced safety compliance.

• Optimization: Module-level optimization increases energy yield and provides greater design flexibility.
• Maximum Power: Supports up to 700W (IEC) (or 725W UL) maximum power per module.
• Wide Input Voltage Range: Operates within an input voltage range (VMP) of 16V to 80V.
• High Input Current: Handles a maximum input current (IMP/ISC) of 15A.
• Connector Compatibility: Compatible with MC4 and EVO2 connectors for easy integration.
• Rapid Shutdown: Compliant with NEC 2014, 2017, and 2020 rapid shutdown requirements for enhanced safety.
• Monitoring: Offers module-level monitoring for energy production tracking and system management (requires Tigo Access Point (TAP) and Cloud Connect Advanced (CCA)).
• Predictive IV Technology (PIV): Delivers superior performance through advanced PIV technology.
• Selective Deployment: Allows for selective deployment, optimizing only the panels that require it.
• Environmental Resilience: Features an IP68 outdoor protection rating, making it water and corrosion-resistant.
• Easy Installation: Snaps easily to a standard PV module frame or mounts to racking.
• Broad Compatibility: Compatible with thousands of different inverter models from over 50 inverter brands.
• Extended Warranty: Comes with a 25-year warranty after registration, ensuring long-term reliability.

The Tigo TS4-A-O optimizer enhances energy production, provides advanced safety features, and simplifies system management. Manufactured by Tigo Energy, a leader in Flex MLPE solutions since 2007, this optimizer is designed for easy installation and broad compatibility. Upgrade your PV system with the Tigo TS4-A-O to maximize efficiency and ensure a safe, reliable solar energy solution.
