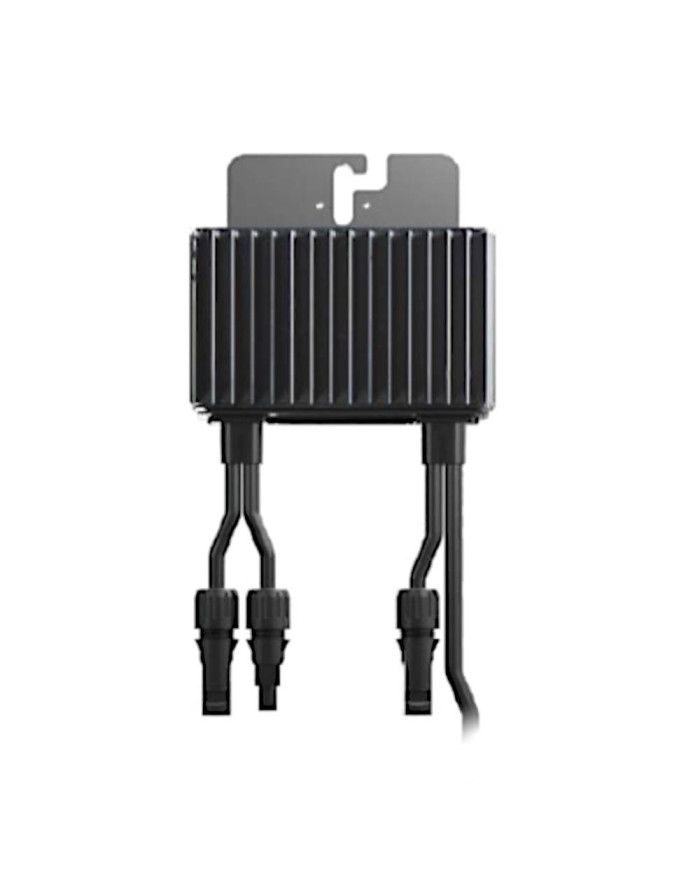

SolarEdge S1200-1GMYMBV Power Optimizer 1200W

The SolarEdge S1200 Power Optimizer (S1200-1GMYMBV) is an advanced solution designed to maximize energy production in commercial and large-field photovoltaic installations. This power optimizer enhances system efficiency and safety while reducing overall costs.

• Module-Level MPPT: Maximizes energy production by continuously tracking the maximum power point of each module.
• Sense Connect Technology: Detects overheating in cables and connectors, preventing arc faults and alerting to abnormal PV connector behavior.
• SafeDC™ Technology: Automatically reduces DC voltage to safe levels during grid or inverter shutdown, ensuring the safety of installers and firefighters.
• High Power Compatibility: Supports high-power and bifacial PV modules, as well as high string current for increased power per string.
• Flexible System Design: Enables maximum space utilization and allows for up to 2x longer string lengths.
• Dual Module Support: Supports the connection of two PV modules in series, reducing the number of optimizers needed.
• Module-Level Monitoring: Provides detailed system monitoring for precise fault detection and remote troubleshooting.
• Original MC4 Connector: Ensures reliable and secure connections.
• Commercial Application: Specifically designed for commercial and large-field PV installations.
• BOS Cost Reduction: Lowers Balance of System (BoS) costs by reducing the need for cables, fuses, and combiner boxes.
• High Efficiency: Features a maximum efficiency of 99.5% and a weighted efficiency of 98.8%.
• Wide MPPT Operating Range: Operates within a voltage range of 12.5 – 105 Vdc.
• Robust Protection: Comes with an IP68 protection class, ensuring durability and resistance to environmental factors.

The SolarEdge S1200 power optimizer significantly boosts the performance and safety of commercial solar installations. By enabling module-level MPPT and advanced safety features, it ensures optimal energy yield and reduces potential hazards. With its robust design and comprehensive monitoring capabilities, the SolarEdge S1200 is a smart choice for maximizing the return on investment in large-scale solar projects.
