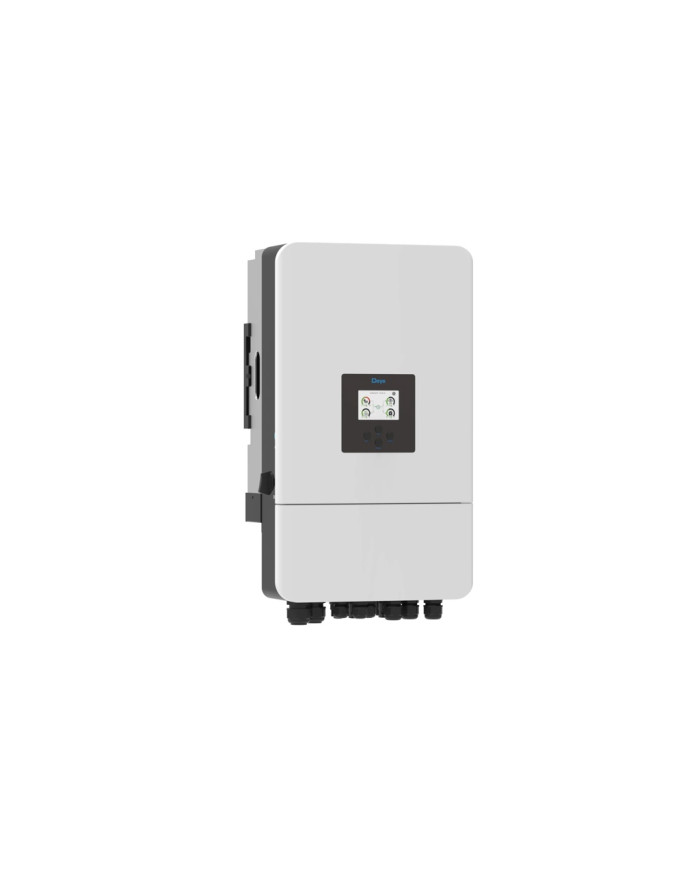

Deye SUN-6K-SG04LP3-EU 6kW Three-Phase Low Voltage Hybrid Inverter

The DEYE SUN-6K-SG04LP3-EU 6kW Three-Phase Low Voltage Hybrid Solar Inverter offers an advanced solution for integrating solar power with efficient battery storage. This robust hybrid inverter delivers reliable energy management, ideal for residential and light commercial applications seeking enhanced energy independence and smart grid interaction.

• 6kW Three-Phase Output: Delivers 6000W (6kW) AC active power, optimized for three-phase electrical systems (220/380V, 230/400V).
• 48V Low Voltage Battery: Compatible with lead-acid or lithium-ion batteries (40-60V range), ensuring transformer-isolated safety and reliability.
• High 150A Current: Features a max. 150A charging/discharging current for dynamic and efficient energy management.
• Dual MPPT Optimization: Equipped with two independent MPPT trackers (1+1 strings per MPPT) to maximize solar harvest from up to 12000W PV access power.
• Exceptional 97.6% Efficiency: Boasts a max efficiency of 97.6% and Euro efficiency of 97.0%, significantly minimizing power loss.
• 100% Unbalanced Output: Provides full unbalanced output, allowing up to 50% rated power per phase for flexible load distribution.
• Scalable to 10 Units: Supports parallel connection of up to 10 units for both on-grid and off-grid expansion, plus multiple batteries in parallel.
• Smart Energy Scheduling: Includes 6 programmable time periods for battery use, Time-of-use (ToU) scheduling, and peak shaving functions.
• Integrated UPS Function: Ensures seamless off-grid power during outages, providing continuous operation for critical loads.
• AC Coupling Ready: Enables straightforward retrofit integration with existing solar installations via AC coupling functionality.
• Comprehensive Safety: Equipped with numerous protections including DC Reverse Polarity, AC Output Overcurrent, Anti-islanding, and Residual Current Detection; optional Arc Fault Circuit Interrupter.
• IP65 Outdoor Durability: Features IP65 protection for harsh environments, operating reliably from -40°C to +60°C and 0-100% ambient humidity.
• Intuitive Touch LCD: Features a colorful touch LCD screen for effortless monitoring, configuration, and control.
• Versatile Connectivity: Offers CAN (x2), RS485, RS232, and DRM ports, with optional GPRS, WIFI, Bluetooth, 4G, and LAN modules for complete communication.

The Deye SUN-6K-SG04LP3-EU hybrid inverter is a versatile and intelligent power solution. Combining advanced features, robust engineering, and comprehensive energy management, it ensures an efficient, reliable, and future-proof solar system, fostering energy self-sufficiency and sustainability.
