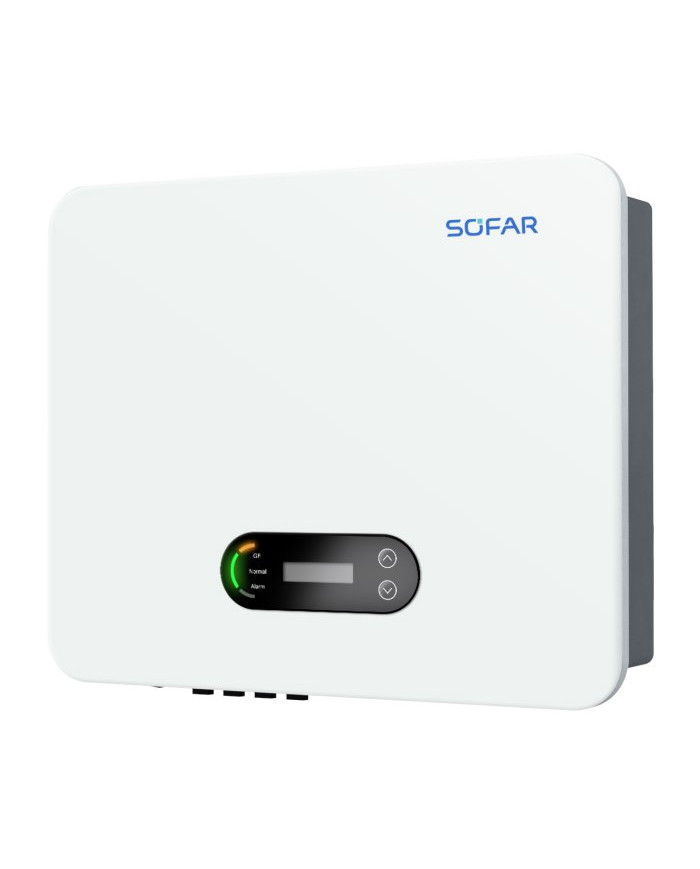

Sofar 22KTLX-G3 Three-Phase Inverter 22 kW

The SOFAR 22KTLX-G3 is a highly efficient three-phase grid-tied string inverter, engineered for both commercial and large residential photovoltaic (PV) systems, ensuring optimal energy conversion and grid synchronization. Manufactured by SOFARSOLAR, a subsidiary of the SOFAR Group, this inverter stands out with its advanced features and robust design.

• Nominal AC Power: 22000 W (22 kW)
• Dual MPPTs: Features two independent Maximum Power Point Tracking (MPPT) channels to optimize energy harvest from two different solar array orientations or under partial shading conditions.
• High Efficiency: Maximum efficiency of 98.75% ensures more of the solar energy is converted into usable electricity.
• Wide MPPT Voltage Range: Operates within a broad voltage range from 140 V to 1000 V, providing flexibility in solar panel configuration.
• Robust Protection: Includes Type II Surge Protection Devices (SPD) for both DC and AC sides, along with anti-islanding, DC reverse polarity, and overvoltage protection.
• Remote Monitoring: Standard communication interfaces like RS485, USB, and Bluetooth, with optional Wi-Fi, GPRS, and Ethernet modules for cloud-based monitoring via Sofar Cloud.
• IP65 Protection: The IP65-rated enclosure allows for outdoor installation, protecting against dust and water ingress.
• Integrated DC Switch: Enhanced safety and operational flexibility with a built-in DC switch.
• Low Start-up Voltage: Quick initiation with a low start-up voltage of 160 V.
• Overload Ability: Capable of 110% long-time overload, providing added reliability under varying load conditions.
• Compact Design: Dimensions of approximately 513 x 425 x 189 mm, facilitating easy installation.
• Smart Monitoring: Smart string level monitoring for efficient management of the PV system.

The SOFAR 22KTLX-G3 is designed for reliable performance and ease of use. With its transformerless topology, it achieves high efficiency and compact design. This inverter offers a comprehensive set of features for grid-tied solar applications, making it a valuable component for any solar energy system. Enjoy a 10-year warranty, ensuring long-term reliability and peace of mind.
