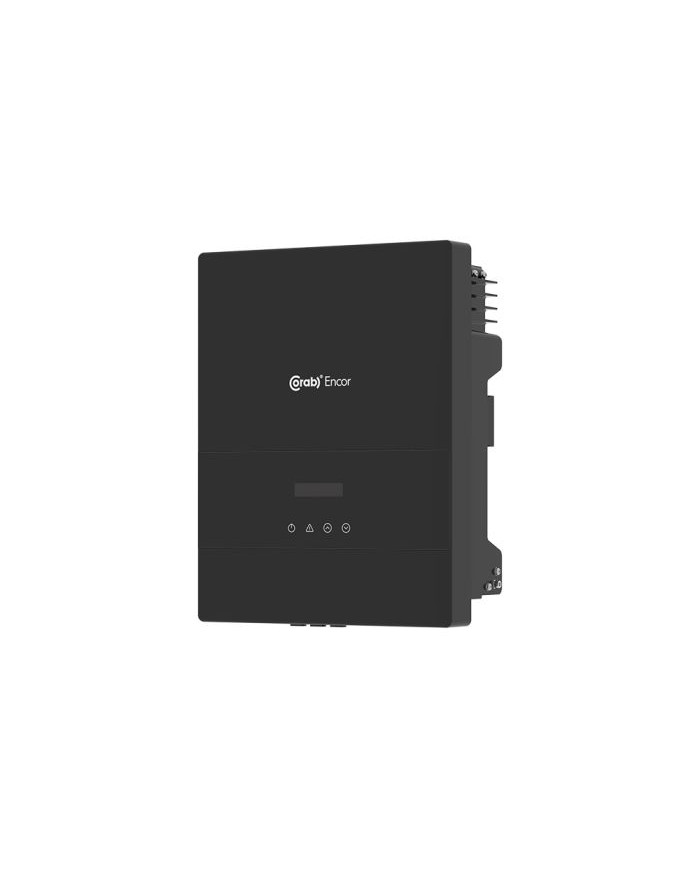

Corab Encor 10kW Three-Phase String Inverter with WiFi

Click to enlarge

Corab Encor 10kW Three-Phase String Inverter with WiFi

1,454.69 zł tax excluded

1,789.27 zł tax included

VAT: 23%
or 0% for companies in the EU

Warehouse Olsztyn

Delivery to

Poland

Austria

Belgium

Bulgaria

Croatia

Cyprus

Czechia

Denmark

Estonia

Finland

France

Germany

Greece

Hungary

Ireland

Italy

Latvia

Lithuania

Luxembourg

Malta

Netherlands

Poland

Portugal

Romania

Slovakia

Slovenia

Spain

Sweden

Sorry, we do not ship to this country from this warehouse!

In stock: 1000 Items

Product Details
Files

Description

Data sheet

Warranty	12
Power [kW]	10
Weight (kg)	17.00
Number of phases	3-phase
Number of MPPTs	2

The Corab Encor 10kW three-phase string inverter is a reliable and efficient solution for residential photovoltaic installations, designed to maximize energy production and provide seamless integration with your home's power system. This inverter comes with a built-in WiFi communication module for easy monitoring and control.

10kW Rated Output: Provides ample power for typical household energy needs.
Three-Phase: Compatible with standard three-phase electrical systems.
Dual MPPTs: Features 2 MPPTs (Maximum Power Point Trackers) to optimize energy harvest from two separate solar panel arrays.
High DC Voltage: Supports a maximum DC voltage of 1000V, allowing for flexible system design.
Wide MPPT Voltage Range: Offers an exceptionally wide MPPT voltage range for increased energy capture.
High Efficiency: Boasts a maximum efficiency of 97.80%, ensuring minimal energy loss during conversion.
IP66 Protection: Designed with an IP66 rating for superior protection against dust and water, suitable for both indoor and outdoor installations.
WiFi Communication: Integrated WiFi module enables convenient remote monitoring and control.
Integrated Monitoring: Utilize the Corab One mobile application for quick configuration, real-time monitoring, and comprehensive diagnostics.
DC Surge Protection: Includes a built-in DC surge arrester (Type II) for enhanced safety.
AC Surge Protection: Equipped with advanced SPD (Surge Protection Device) systems.
Long Warranty: Comes with a 12-year warranty, providing long-term peace of mind.
Oversizing Capability: Allows oversizing of the PV array up to 200%.
High Input Current: Designed for high-power modules with a maximum DC input current of 16A.

This transformerless inverter ensures quiet and efficient operation, while its robust design and comprehensive protection features guarantee long-lasting performance. With the Corab Encor 10kW, you can confidently harness the power of the sun and reduce your reliance on traditional energy sources. Please note that this model does not include a Chint energy meter.

Files

Corab Encor Garantie DE.pdf (114.87KB)
Corab Encor Gwarancja pl.pdf (1018.83KB)
Corab Encor 4-12k Instrukcja skr (1.15MB)
Corab Encor 4-12k Quick Referenc (1.16MB)
Corab Encor 4-12k Betriebsanleit (1.37MB)
Corab Encor 4-12k Betriebsanleit (1.77MB)
Corab Encor 4-12k Betriebsanleit (1.04MB)
Deklaracja zgodności - Falownik (573.17KB)
Corab Encor Datasheet 4-12 en.pd (1.64MB)
Corab Encor Datenblatt 4-12 de.p (1.67MB)
Corab Encor Karta Produktu 4-12 (1.7MB)
Manual Corab Encor 4-12k EN.pdf (3.88MB)
Instrukcja Corab Encor 4-12k PL. (3.89MB)
Corab Encor 4-12k Certyfikat zgo (797.69KB)
