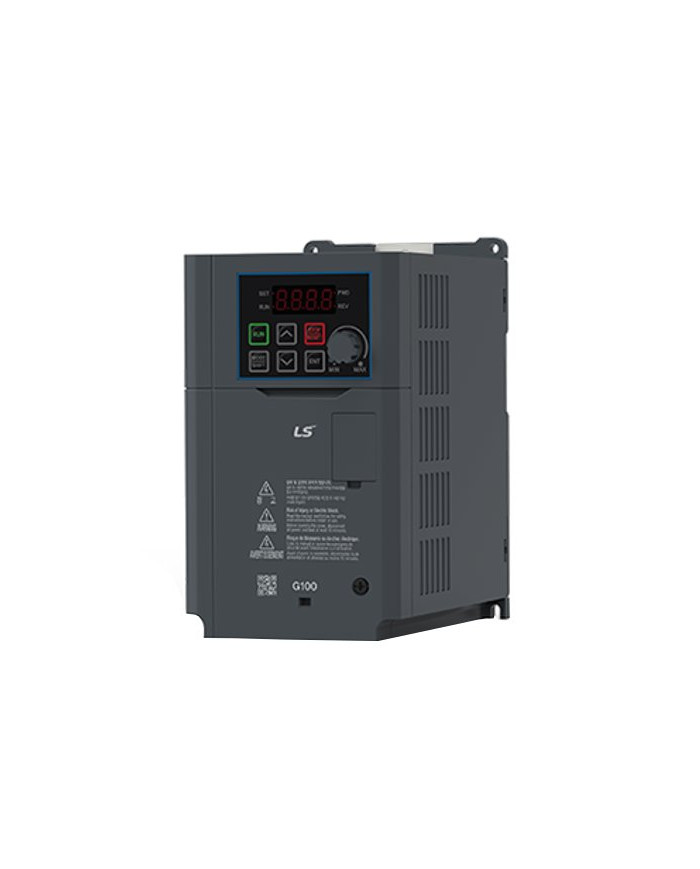

LS ELECTRIC LSLV-G100 0.75kW Inverter, 2.5A, 400V, EMC Filter

The LS ELECTRIC LSLV-G100 is a highly versatile 0.75kW, 3-Phase, 400V AC inverter, designed to optimize motor control in a wide array of industrial applications. Featuring a built-in EMC C3 filter and braking module, this inverter ensures compliance with stringent electromagnetic compatibility standards and provides efficient braking capabilities.

• Model Series: LS ELECTRIC LSLV-G100
• Rated Motor Power: 0.75 kW
• Input Voltage: 3-Phase 380-480V AC (Nominal 400V AC)
• Output Current: 2.5 A (Light Duty) / 1.9 A (Heavy Duty)
• Built-in EMC C3 Filter: Ensures electromagnetic compatibility
• Built-in Braking Module: Enhances braking performance
• Control Method: Sensorless Vector Control, V/F Control, Slip Compensation
• Output Frequency: 0-400 Hz (IM sensorless: 0-120 Hz)
• Protection Degree: IP20
• Compact Design: Allows for side-by-side installation
• Communication: Built-in Modbus RTU and LS INV 485
• Mounting: DIN rail, wall mounting, side-by-side capability
• Dimensions (W x H x D): 85 x 153 x 131.5 mm

This inverter stands out with its improved sensorless vector control, offering enhanced performance and precision. The compact design facilitates easy integration into various systems, while the built-in potentiometer allows for straightforward control adjustments. Adhering to global standards such as UL 61800-5-1, the LS ELECTRIC LSLV-G100 is a reliable and efficient solution for modern industrial automation.
