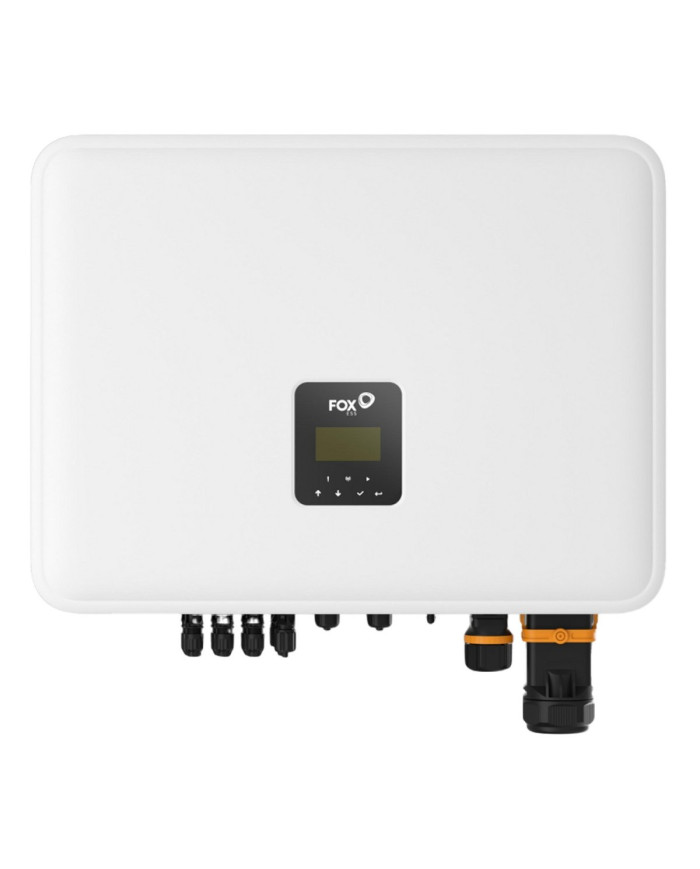

FoxESS P3-5.0-SH 5 kW Three-Phase Hybrid Inverter HV

The FoxESS P3-5.0-SH is a 5kW three-phase hybrid inverter designed for optimized energy management in residential PV installations with energy storage. Engineered for high self-consumption and stable system performance, this inverter provides a reliable and efficient solution for modern energy needs.

• Nominal AC Output Power: 5000 W (5 kW)
• Max PV Input Power (DC): Up to 11,000 Wp
• MPPTs: 2, offering a wide voltage range of 120–950 V
• Battery Compatibility: Designed for high-voltage batteries (100–800 V), including FoxESS models like EP6, EP12, ECS2900, EQ4800, and CQ6
• Max Efficiency: Up to 98.6%, ensuring minimal energy loss
• European Efficiency: 97.3%
• EPS Function: Switchover time to backup mode in less than 20 ms for uninterrupted power supply
• Integrated Datalogger: Comes with Wi-Fi/LAN connectivity for real-time monitoring
• SG-Ready Function: Allows easy integration with external devices
• Protection Degree: IP65, suitable for both indoor and outdoor installations
• Warranty: 10 years, with options for expansion
• Parallel Operation: Supports parallel operation with up to 10 units On-Grid and 7 units Off-Grid
• Comprehensive Protection: Includes anti-islanding, AC/DC surge protection, short-circuit protection, and more

The FoxESS P3-5.0-SH offers plug-and-play installation, simplifying the setup process. With its remote monitoring capabilities via a mobile app and the FoxCloud V2.0 platform, users can easily track system performance. This hybrid inverter is a reliable choice for residential energy storage systems, providing both efficiency and safety.
