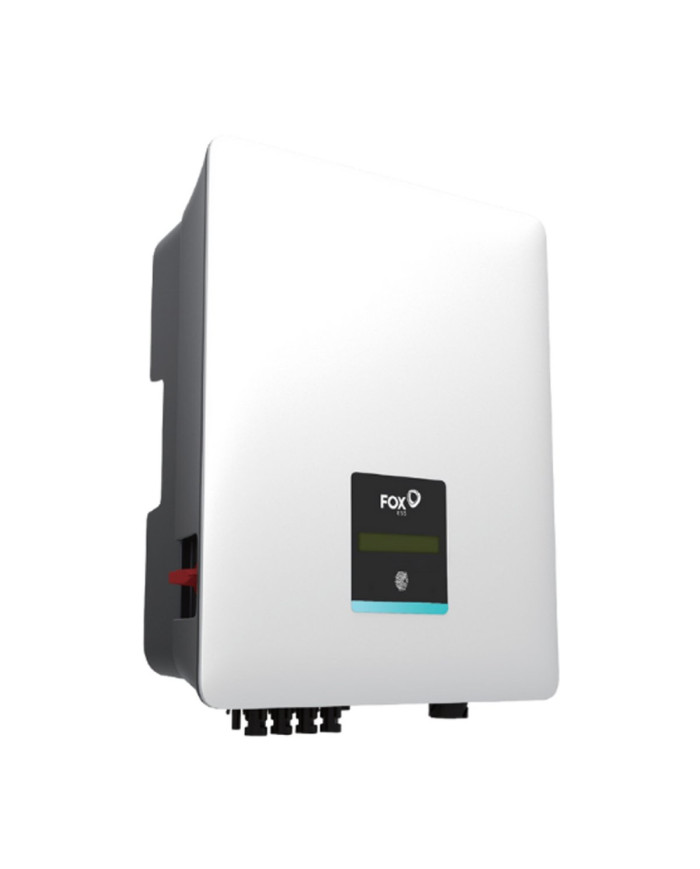

FoxESS T25-G3 25 kW Three-Phase String Inverter

The FoxESS T25-G3 is a robust 25kW three-phase string inverter designed for optimizing energy production in both residential and small commercial photovoltaic (PV) systems. Engineered for high performance and reliability, this inverter ensures efficient conversion of solar energy with advanced features and comprehensive protection mechanisms.

• Rated AC Output Power: 25 kW, ideal for medium-sized solar installations.
• Maximum DC Input Power: 37.5 kW, allowing for substantial solar panel input.
• Wide MPPT Voltage Range: Operates between 140V and 1000V, maximizing energy capture from solar panels under varying conditions.
• Dual MPP Trackers: Features 2 independent MPPTs with 2+2 string configuration for optimized performance.
• High Efficiency: Achieves a maximum efficiency of 98.6% and a European efficiency of 97.8%.
• IP65 Protection: Weatherproof enclosure suitable for outdoor installation.
• Transformerless Topology: Enhances efficiency and reduces weight.
• Remote Monitoring: Real-time monitoring via FoxCloud smartphone app and web portal (Wi-Fi/LAN, optional 4G).
• Comprehensive Protection: Includes anti-islanding, short circuit, overvoltage, overcurrent, overtemperature, RCD, reverse polarity, surge protection, isolation monitoring, DC switch and AFCI.
• Compact Design: Easy to install with dimensions of 370 x 480 x 183.5 mm and a weight of approximately 21 kg.
• Natural Convection Cooling: Fan-free design ensures quiet operation with typical noise emission of ~30 dB.
• Operating Temperature Range: Reliable operation in temperatures from -20°C to +60°C.
• Upgradable: Fully optimized for integration with FoxESS battery storage solutions.

The FoxESS T25-G3 inverter provides a blend of performance, safety, and ease of use. Its advanced features, such as dual MPPTs and comprehensive protection mechanisms, ensure optimal energy conversion and system reliability. Backed by a 10-year warranty and designed for seamless integration with FoxESS battery storage solutions, the T25-G3 is an excellent choice for maximizing the return on investment for your solar energy system.
