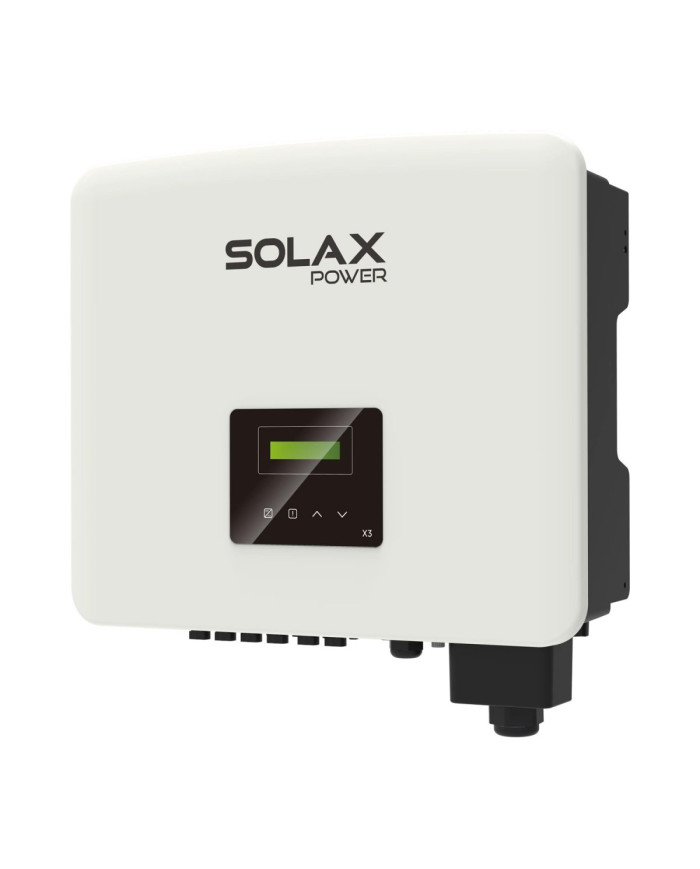

SolaX X3-PRO-20K-G2 Three-Phase On-Grid String Inverter

The SolaX X3-PRO-20K-G2 is a powerful and efficient three-phase on-grid string inverter designed for residential and commercial solar power systems. This inverter allows you to maximize energy production while ensuring seamless grid integration.

• High Efficiency: Achieves up to 98.5% maximum efficiency, ensuring optimal energy conversion.
• Wide Input Voltage Range: Offers a wide input voltage range for flexible system design and compatibility with various PV panel configurations.
• Dual MPPT Trackers: Features two MPP trackers with 2 strings per tracker, allowing for optimized energy harvesting from different roof orientations or panel types.
• High DC Oversizing and AC Overloading: Supports 150% DC oversizing and 110% AC overloading output, providing greater flexibility and performance.
• Smart Load Management: Designed for smart loads management, enabling integration with devices such as heat pumps and EV chargers.
• Remote Monitoring and Control: Enables remote monitoring and control via a mobile app with optional WiFi/LAN/4G connectivity.
• Robust Design: Features an IP66 protection level for reliable outdoor installations, safeguarding against dust and water ingress.
• Enhanced Safety Features: Includes Type II SPD on both AC and DC sides, overvoltage protection, DC reverse-polarity protection, and comprehensive grid monitoring.
• Compact Dimensions: With dimensions of 482 × 417 × 186 mm and a net weight of 26.0 kg, it offers a compact and manageable design.
• Global MPP Scan: Built-in global MPP scan feature ensures the system operates at its peak performance.
• Transformerless Topology: Utilizes a transformerless topology for higher efficiency and reduced weight.
• Broad Compatibility: Complies with multiple certifications including VDE4105, EN 50549, AS 4777.2, and IEC standards, ensuring compatibility with various grid requirements.

The SolaX X3-PRO-20K-G2 inverter combines advanced technology with robust design to deliver exceptional performance and reliability. With its high efficiency, smart features, and comprehensive safety protections, it is an ideal choice for maximizing the return on investment for your solar energy system. Take advantage of its remote monitoring capabilities and seamless grid integration for a smarter, more efficient energy solution.
