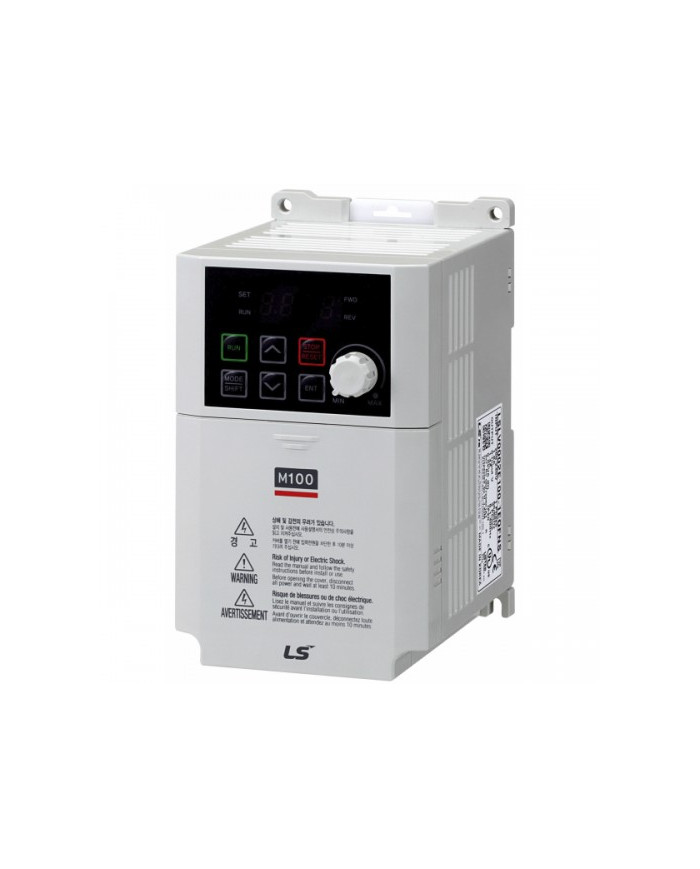

LS Electric M100 Series AC Inverter Drive 0.75kW 1-Phase 230V C2 Filter

The LS Electric M100 Series AC Inverter Drive is a compact and efficient solution for controlling motor speed in a variety of applications. Designed for ease of use and reliability, this inverter drive offers a range of features to optimize performance and energy savings.

• Motor Power Rating: 0.75 kW (1 HP)
• Input Voltage: 1-phase, 200-240 V AC
• Output Voltage: 3-phase, 200-240 V AC
• Output Frequency: 0-400 Hz
• Built-in C2 EMC Filter: Ensures compliance with IEC EN61800-3 Category C2 standards, reducing electromagnetic interference.
• IP20 Enclosure Rating: Provides protection against solid objects.
• DIN Rail Mountable: Simplifies installation in control panels.
• Advanced I/O: Includes 3 Digital Inputs, 1 Digital Output, 1 Analog Input (0-10V), and 1 Analog Output (0-10V).
• RJ45 Port: Allows easy connection for Modbus, Smart Copier, Remote keypad, and DriveView 7/9.
• Built-in Potentiometer: Facilitates speed control adjustments.
• Compact Dimensions: 85 x 163 x 123 mm, ideal for space-saving installations.
• Overload Capacity: 150% for 60 seconds.

This drive is particularly well-suited for applications such as fan drives, pumps, and conveyor belts, and is specifically adapted for the ventilation market. The built-in potentiometer and LED keypad enhance user convenience, while the advanced I/O and communication capabilities provide flexibility in system integration. The LS Electric M100 Series AC Inverter Drive is a reliable and cost-effective choice for optimizing motor control.
