Solplanet ASW 25K-LT-G3 25kW 3-Phase Inverter

Click to enlarge

Previous product

Hoymiles HMT-2250-6T Three-Phase Microinverter 2250W

Back to the homepage

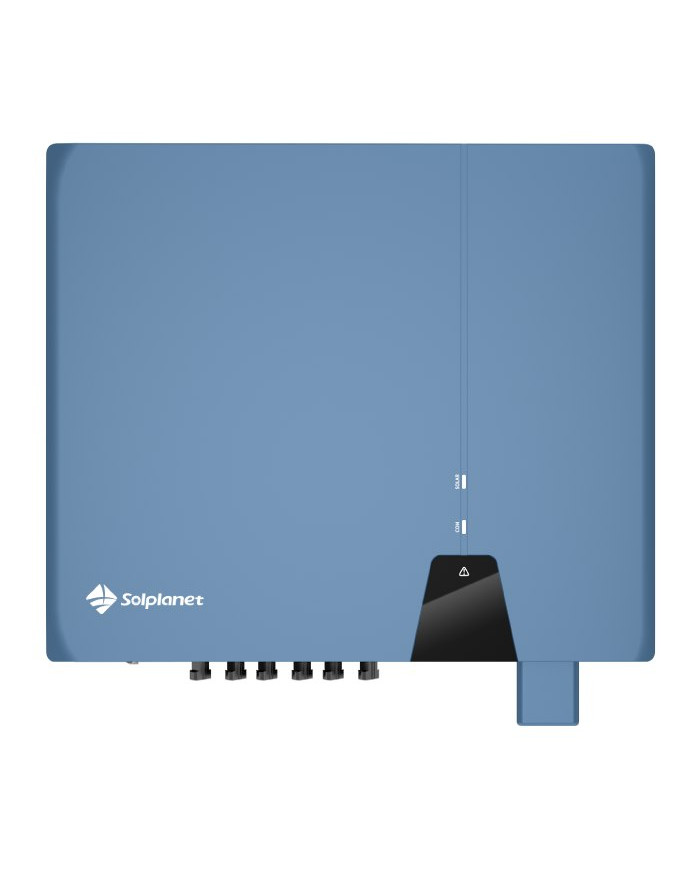

Solplanet ASW 25K-LT-G3 Three-Phase Inverter 25 kW

Name: Solplanet ASW 25K-LT-G3 Three-Phase Inverter 25 kW
Brand: Solplanet
SKU: 103925
Price: 1299.65 EUR
Availability: InStock
Rating: 5 (99 reviews)

€1,056.63 tax excluded

€1,299.65 tax included

VAT: 23%
or 0% for companies in the EU

Warehouse [PL] Radzymin

Delivery to

Poland

Austria

Belgium

Bulgaria

Croatia

Cyprus

Czechia

Denmark

Estonia

Finland

France

Germany

Greece

Hungary

Ireland

Italy

Latvia

Lithuania

Luxembourg

Malta

Netherlands

Poland

Portugal

Romania

Slovakia

Slovenia

Spain

Sweden

Shipping cost

€7.61/package

€68.51/palette

In stock: 2 Items

Add to wishlist

Product Details
Files

Description

BrandSolplanet

Reference28949

Data sheet

Warranty	5
Power [kW]	25
Weight (kg)	29
Number of phases	3-fazowy
Number of MPPTs	3

The Solplanet ASW 25K-LT-G3 is a robust and efficient three-phase PV string inverter designed for commercial and industrial solar power systems. Engineered for optimal performance and ease of use, this inverter ensures reliable energy conversion with advanced features for enhanced monitoring and control.

Rated AC Power: 25 kW, ideal for medium to large-scale solar installations.
3 MPPTs: Maximizes energy yield by optimizing input from three separate arrays.
Wide MPPT Voltage Range: 180 V – 1000 V, offering flexibility in PV system design.
High Efficiency: Max. efficiency of 98.6% and European efficiency of 98.3% for superior energy conversion.
AFCI Protection: Integrated Arc Fault Circuit Interrupter for enhanced safety.
SPS Interface: Smart Power Sensor interface for smart meter connectivity and zero export control.
Ai-Dongle Communication: Enables Wi-Fi/LAN communication for remote monitoring and management via the Solplanet app.
ShadeSol Technology: Optimizes energy production even in shaded conditions.
IP66 Protection Degree: Suitable for outdoor installation, providing excellent protection against dust and water.
DC/AC Oversizing: Supports up to 150% PV array oversizing for increased energy production.
Surge Protection: Built-in Type II DC & AC surge protection to safeguard against voltage spikes.
Compact Design: Easy wall mount installation with dimensions of 543 x 463 x 225 mm.
Module Compatibility: Compatible with 182/210mm wafer-based PV modules.
Remote Monitoring: 24/7 monitoring and management via the Solplanet app.

The Solplanet ASW 25K-LT-G3 is designed for easy installation and commissioning, featuring plug-in connectors and a user-friendly mobile app for quick setup. With its advanced protection features, high efficiency, and smart monitoring capabilities, this inverter is a reliable choice for optimizing your solar energy system. This transformerless inverter supports a range of AC nominal voltages (220 V / 380 V, 230 V / 400 V, 240 V / 415 V) and includes DC reverse polarity protection and AC sensitive residual current monitoring for added safety.
