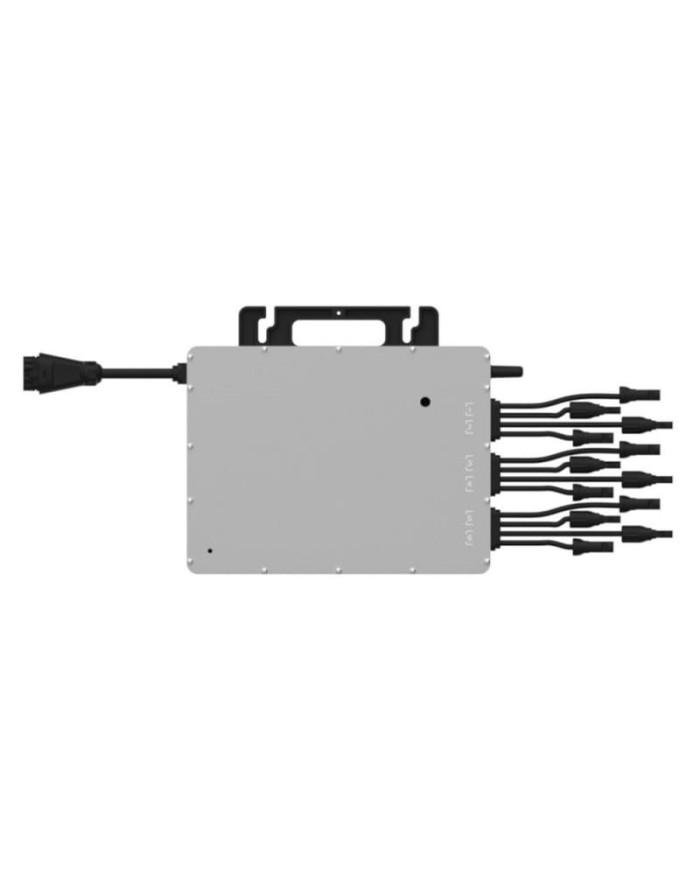

Hoymiles HMT-2250-6T Three-Phase Microinverter 2250W

The Hoymiles HMT-2250-6T is a cutting-edge three-phase microinverter designed to maximize the efficiency and safety of your solar power system. Engineered to support up to 6 PV modules, this microinverter is ideal for both industrial applications and large domestic installations, providing unparalleled performance and reliability.

• Rated Output Power: 2250 VA, ensuring robust performance for your energy needs.
• PV Module Compatibility: Supports up to 6 PV modules, with a recommended power range of 300-470 W per module (up to 505W in some configurations).
• Independent MPPT: Features 3 independent MPPT trackers, optimizing energy capture even in partial shading conditions.
• Wide MPPT Voltage Range: Operates within a 16-60 V MPPT voltage range (some sources specify 36-48V), enhancing flexibility.
• High Efficiency: Boasts a maximum efficiency of 96.5% (with some sources reporting up to 96.7%), ensuring minimal energy loss.
• Three-Phase System: Designed for three-phase power systems (3 × 230 V / 400 V), making it suitable for various applications.
• Reactive Power Control: The world's first three-phase microinverter with reactive power control for enhanced grid stability.
• Module-Level Monitoring: Allows for module-level monitoring via the internet using Hoymiles DTU (e.g., DTU-Pro-S or DTU-Lite-S).
• Robust Design: Features an IP67 (NEMA6) enclosure for superior protection against harsh environmental conditions.
• Compact Dimensions: With dimensions of 330 × 250 × 37 mm and a weight of 6 kg (some sources state 6.5 kg), it is easy to install and manage.
• Integrated Cabling: Simplifies installation with integrated cabling and MC4 and AC connectors.
• Safety Features: Enhanced safety with quick shutdown and isolation transformer for rooftop solar power plants.
• Operating Temperature Range: Wide operating temperature range from -40°C to +65°C, ensuring reliable performance in extreme conditions.

The Hoymiles HMT-2250-6T microinverter not only optimizes energy production but also ensures the safety and stability of your solar power system. Compliant with international standards such as EN50549-1:2019 and IEC/EN 62109-1/-2, this microinverter is a reliable and efficient solution for your energy needs. With its advanced features and robust design, the Hoymiles HMT-2250-6T is the perfect choice for maximizing the potential of your solar installation.
