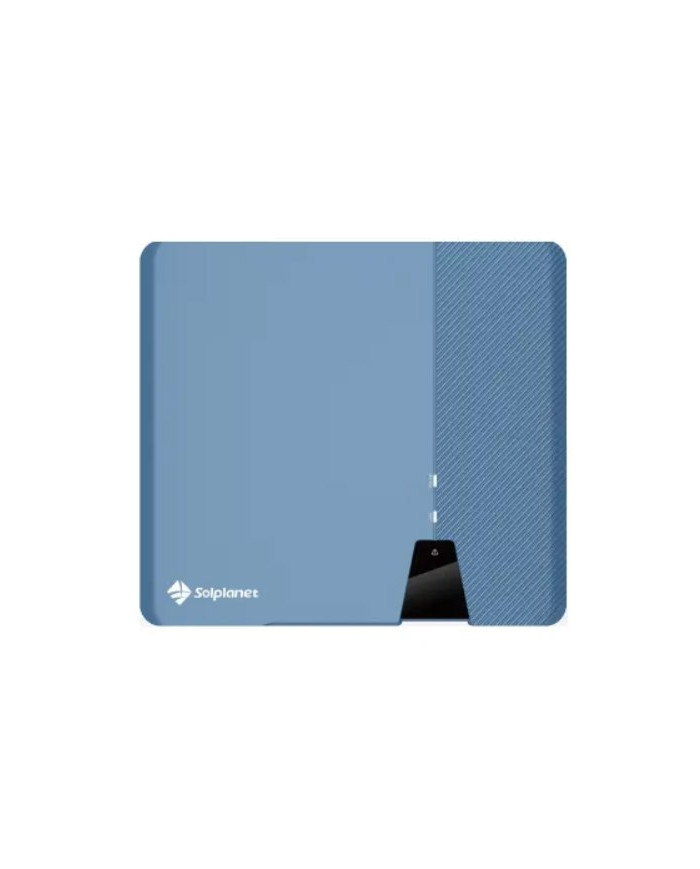

Solplanet ASW 5K-LT-G2 Pro 5 kW 3-Phase Inverter with 2 MPPT, AFCI, and AI-Dongle

The Solplanet ASW 5K-LT-G2 Pro is a state-of-the-art three-phase PV grid inverter designed for optimal performance and safety in residential and commercial solar installations. This 5 kW inverter is equipped with advanced features like AFCI (Arc Fault Circuit Interrupter) and an AI-Dongle for seamless monitoring, ensuring a reliable and efficient solar power system.

• Nominal AC Output Power: 5 kW (5000 W)
• Dual MPPT Inputs: Features 2 MPPTs (Maximum Power Point Trackers) for optimized energy harvest from solar panels, even with varying orientations or shading.
• Wide MPPT Voltage Range: Operates within a 150 V - 1000 V MPPT voltage range, offering flexibility in system design.
• AFCI Protection: Includes an Arc Fault Circuit Interrupter for enhanced safety, minimizing the risk of electrical fires.
• AI-Dongle Connectivity: Comes with an AI-Dongle (Wi-Fi or 4G stick) for cloud-based monitoring via the Solplanet app, available on iOS and Android.
• High Efficiency: Boasts a maximum efficiency of 98.7% and a European efficiency of 98.3%, ensuring maximum energy conversion.
• IP66 Protection: Designed with an IP66 rating for robust outdoor use, protecting against dust and water ingress.
• DC/AC Oversizing Capability: Supports DC/AC ratios up to 150%, allowing for flexible system configurations.
• ShadeSol Technology: Features ShadeSol shadow management for optimized performance in shaded conditions.
• Easy Installation: Simplifies installation with a double wall mounting bracket and plug-in connectors (Phoenix Contact DC connectors).
• DC Reverse Polarity Protection: Protects against damage from incorrect wiring, ensuring installer and end-user safety.
• Built-in Surge Protection: Equipped with Type II surge protection on both DC and AC sides.
• Compact Design: Dimensions of 503 mm x 435 mm x 183 mm and a weight of 15 kg make it easy to handle and install.

The Solplanet ASW 5K-LT-G2 Pro combines cutting-edge technology with robust design, making it an excellent choice for modern solar installations. With its integrated safety features, user-friendly monitoring, and high efficiency, this inverter ensures optimal performance and peace of mind. Compliant with international quality and safety standards, and winner of the RedDot Award for design, the Solplanet ASW 5K-LT-G2 Pro sets a new benchmark in solar energy solutions.
