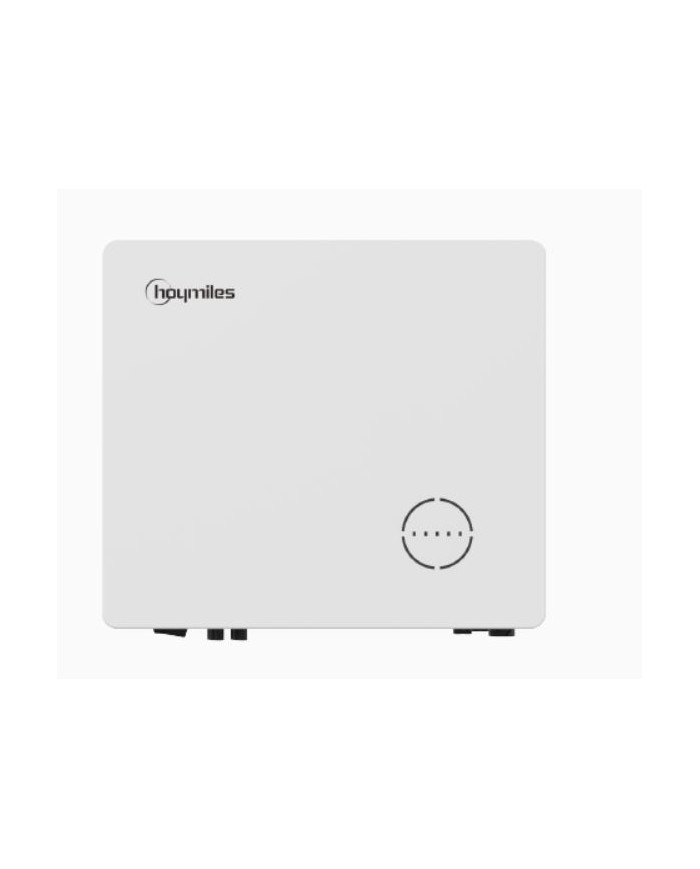

Hoymiles HYS-3.0LV-EUG1 3 kW Single-Phase Hybrid Inverter

The Hoymiles HYS-3.0LV-EUG1 is a high-performance single-phase hybrid inverter, designed for residential and small commercial applications, offering a versatile solution for managing energy consumption and storage. This inverter combines advanced technology with user-friendly features, ensuring efficient and reliable operation.

• High Efficiency: Max. efficiency of 97.6% and European efficiency of 97.0%, ensuring optimal energy conversion.
• Dual MPPT Trackers: Features 2 MPPT trackers with a voltage range of 125-500 V and max. current of 14 A per MPPT, maximizing PV energy capture.
• Battery Compatibility: Compatible with 48V Lithium-ion and Lead-acid batteries, offering flexibility in energy storage solutions.
• Power Capacity: Rated AC output power of 3.0 kW with a max. output apparent power of 6000 VA (off-grid for 10 seconds), suitable for various load requirements.
• Flexible Operation Modes: Intelligent Energy Management System (EMS) supports self-consumption, economical, and backup modes, catering to different usage scenarios.
• Remote Monitoring: S-Miles Cloud service enables remote monitoring and system performance tracking.
• Communication Interfaces: Equipped with RS485, Wi-Fi, Ethernet, and optional 4G for seamless connectivity.
• Integrated Protection: Includes integrated DC/AC disconnect, surge protection, arc fault protection, and rapid shutdown function for enhanced safety.
• Parallel Operation: Supports parallel connection of up to 10 units for scalable power solutions.
• UPS Function: Uninterruptible Power Supply (UPS) with a switching time of less than 10 ms, ensuring continuous power supply.
• Compact Design: Ultralight design simplifies installation and saves space.
• Intelligent Export Limitation: Prevents excess energy from being fed back into the grid.
• Wide Operating Temperature Range: Operates effectively in temperatures ranging from -25°C to +45°C.

The Hoymiles HYS-3.0LV-EUG1 hybrid inverter offers a reliable and efficient solution for managing solar energy in residential and small commercial settings. With its advanced features, flexible operation modes, and comprehensive protection mechanisms, this inverter ensures optimal performance and safety. It's intelligent design and remote monitoring capabilities provide users with complete control over their energy consumption and storage.
