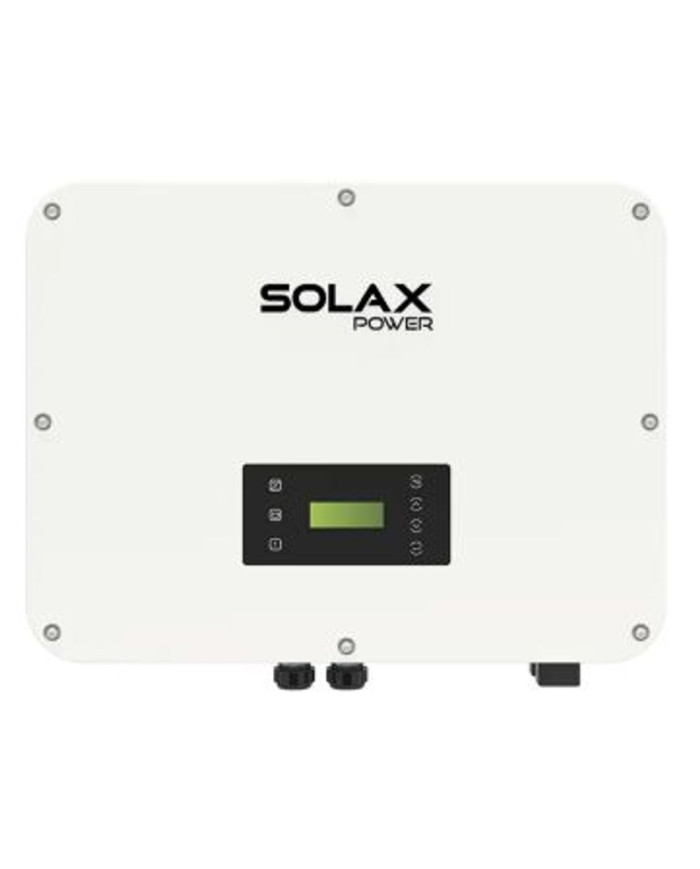

SolaX X3-ULTRA 20kW Hybrid Three-Phase X3-ULT-20K

The SolaX X3-ULTRA 20kW hybrid inverter is a powerful and versatile solution for both residential and commercial solar energy systems. Designed for three-phase applications, this inverter seamlessly integrates solar power, battery storage, and grid connectivity to maximize energy efficiency and provide reliable backup power.

• High Power Output: Delivers a rated output power of 20kW, with a maximum AC output of 22kW.
• Exceptional Efficiency: Achieves a maximum efficiency of 98.5% and a Euro efficiency of 97.7%.
• Flexible Battery Compatibility: Supports a wide battery voltage range (180-800V) and can connect to over 90kWh of battery storage.
• Dual Battery Ports: Features dual independent battery ports for enhanced flexibility and scalability.
• EPS Functionality: Provides emergency power supply (EPS) capability, even without a battery connected.
• Parallel Operation: Can operate in parallel with up to 10 inverters for both on-grid and off-grid systems (requires SolaX X3 Parallel EPS Box for 3+ inverters).
• Smart Energy Management: Includes AI-driven energy management and forecasting for optimal energy usage.
• Remote Monitoring: Allows remote monitoring via the SolaX Cloud web portal or smartphone app.
• VPP Ready: Compatible with Virtual Power Plant (VPP) applications, supporting OpenADR, IEEE2030.5, FCAS, and API.
• Advanced Protection: Integrated AC & DC Type II surge protection (SPD) and optional AFCI (Arc Fault Circuit Interrupter) protection.
• Robust Design: Features an IP66 ingress protection rating for durability and reliable performance in various environmental conditions.
• Shadow Tracking: Incorporates built-in shadow tracking to optimize energy production even in partially shaded conditions.
• High PV Input: Maximum recommended PV array power of 40 kWp and max. PV input voltage of 1000 V.

The SolaX X3-ULTRA 20kW inverter offers advanced features such as AI-driven energy management, remote monitoring, and VPP readiness, making it a future-proof investment for smart energy solutions. With its robust design, high efficiency, and comprehensive protection features, the SolaX X3-ULTRA 20kW hybrid inverter ensures reliable and efficient energy management for a variety of applications. Its capability to work without a battery connected for EPS functionality is unique.
