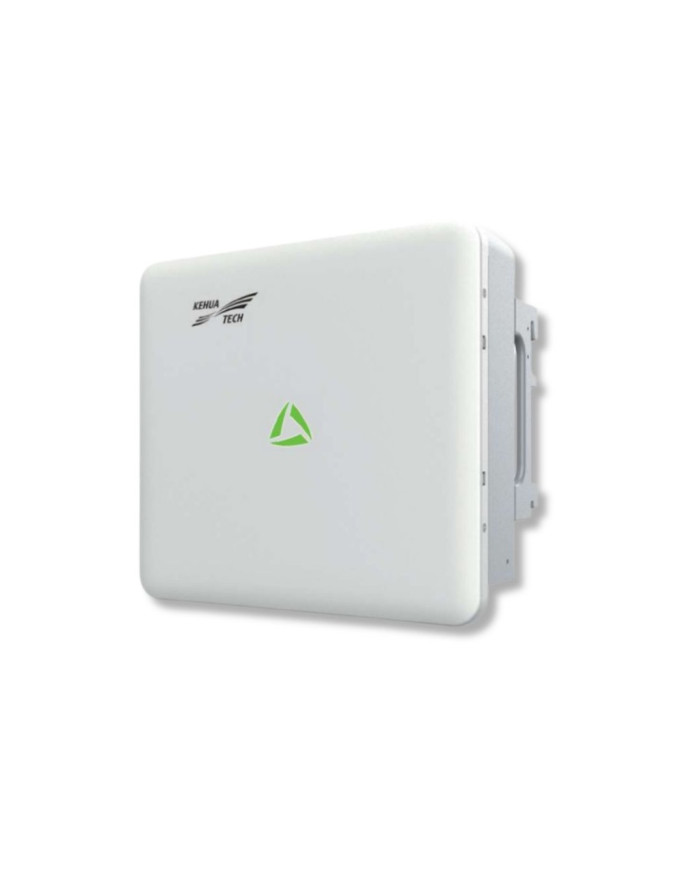

Kehua SPI12K-B X2 12.0 kW

The Kehua SPI12K-B X2 is a highly efficient and reliable three-phase on-grid string inverter, designed for optimal performance in photovoltaic (PV) systems. Boasting a 12.0 kW rated AC output power and advanced features, this inverter ensures maximum energy yield and seamless integration with your solar installation.

• Rated AC Output Power: 12.0 kW, providing substantial power for residential and commercial applications.
• Dual MPPTs: Equipped with 2 MPPTs to optimize energy harvesting from two separate arrays, enhancing overall system efficiency.
• High Efficiency: Achieves a maximum efficiency of 98.6% and a European efficiency of 98.1%, ensuring minimal energy loss.
• Wide Input Voltage Range: Supports an MPPT voltage range of 180-1100 Vdc, offering flexibility in PV panel selection and configuration.
• AFCI Protection: Integrated Arc Fault Circuit Interrupter (AFCI) for enhanced safety, mitigating fire risks associated with arc faults.
• ESS Interface: Features an Energy Storage System (ESS) interface, allowing for easy integration with battery storage solutions.
• IP66 Protection: Designed with an IP66 rating, making it suitable for outdoor installations with excellent resistance to dust and water.
• Natural Cooling: Utilizes natural cooling to ensure quiet operation and reduce maintenance requirements.
• Comprehensive Protection: Includes integrated AC/DC full lightning protection, anti-islanding protection, and reverse connection protection.
• Remote Monitoring: Supports intelligent monitoring and remote upgrades via the WiseSolar Plus APP and cloud platform.
• Compact Design: With dimensions of 480 x 420 x 182 mm and a weight of 17 kg, the inverter is compact and easy to install.
• DC Switch: Includes a built-in DC switch for safe and convenient maintenance.
• I&V Intelligent Diagnosis: Features intelligent I&V curve diagnostic capabilities for proactive system monitoring.

The Kehua SPI12K-B X2 inverter combines advanced technology with robust design to deliver exceptional performance and reliability. With its multi-MPPT design, comprehensive protection features, and user-friendly monitoring capabilities, this inverter is an ideal choice for maximizing the efficiency and safety of your solar energy system. Its seamless ESS interface and remote monitoring capabilities make it a forward-thinking investment for modern energy needs.
