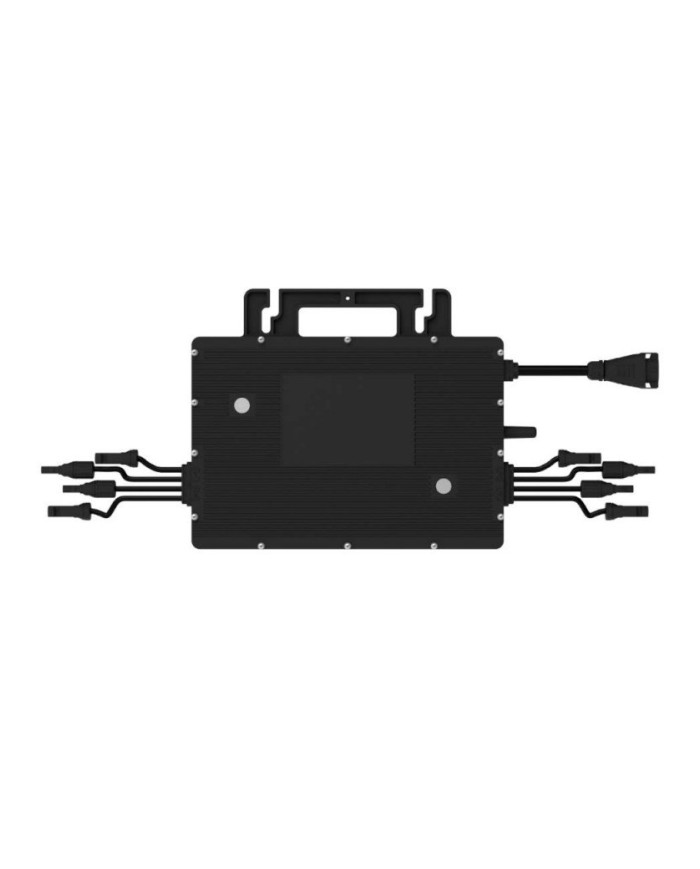

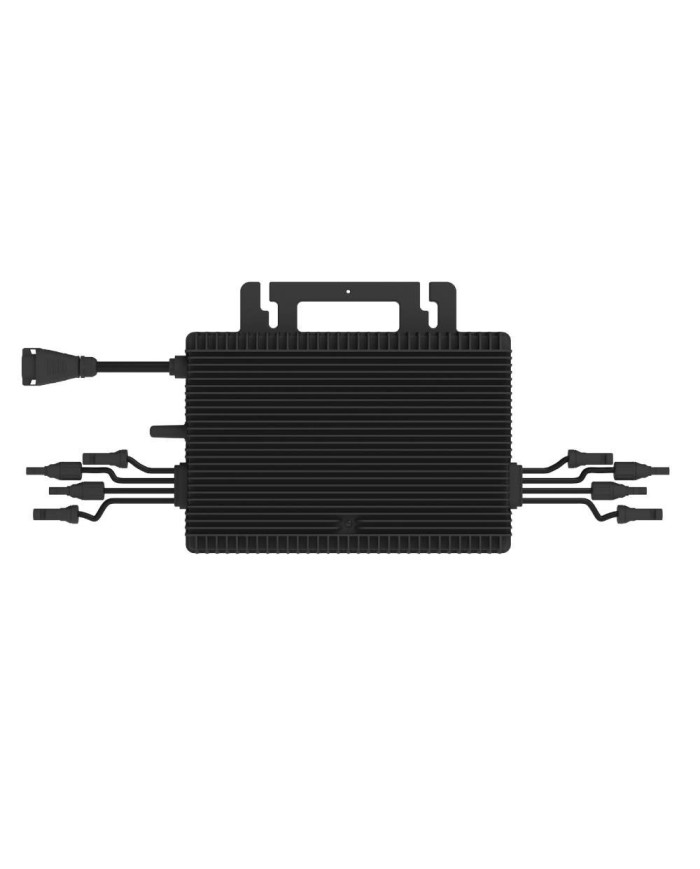

Hoymiles HMT-1600-4T

The Hoymiles HMT-1600-4T is a state-of-the-art three-phase microinverter designed for commercial and industrial solar applications. This advanced unit maximizes energy harvest while ensuring safety and reliability, making it an ideal choice for modern solar installations.

• High Power Output: Delivers a peak output power of 1600 VA, ensuring optimal performance for three-phase grid systems.
• Multiple Inputs: Features 4 input channels, allowing connection of up to 4 PV modules, enhancing flexibility and scalability.
• Broad PV Module Compatibility: Compatible with PV modules ranging from 320 to 540+ W, including 182 mm/210 mm modules.
• Dual MPPT Design: Equipped with 2 MPPTs (Maximum Power Point Trackers), optimizing energy capture from each pair of modules independently.
• Efficient Performance: Achieves a CEC peak efficiency of 96.50% and an MPPT efficiency of 99.80%, ensuring minimal energy loss.
• Robust Protection: Includes integrated grid protection relay and adheres to safety standards like UL1741, IEEE1547, and VDE-AR-N 4105:2018.
• DC:AC Ratio: High 1.5:1 DC:AC ratio, supporting max Isc currents up to 25A per input.
• Module-Level Monitoring: Enables module-level monitoring and remote O&M via the S-Miles Cloud platform (requires DTU Lite-S or DTU Pro).
• Wireless Communication: Utilizes a Sub-1G wireless solution for stable communication with the Hoymiles gateway DTU.
• Three-Phase Compatibility: Designed for three-phase grid types (3W+N+PE for EMEA/APAC, 120/208, 3Φ/PE/N for North America).
• Transformer Isolation: Safer operation with rapid shutdown compliance and an isolated transformer.
• Durable Design: Built with an IP67 enclosure rating, suitable for outdoor use and capable of withstanding temperatures from -40°C to +65°C.

The Hoymiles HMT-1600-4T microinverter is engineered for efficiency, safety, and ease of use. Its advanced features like independent MPPTs and remote monitoring provide greater energy harvest and simplified maintenance. Whether for commercial or industrial applications, this microinverter offers a reliable and high-performance solution for optimizing solar energy production, backed by Hoymiles' commitment to quality and innovation in module-level power electronics.
