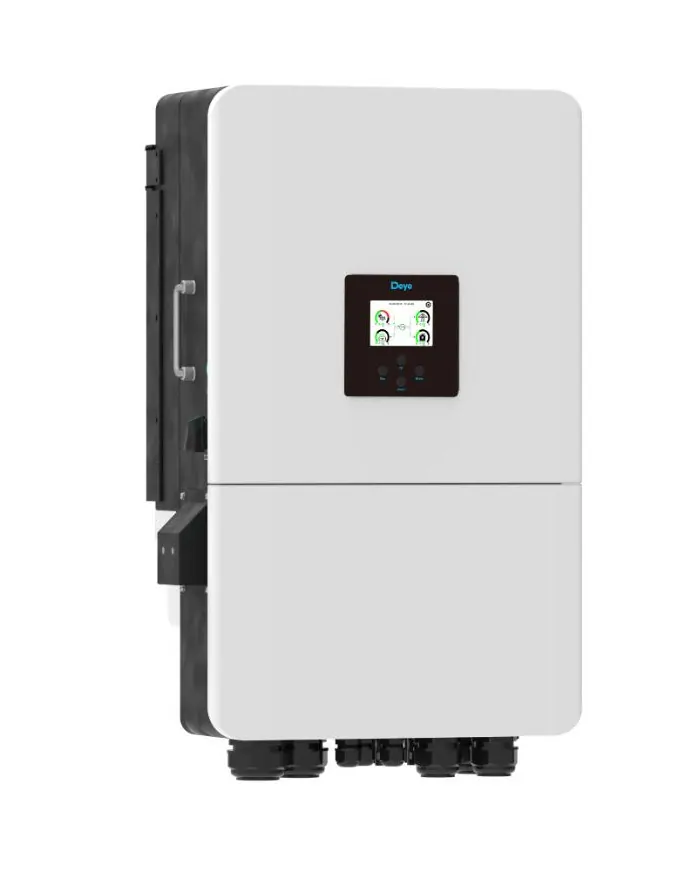

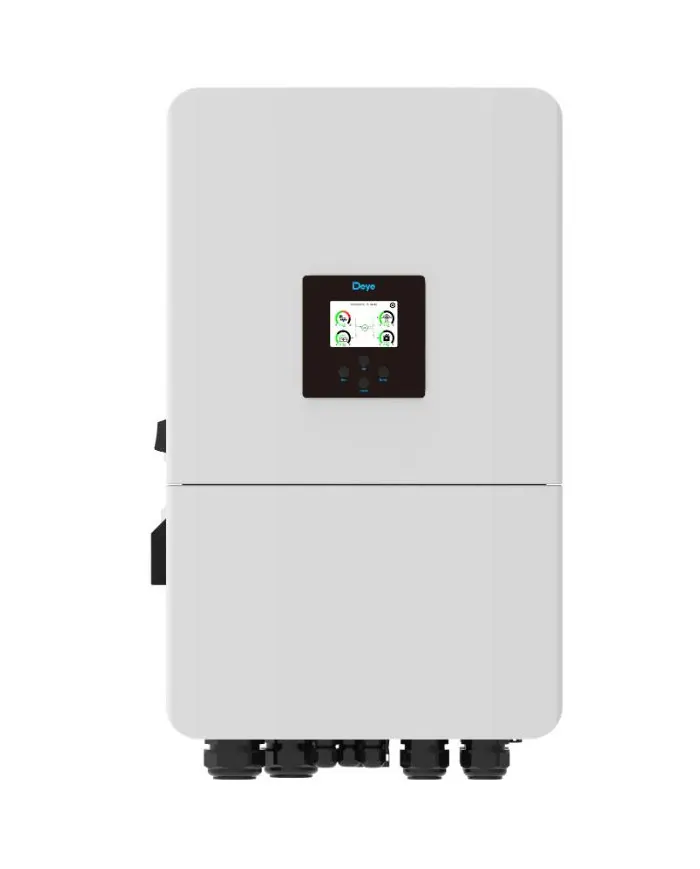

Deye SUN-20K-SG05LP3-EU-SM2

The Deye SUN-20K-SG05LP3-EU-SM2 is a powerful three-phase hybrid inverter designed for optimal energy management in diverse applications. This inverter seamlessly integrates solar power, battery storage, and grid connectivity, providing a reliable and efficient solution for residential and commercial energy needs.

• Nominal AC Power: 20000 W (20 kW)
• Maximum PV Input Power: Up to 30000 W
• MPPT Trackers: Equipped with 2 MPPT trackers for enhanced energy harvesting
• Maximum Charging Current: High charging current of 350 A
• Battery Voltage: 48 V
• Unbalanced Load Capability: 100% unbalanced load support
• AC Power Change: Ability to change AC power up to 50%
• Operating Temperature Range: Wide range from -40°C to +60°C
• Protection Class: Robust IP66 protection for outdoor installations
• Efficiency: High efficiency rating of ≥98%
• Communication: Features GPRS, RS485, CAN, LAN (optional), and WiFi for flexible monitoring and control
• Intelligent Protection: Comprehensive overcurrent, over-voltage, and over-temperature protection
• Dimensions (W×H×D): 456 × 750 × 286 mm

With its intelligent design and versatile features, the Deye SUN-20K-SG05LP3-EU-SM2 offers a robust and adaptable solution for modern energy systems. Its high efficiency, comprehensive protection, and smart communication capabilities make it a top choice for users looking to optimize their energy usage and ensure a stable power supply. The inverter's ability to support various system architectures, including generator and grid integration, further enhances its flexibility and suitability for diverse applications.
