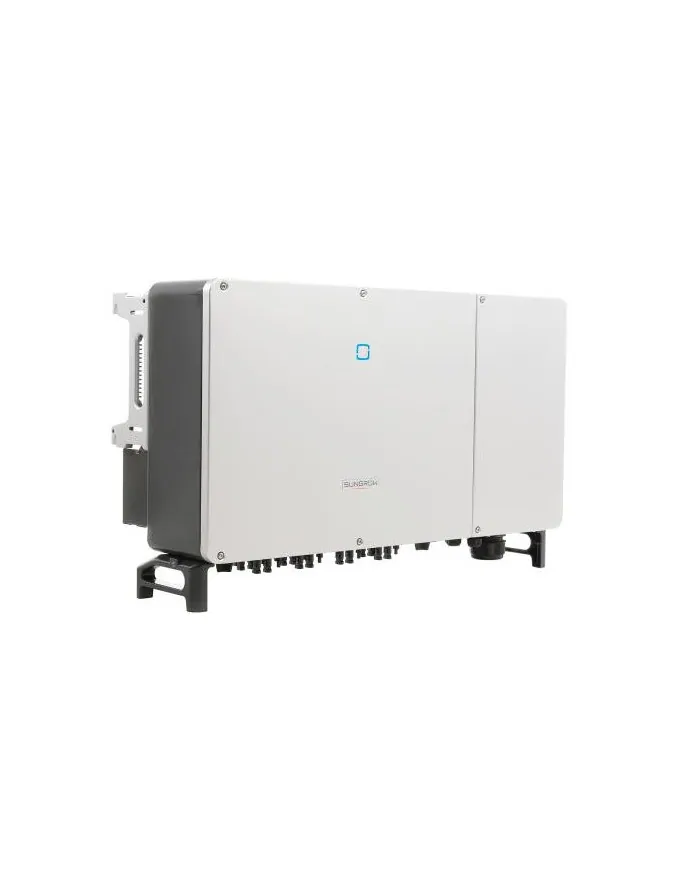

Sungrow SG110CX-V112(AFCI, SPD DC I+II/AC II, DC switch, PID)

The Sungrow SG110CX-V112 is a high-performance solar inverter designed for large-scale commercial and industrial photovoltaic installations. This powerful device combines cutting-edge technology with robust features to maximize energy output and ensure reliable operation in diverse environmental conditions.

Key features of the Sungrow SG110CX-V112 include:

• Impressive 110 kVA nominal AC output power at 45°C (100 kVA at 50°C)
• High maximum efficiency of 98.7% and European efficiency of 98.5%
• Wide MPPT voltage range of 200-1000V for flexible string configurations
• Advanced protection features including DC switch, PID recovery, and SPD DC I+II/AC II
• AFCI (Arc Fault Circuit Interrupter) function for enhanced safety
• IP66 protection class for excellent environmental adaptability
• Transformerless design for compact size and reduced weight (89 kg)
• Broad operating temperature range from -30 to 60°C (with derating)
• High altitude operation up to 4000 m (with derating)
• Versatile communication options including RS485, WLAN, and Ethernet
• Comprehensive certifications ensuring compliance with international standards
• Adjustable power factor from 0.8 inductive to 0.8 capacitive
• Low Total Harmonic Distortion (THD) of ≤ 3% at rated power
• Robust design to withstand 0-100% relative humidity

The Sungrow SG110CX-V112 stands out as a reliable and efficient solution for large-scale solar energy projects. Its combination of high performance, advanced protection features, and adaptability to various environmental conditions makes it an excellent choice for installers and system owners seeking to maximize their solar investment. With its impressive specifications and comprehensive certifications, this inverter is well-equipped to meet the demands of modern solar installations while ensuring long-term reliability and optimal energy production.
