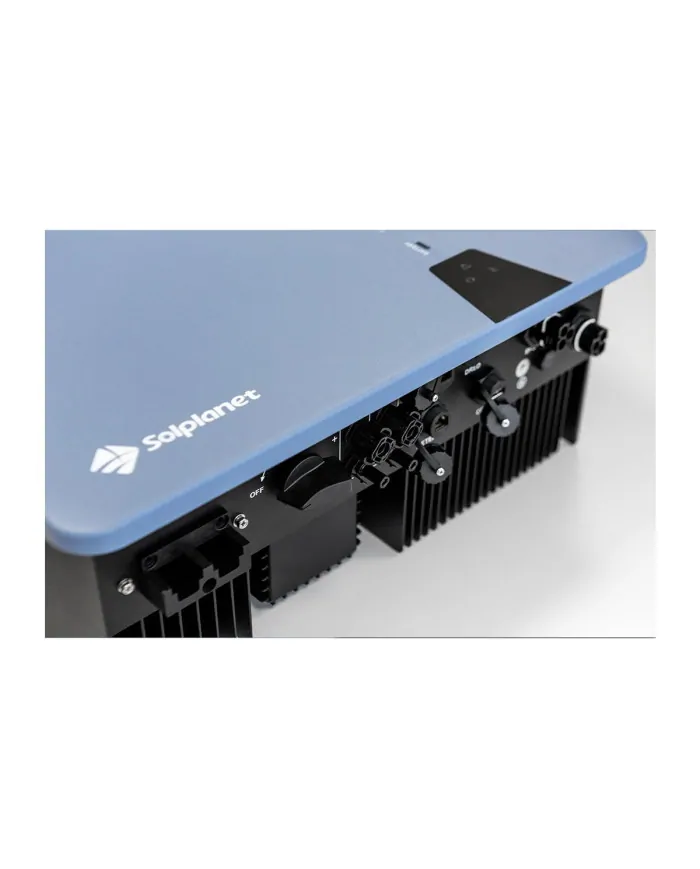

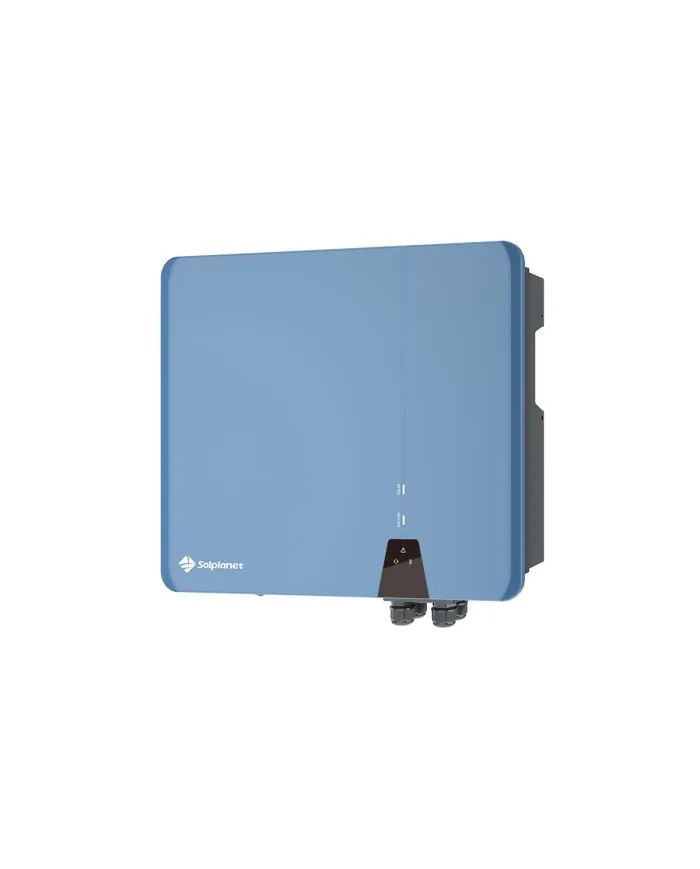

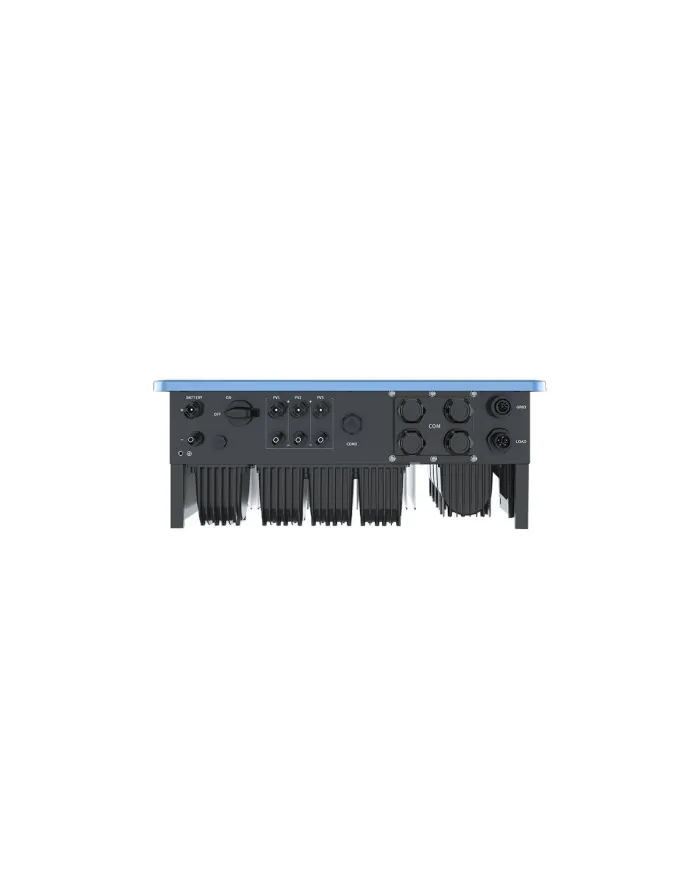

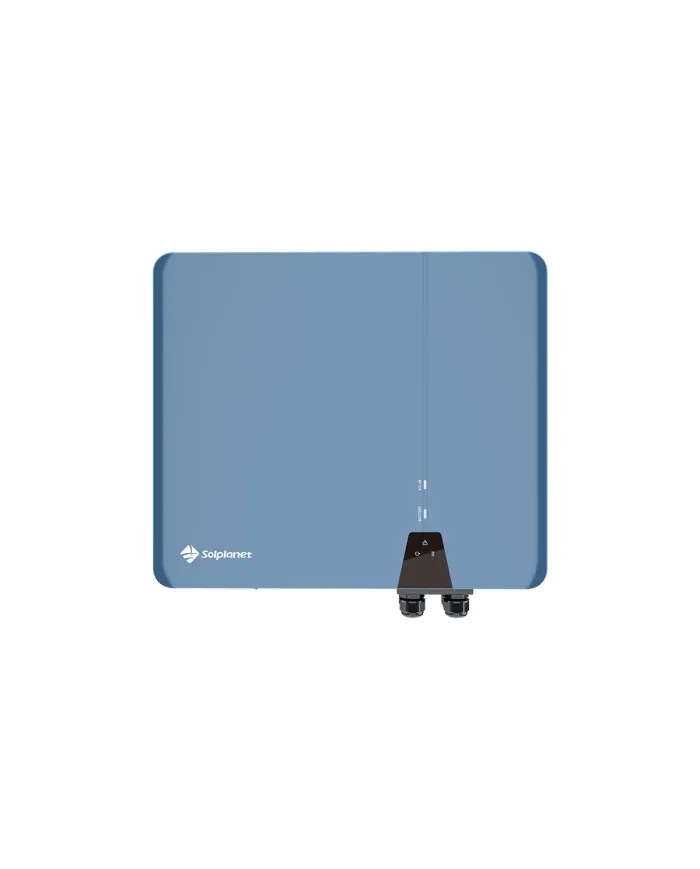

Solplanet ASW10kH-T2 10kW

The Solplanet ASW10kH-T2 10kW is a cutting-edge three-phase hybrid inverter designed to revolutionize your solar energy system. With its impressive 15,000 W maximum PV array power and dual MPPT trackers, this inverter offers unparalleled efficiency and flexibility for both residential and commercial applications.

Key features of the Solplanet ASW10kH-T2 include:

• High maximum input voltage of 1100 V
• Wide MPP voltage range from 200 V to 950 V
• Compatibility with LiFePO4 batteries (120 V to 600 V range)
• 10,000 VA rated and maximum apparent power
• Exceptional Euro efficiency of 97.9% and peak efficiency of 98.4%
• Versatile AC voltage range (270 V to 480 V) and frequency options (50 Hz / 60 Hz)
• Advanced safety features including DC surge protection and anti-islanding protection
• IP66-rated enclosure for superior environmental protection
• Natural convection cooling for silent operation
• Compact dimensions (545 x 465 x 205 mm) and lightweight design (24.5 kg)
• User-friendly LED interface and app control
• Multiple communication options including WiFi, LAN, and RS485
• Integrated power control and export power control capabilities
• Ability to handle up to 150% PV array oversizing for higher yields

The Solplanet ASW10kH-T2 stands out with its remarkable versatility and reliability. Its ability to manage up to 150% PV array oversizing ensures maximum energy harvest, while the 100% unbalanced three-phase AC output provides stability in diverse load conditions. The inverter's user-friendly design allows for quick installation and easy setup through the Solplanet app, making it an ideal choice for both installers and end-users. With its intelligent work modes and customizable battery management, this inverter offers a future-proof solution for your evolving energy needs.
