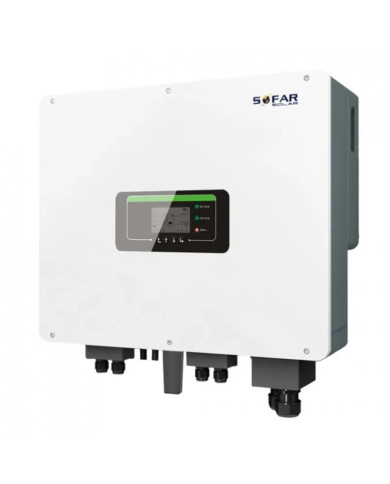

Sofar Solar HYD6KTL-3PH + BTS E10-DS5 (10.24 kWh)

The Sofar Solar HYD6KTL-3PH with BTS E10-DS5 is a comprehensive energy storage solution designed for residential and commercial applications. This kit combines a powerful three-phase hybrid inverter with a high-voltage lithium iron phosphate battery system to maximize energy independence and optimize energy consumption.

• High Efficiency: The HYD6KTL-3PH inverter boasts a maximum efficiency of 98%, ensuring minimal energy loss during conversion.
• Optimized Energy Management: Multiple operating modes such as self-use and automatic modes optimize energy consumption based on user needs.
• Zero Power Export: Built-in function prevents excess power from being fed back into the public grid.
• Wide Battery Voltage Range: Supports a wide battery voltage range (80-800 V) for flexible battery configuration.
• Quiet Operation: The fanless heat dissipation system ensures quiet operation with a noise level below 45 dB.
• Emergency Power Supply (EPS): Provides a built-in EPS function with fast switching time (<10 ms or <20 ms).
• Flexible Battery Compatibility: Compatible with both lithium-ion and lead-acid batteries.
• Modular Design: The BTS E10-DS5 features a modular and integrated design for easy transportation and installation.
• Expandable Capacity: Flexible battery capacity expansion from 1 to 4 BTS 5K modules (up to 20 kWh per BDU).
• Safe Technology: Utilizes safe and long-lasting Lithium Iron Phosphate (LiFePO4) cell technology.
• Independent Module Operation: Each module operates independently, ensuring continued operation even if one cell or module fails.
• Comprehensive Communication: Includes RS485, Wi-Fi, Bluetooth, CAN, Ethernet (optional), and GPRS (optional) interfaces.
• High Protection Rating: Both the inverter and battery system are IP65 rated for outdoor installation.

This integrated system offers a reliable and efficient way to store and manage solar energy, reducing reliance on the grid and ensuring power availability during outages. With its advanced features and robust design, the Sofar Solar HYD6KTL-3PH and BTS E10-DS5 provide a sustainable and cost-effective energy solution. The 10-year warranty on the energy storage system provides an additional layer of security, making this set a top choice for your energy storage needs.
