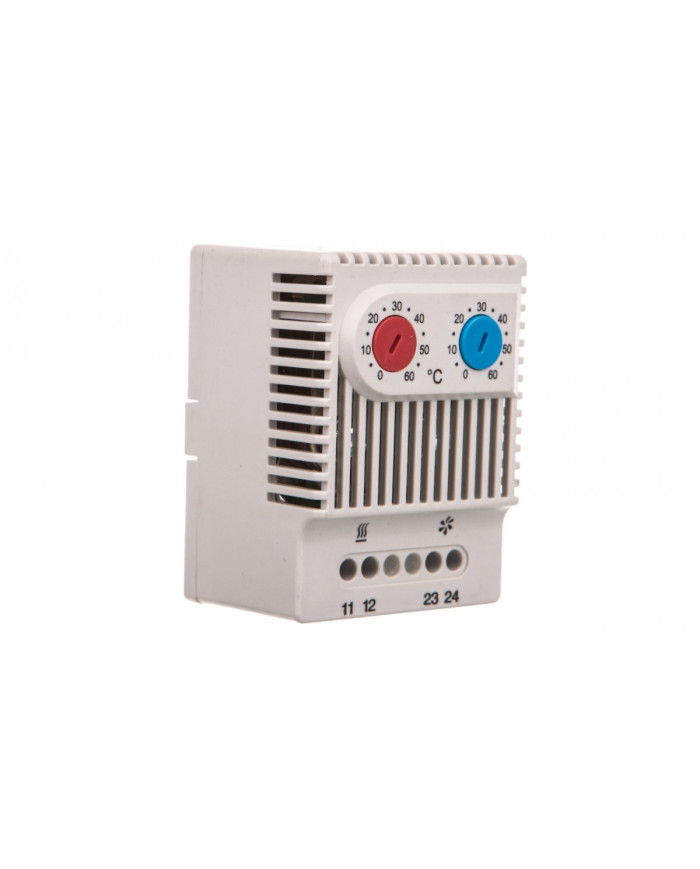

Leipole JWT6012 Dual Thermostat, 0-60°C, DIN Rail Mount

The Leipole JWT6012 is a dual-setting temperature dial thermostat designed for both heating and cooling applications, offering precise temperature control in a compact, DIN rail mountable housing. This thermostat is ideal for use in control cabinets and other applications where space is limited and independent control of heating and cooling is required.

• Dual Functionality: Combines two separate thermostats in one housing, saving space and simplifying installation.
• Normally Open (NO) Contact: Features a blue dial and is designed for controlling fans, heat exchangers, or alarm devices, closing on temperature rise.
• Normally Closed (NC) Contact: Equipped with a red dial and is ideal for regulating heaters, opening on temperature rise.
• Temperature Range: Operates within a temperature setting range of 0 °C to 60 °C.
• High Switching Capacity: The NC contact has a maximum switching capacity of 10 A resistive / 2 A inductive at 250 VAC, while the NO contact is rated at 5 A resistive / 2 A inductive at 250 VAC.
• DIN Rail Mounting: Designed for easy installation on a 35mm DIN rail (EN50022 / TS35).
• Compact Dimensions: Measures 69 x 50 x 46 mm, making it suitable for installations with limited space.
• Wide Operating Temperature: Functions effectively in operating temperatures from -5 °C to +80 °C.
• Durable Housing: Constructed with ABS material that meets UL 94V0 standards for flammability, ensuring durability and safety.
• Easy Wiring: Electrical connection via a 4-pole terminal, with a clamping torque of 0.8 Nm max, suitable for solid wires up to AWG 14 (2.5 mm²).
• IP20 Protection: Offers IP20 protection, guarding against solid objects.

The Leipole JWT6012 thermostat offers a reliable and efficient solution for temperature management in a variety of industrial and commercial settings. Its dual functionality, combined with its robust design and easy installation, makes it a versatile choice for maintaining optimal temperature conditions. The ability to independently control heating and cooling devices with a single unit simplifies system design and reduces overall costs.
