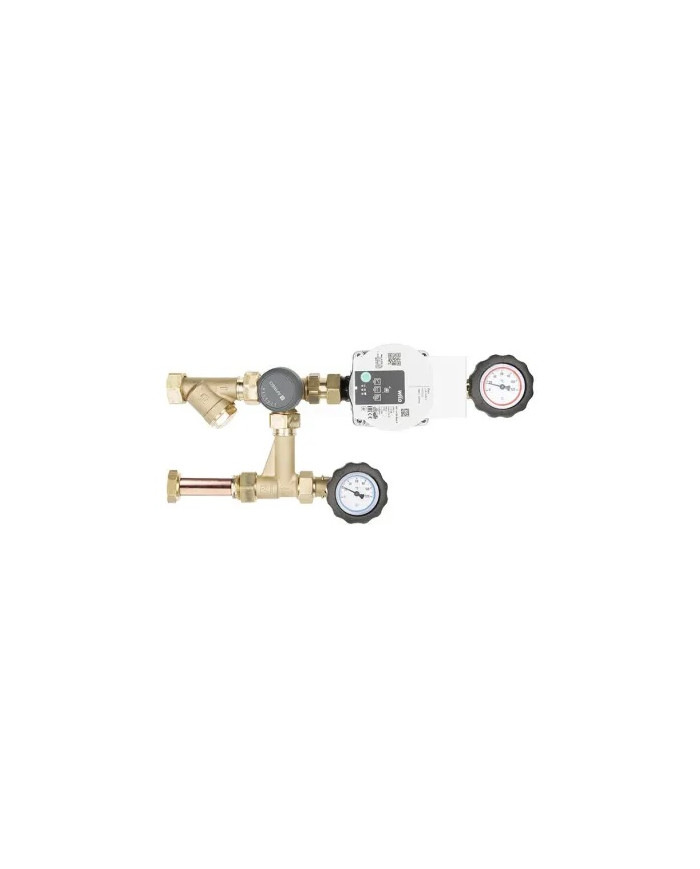

Afriso BPS 997 Pump Group with ARV 362 and Wilo Para SC

The Afriso BPS 997 Pump Group is a pre-assembled hydraulic unit designed for efficient connection of heat or cooling sources in various systems. Featuring the ARV 362 rotary mixing valve and a high-efficiency Wilo Para SC circulation pump, this pump group ensures precise temperature regulation and optimal performance. Simplify your heating and cooling installations with this reliable and versatile solution.

• Complete Unit: Includes the BPS 997 pump group, ARV 362 ProClick rotary mixing valve, and Wilo Para SC high-efficiency circulation pump.
• Versatile Application: Suitable for heating and cooling systems, connecting heat sources with two or three circuits such as surface systems, radiators, or hot water storage tanks.
• Precise Temperature Control: ARV 362 mixing valve allows for accurate manual temperature regulation, with a Kvs value of 6.3 m³/h.
• High-Efficiency Pump: Equipped with a Wilo Para SC pump (e.g., 15-6), ensuring energy-efficient operation with an Energy Efficiency Index (EEI) ≤ 0.20.
• Robust Construction: Features necessary fittings including a mesh filter, shut-off valves, and a tee with a built-in check valve on the return.
• Easy Installation: Designed for mounting near the heat or cooling source, compatible with a manifold with hydraulic clutch BLH 890, and can be installed with the heat source on either the right or left side.
• Thermometers Included: Comes with thermometers (diameter 50 mm, range 0°C to 120°C) for easy temperature monitoring.
• Durable Materials: Constructed with a brass CW617N body and EPDM seals for the ARV 362 valve, ensuring longevity and resistance to wear.
• Safety Compliant: Complies with Pressure Equipment Directive 2014/68/EU, Article 4.3, and marked with the B construction mark according to national regulations.
• Flexible Control Options: Can be equipped with an ARM ProClick actuator and a suitable controller (e.g., ACT 443 ProClick or ARC 345 ProClick) for remote or automatic temperature control.
• Maximum Operating Conditions: Designed for a maximum operating pressure of 10 bar and a maximum medium temperature of 90°C.
• Glycol Compatibility: Suitable for use with aqueous glycol solutions up to a maximum concentration of 50%.

The Afriso BPS 997 Pump Group offers a reliable and efficient solution for managing heating and cooling circuits. With its integrated components and thoughtful design, it simplifies installation and ensures optimal performance. Whether for residential or commercial applications, this pump group provides the control and durability needed for effective thermal management.
