Description
Epever
25405

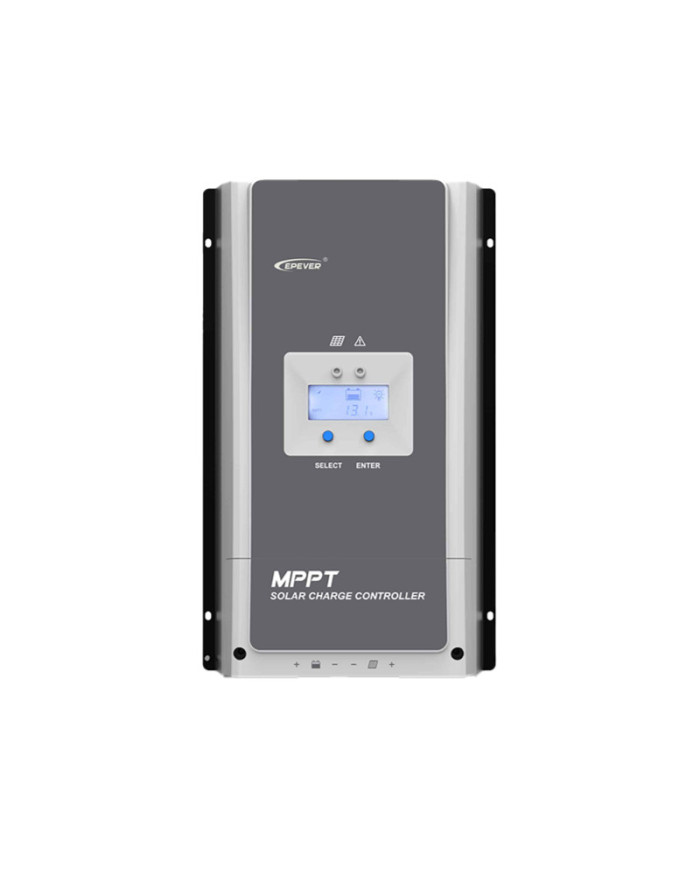

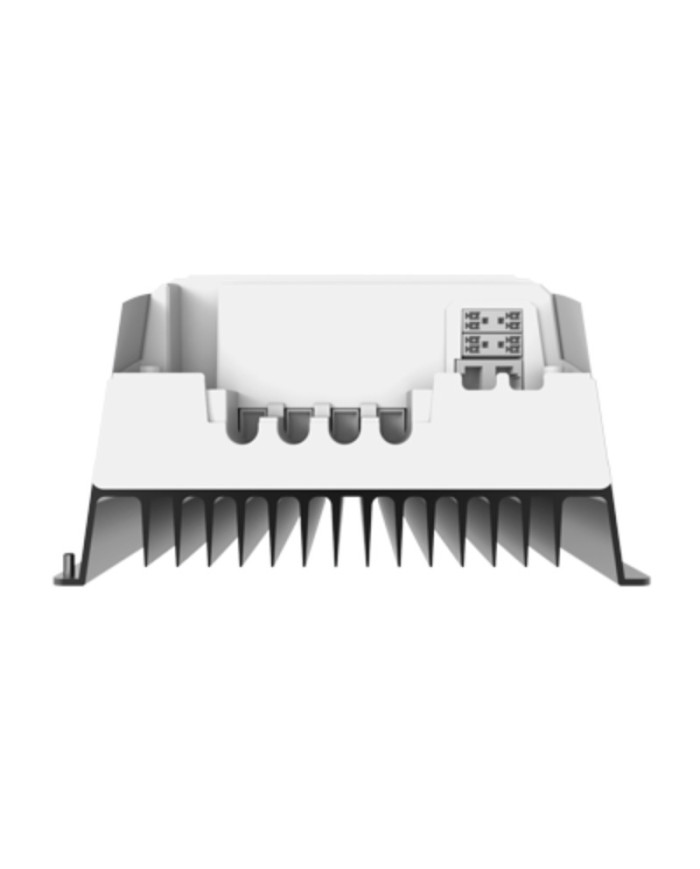

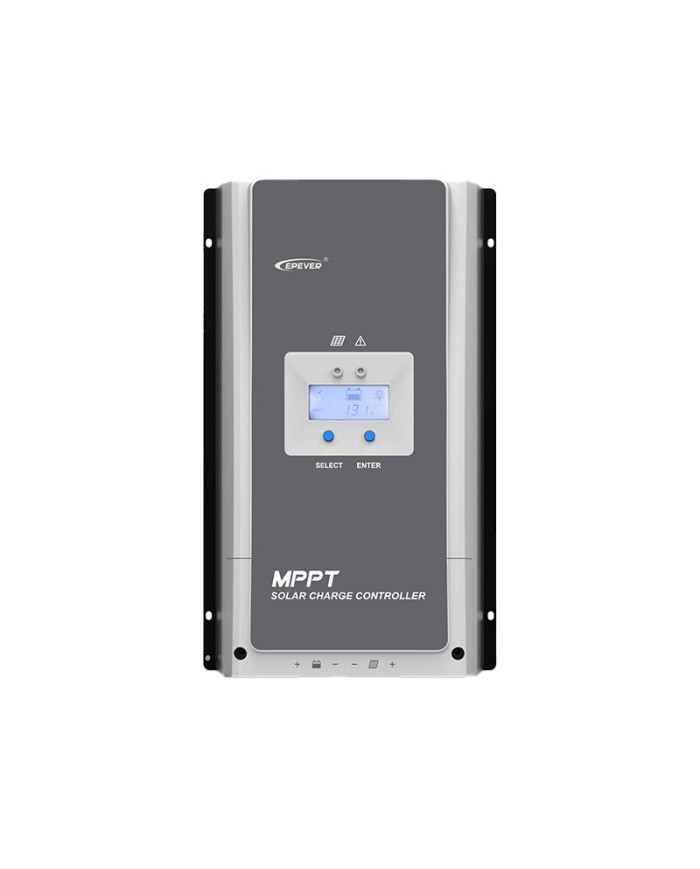

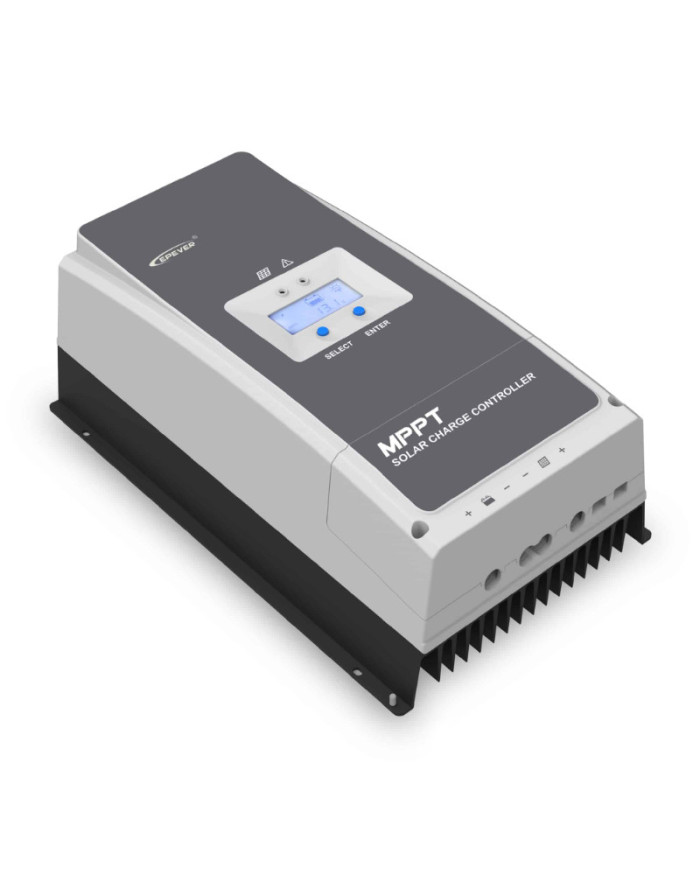

The EPEVER MPPT Tracer 8420AN is a high-performance 80A charge controller designed to maximize the efficiency of your solar power system. This advanced controller utilizes cutting-edge MPPT technology to optimize energy harvesting from your solar panels, ensuring you get the most out of every ray of sunshine.

  • MPPT Tracking Efficiency: ≥99.5%, ensuring maximum power point tracking.
  • High Conversion Efficiency: Up to 98.7%, minimizing energy loss during conversion.
  • Nominal System Voltage Auto Recognition: Supports 12/24/36/48VDC systems.
  • Rated Charge Current: 80A, suitable for larger solar arrays.
  • Wide Battery Compatibility: Compatible with Lead-acid (Sealed/Gel/Flooded) and Lithium (LiFePO4/Li(NiCoMn)O)3 batteries.
  • Max. PV Open Circuit Voltage (Voc): 150V (coldest environment) / 138V (at 25°C), providing flexibility in panel selection.
  • Comprehensive Protection Features: Includes PV over current/power, short circuit, reverse polarity, and night reverse charging protection.
  • Temperature Compensation: Battery temperature compensation function ensures optimal charging in varying conditions.
  • Communication Interface: RS485 with MODBUS protocol for easy monitoring and control.
  • Relay Control: 3 relays for utility, generator, and load control in hybrid power systems.
  • Parallel Operation: Supports up to 8 units in parallel for system expansion.
  • Real-time Energy Recording: Tracks energy production and provides statistical data.
  • Robust Design: High-quality components from ST and Infineon ensure long-term reliability.

With its advanced features and robust design, the EPEVER MPPT Tracer 8420AN charge controller is an excellent choice for both residential and commercial solar power systems. It provides reliable and efficient charging, maximizing the lifespan and performance of your battery bank. The ability to monitor and control the system remotely adds another layer of convenience and ensures optimal system operation.
