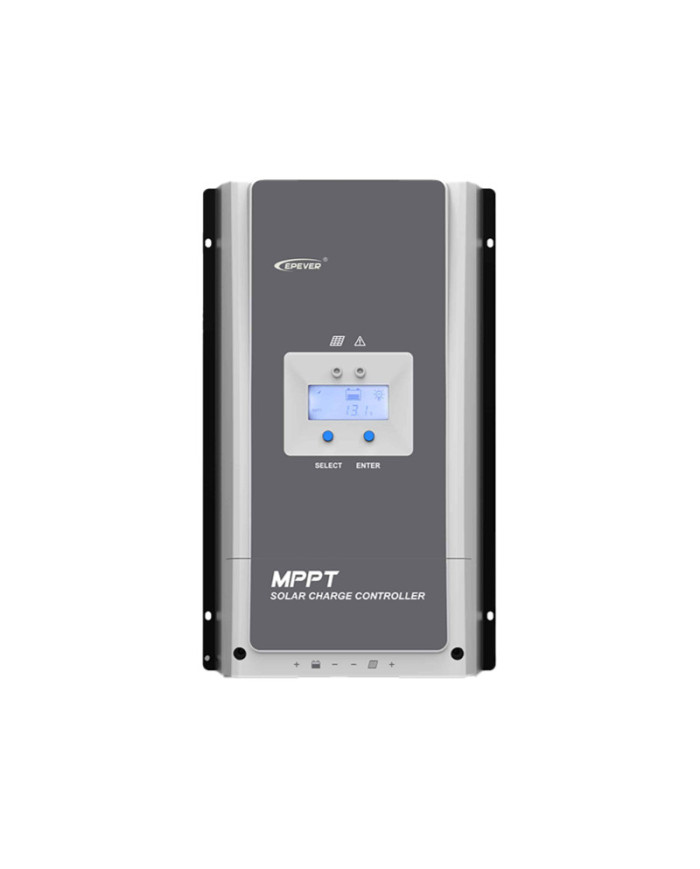

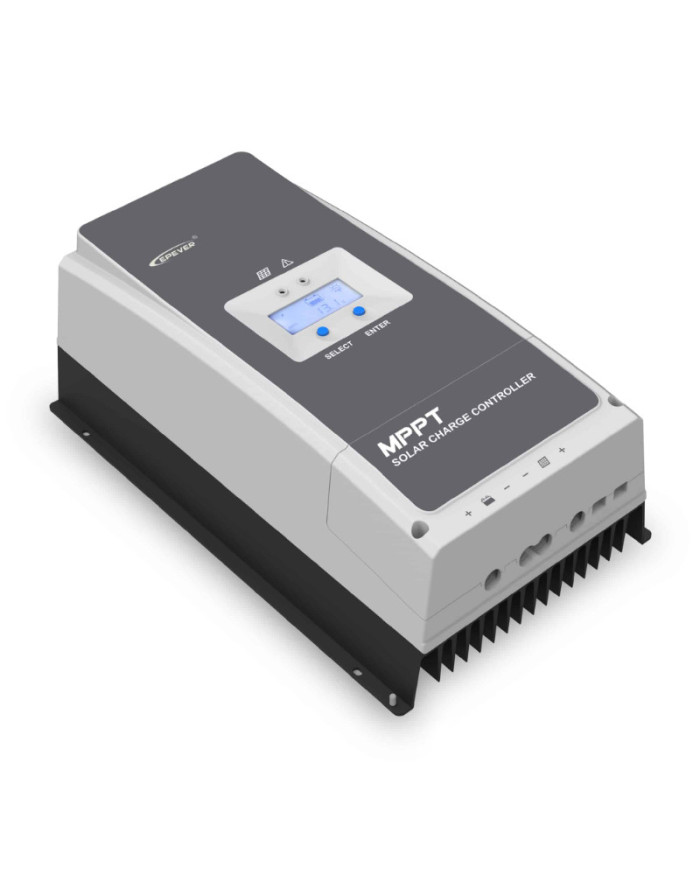

EPEVER MPPT Tracer 10420AN 100A Charge Controller

€358.40
Tax excluded
Warehouse Warsaw 2
Delivery to
Poland
Austria
Belgium
Bulgaria
Croatia
Cyprus
Czechia
Denmark
Estonia
Finland
France
Germany
Greece
Hungary
Ireland
Italy
Latvia
Lithuania
Luxembourg
Malta
Netherlands
Poland
Portugal
Romania
Slovakia
Slovenia
Spain
Sweden

Shipping cost

€4.04/package

€55.34/palette

20 Items

Files: 25406
Description
Epever
25406

The EPEVER MPPT Tracer 10420AN 100A Charge Controller is a high-performance solution for managing solar power in your renewable energy system. This advanced controller utilizes an MPPT (Maximum Power Point Tracking) algorithm to maximize energy harvest from your solar panels, ensuring efficient and reliable charging for your batteries.

  • Model: Tracer 10420AN
  • Nominal System Voltage: 12/24/36/48VDC or Auto
  • Rated Charge Current: 100A
  • Max. PV open circuit voltage: 200V (At minimum operating environment temperature), 180V (At 25C environment temperature), (Battery Voltage + 2V) ~ 144V
  • Battery Type: Lead-acid (Sealed/Gel/Flooded) / Lithium (LiFePO4/Li(NiCoMn)O) / User-defined
  • Communication interface: RS485 (5VDC/200mA, Two RJ45 ports in parallel), Isolated RS-485 with 5VDC/200mA and MODBUS protocol
  • Operating temperature range: -25°C ~ +60°C (derating above 45°C), -25°C ~ +45°C
  • Dual-core processor architecture for enhanced performance
  • Common negative grounding design for safety and compatibility
  • Adaptive three-stage charging mode for optimized battery health
  • Features PV Over Current/Power protection, PV Short Circuit protection and PV Reverse Polarity protection
  • Supports up to 8 units in parallel for system expansion

With its robust design, comprehensive protection features, and versatile communication options, this charge controller is an excellent choice for a wide range of solar power applications. The EPEVER MPPT Tracer 10420AN ensures that your solar energy system operates at peak efficiency while providing reliable and safe power management. Take your solar power system to the next level with the EPEVER MPPT Tracer 10420AN 100A Charge Controller, offering superior performance and long-lasting durability for all your energy needs.
