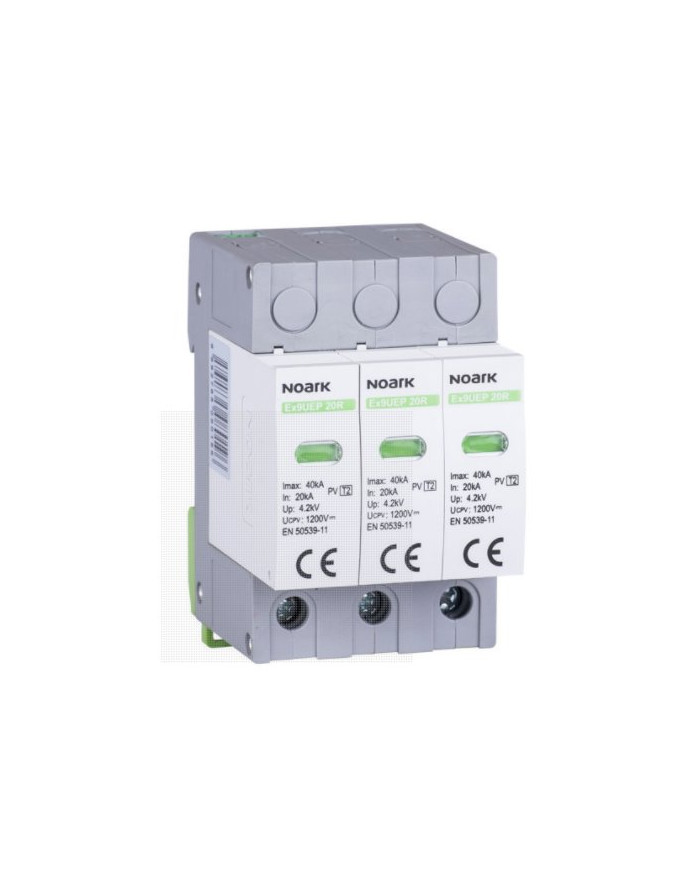

NOARK Ex9UEP Surge Arrester PV 1000V DC Type 1+2 3P

Protect your photovoltaic installations with the NOARK Ex9UEP Surge Arrester, designed to safeguard against voltage surges and ensure the longevity of your solar panels. This high-quality surge arrester offers reliable protection and peace of mind.

• Type 1+2 Protection: Provides comprehensive protection against both direct and indirect lightning strikes.
• High Voltage Capacity: Rated for 1000V DC nominal voltage, suitable for most PV systems.
• Replaceable Modules: Allows for easy maintenance and replacement of individual modules, extending the lifespan of the device.
• Visual Indicator: Features a clear visual indicator for immediate status monitoring of the arrester.
• 3-Pole Configuration: Designed with a 3P configuration for complete protection of your DC circuits.
• Nominal Discharge Current (In): Handles a nominal discharge current of 6.25 kA (10/350 µs).
• Maximum Discharge Current (Imax): Capable of withstanding a maximum discharge current of 20 kA (8/20 µs).
• Wide Operating Temperature: Functions reliably in a broad temperature range from -40 °C to +80 °C.
• Compact Dimensions: With a width of just 17.5 mm, it saves valuable space in your electrical panel.
• Standard Rail Mounting: Easy to install on a standard TH-35 mm rail.
• High Maximum Continuous Operating Voltage (Uc): With 1500 V DC ensures stable operation.
• Compliance with Standards: Meets EN 61643-11 and 61643-31 standards, ensuring safety and performance.
• IP20 Protection Degree: Offers IP20 level protection against solid objects.
• Lightweight Design: Weighing only 0.12 kg, it adds minimal weight to your installation.

The NOARK Ex9UEP is an essential component for any photovoltaic system, providing robust surge protection to prevent damage from lightning and voltage spikes. Its compact design and easy installation make it a convenient and effective solution. Ensure the safety and reliability of your solar investment with this dependable surge arrester.
