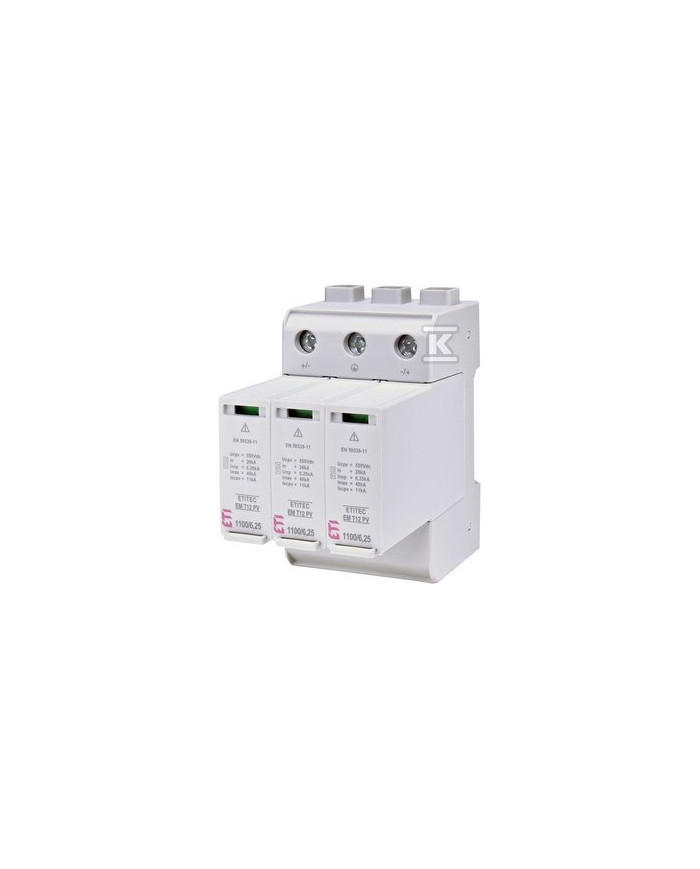

ETI ETITEC EM T12 PV 1100/6.25 Y Surge Arrester T1+T2 (B+C) DC

Ensure the safety and longevity of your photovoltaic systems with the ETI ETITEC EM T12 PV 1100/6.25 Y Surge Arrester. This high-performance surge arrester provides robust protection against transient overvoltages, safeguarding your valuable equipment from damage.

• Designed for DC systems up to 1100V, ideal for photovoltaic applications.
• Combined T1+T2 (B+C) protection, offering comprehensive surge protection.
• Features a nominal discharge current of 20 kA (8/20 µs) and a maximum discharge current of 40 kA (8/20 µs).
• Equipped with a nominal lightning discharge current of 6.25 kA (10/350 µs).
• Provides a total nominal lightning discharge current of 6.25 kA (10/350 µs).
• Offers a protection level Up of 3.8 kV, ensuring sensitive equipment is well-protected.
• Ultra-fast response time of less than 25 ns.
• Internal thermal protection enhances safety and prevents overheating.
• Withstands a short circuit current of 11 kA.
• Wide operating temperature range from -40°C to +85°C.
• Easy installation on TH35 mounting rail.
• IP20 protection class ensures safety against solid objects.

The ETI ETITEC EM T12 PV 1100/6.25 Y surge arrester is built with high-quality materials, including a thermoplastic housing that meets UL 94 V-0 standards for flammability. Meeting EN 50539-11:2013+A1:2014 standards, this surge arrester is a reliable choice for protecting your DC power systems from the damaging effects of surges, ensuring uninterrupted operation and extending the lifespan of your equipment. With its compact design and easy installation, it’s an essential component for any PV installation.
