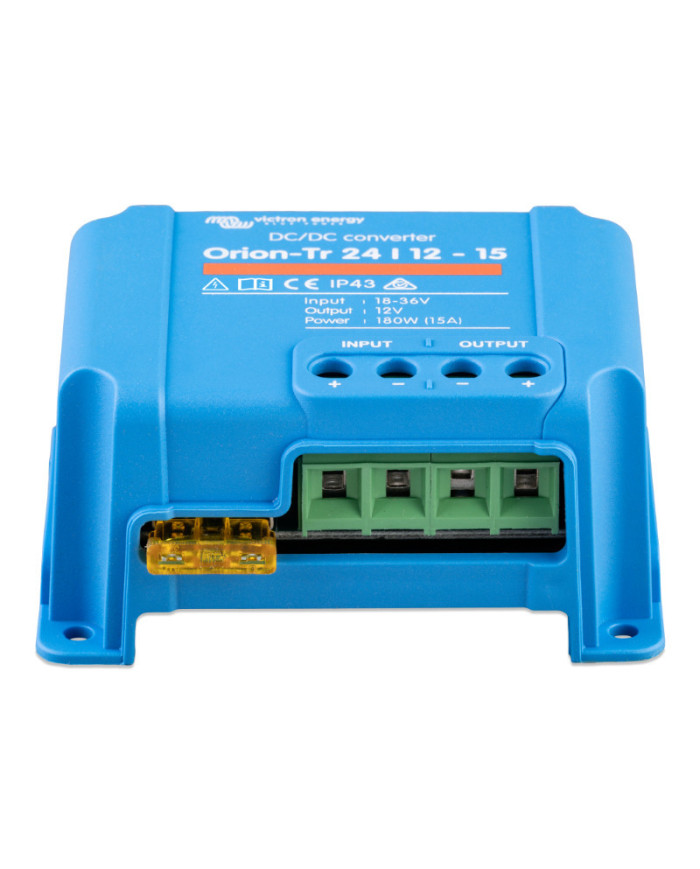

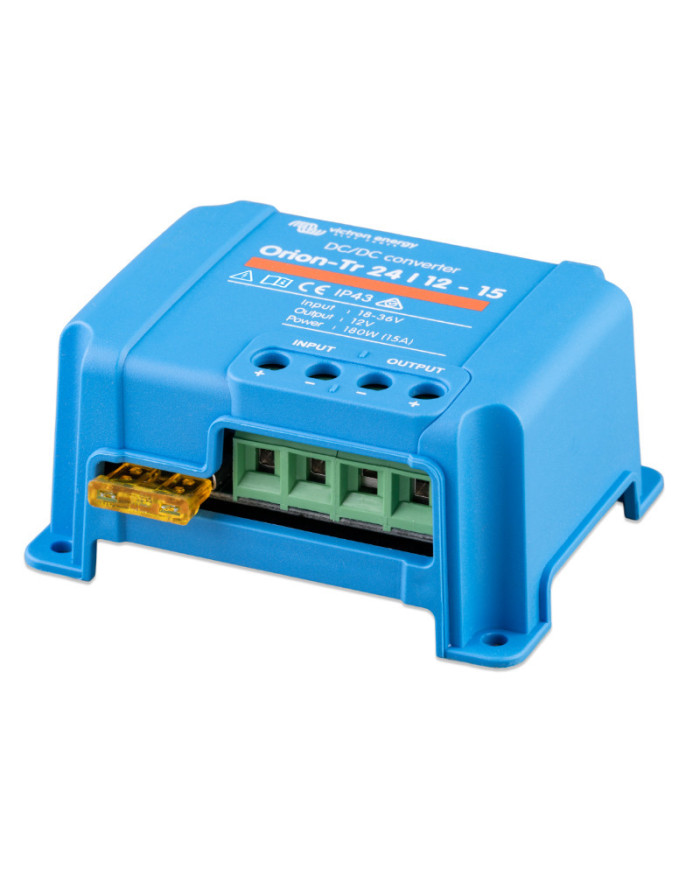

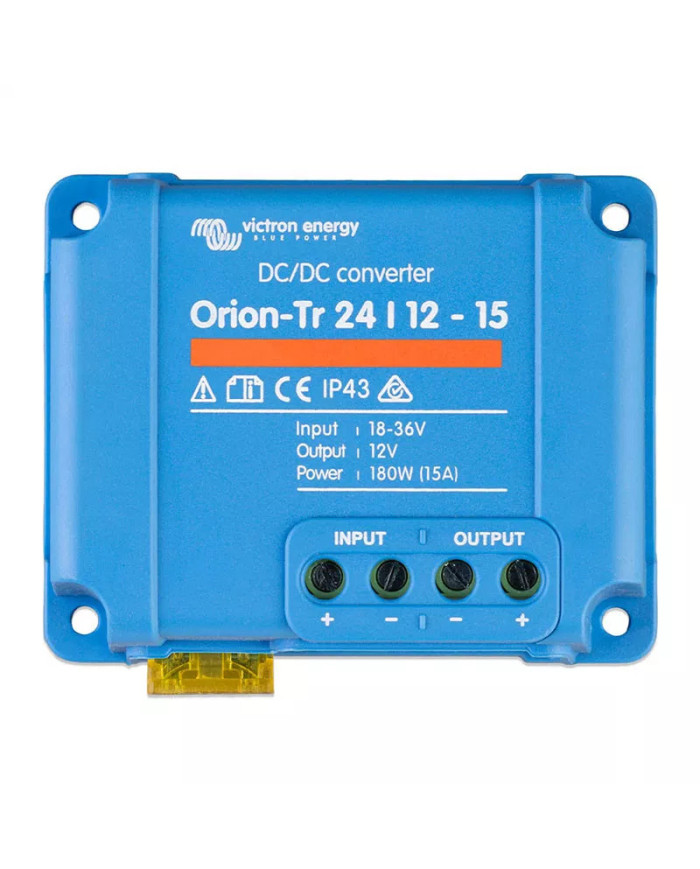

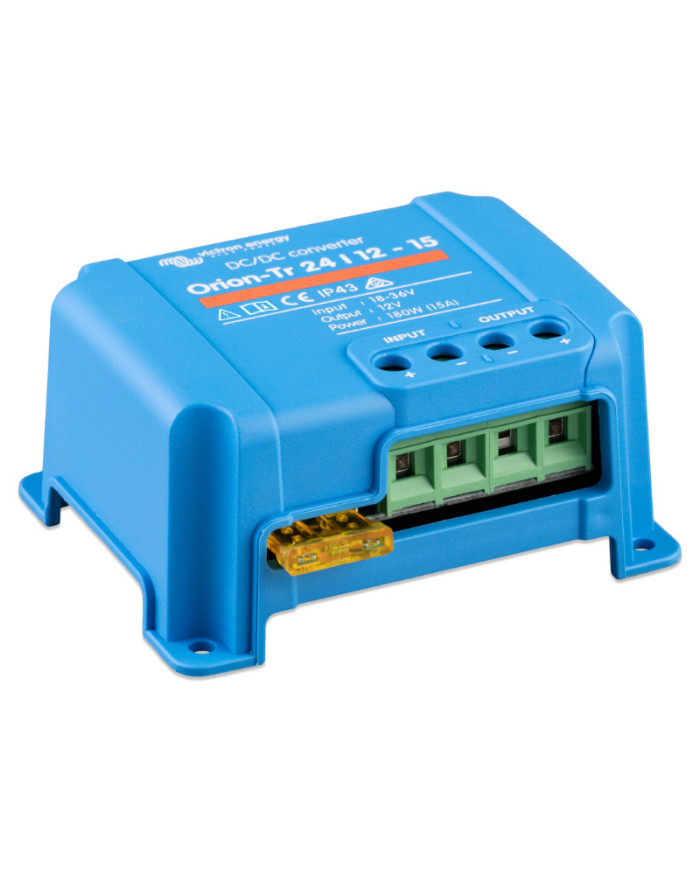

Victron Orion-Tr 24/12-15 (180W) DC-DC Converter

The Victron Orion-Tr 24/12-15 (180W) DC-DC Converter provides a reliable solution for converting 24V DC input to a stable 12V DC output. Designed for efficiency and durability, this converter is perfect for a variety of applications requiring a stable power supply.

• High Efficiency: Achieves over 95% efficiency at full load, thanks to synchronous rectification.
• Wide Input Voltage Range: Operates effectively with input voltages from 18 to 35V.
• Stable Output Voltage: Provides a consistent 12.5V output.
• Continuous Output Current: Delivers a continuous output current of 15A.
• Maximum Output Current: Capable of a maximum output current of 20A.
• Non-Isolated Design: Not Galvanically isolated.
• Low Idle Current: Consumes less than 35 mA of idle current.
• Broad Operating Temperature Range: Functions in temperatures ranging from -20 to +55°C (with derating above 40°C).
• Convenient DC Connection: Features screw terminals for easy and secure DC connections.
• Generous Cable Capacity: Accepts maximum cable cross-sections up to 6 mm² / AWG10.
• Lightweight Design: Weighs only 0.25 kg / 0.55 lbs.
• Compact Dimensions: Measures 73x94x45 mm / (2.9x3.7x1.8 inches).
• IP43 Protection: Offers IP43 protection when mounted with screw terminals facing downwards.

This Victron DC-DC converter ensures a stable and efficient power conversion, making it suitable for automotive and industrial applications. Compliant with multiple safety, emission, and immunity standards, it’s a dependable choice for your power needs. Installation is straightforward, requiring no specialized tools, and the device is designed to meet rigorous automotive standards, ensuring reliability in diverse conditions.
