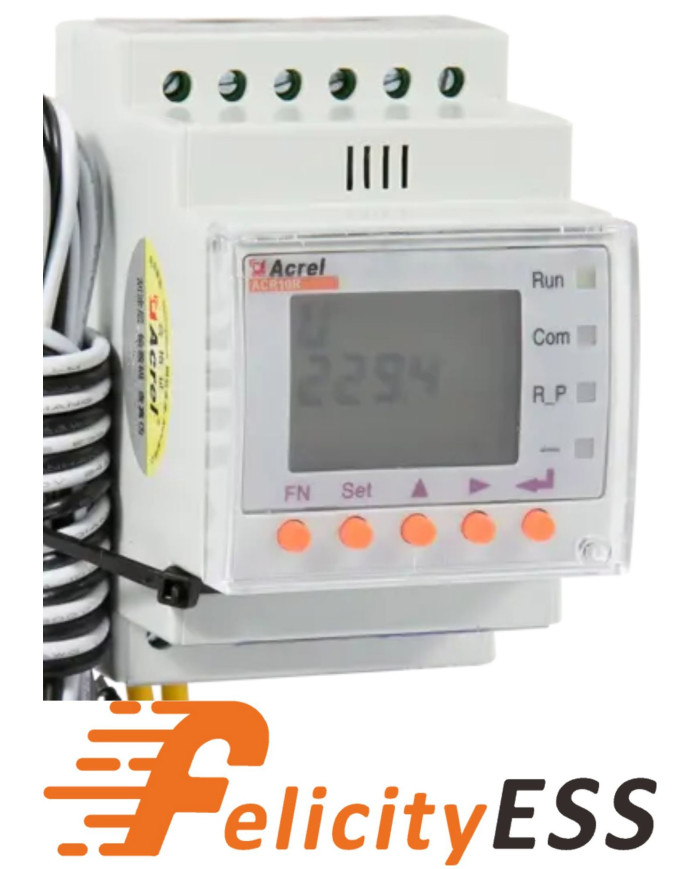

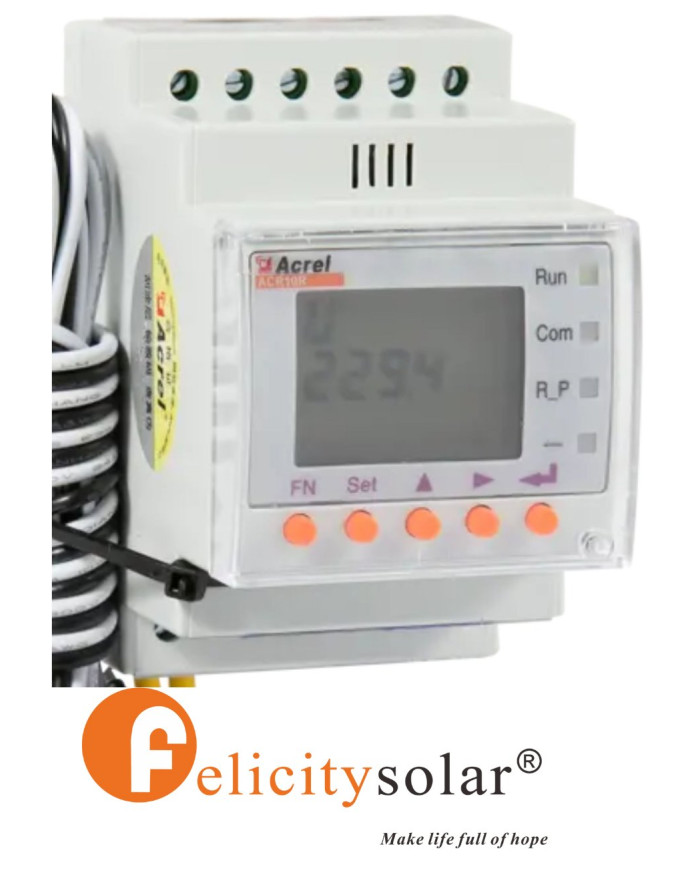

FelicityESS ACR10R-D16TE Single-Phase Smart Meter

The FelicityESS ACR10R-D16TE Single-Phase Smart Meter is a precise and versatile device designed for accurate energy monitoring in various applications. Featuring a compact design and robust functionality, this smart meter is an ideal solution for both residential and commercial energy management.

• Bidirectional AC Metering: Accurately measures both imported and exported energy.
• Multiple Current Options: Supports various current ratings (10A, 20A, 40A, 80A, 120A, 200A) via paired CT for flexible usage. Includes 120A via paired CT and CT clamp (abrazadera CT).

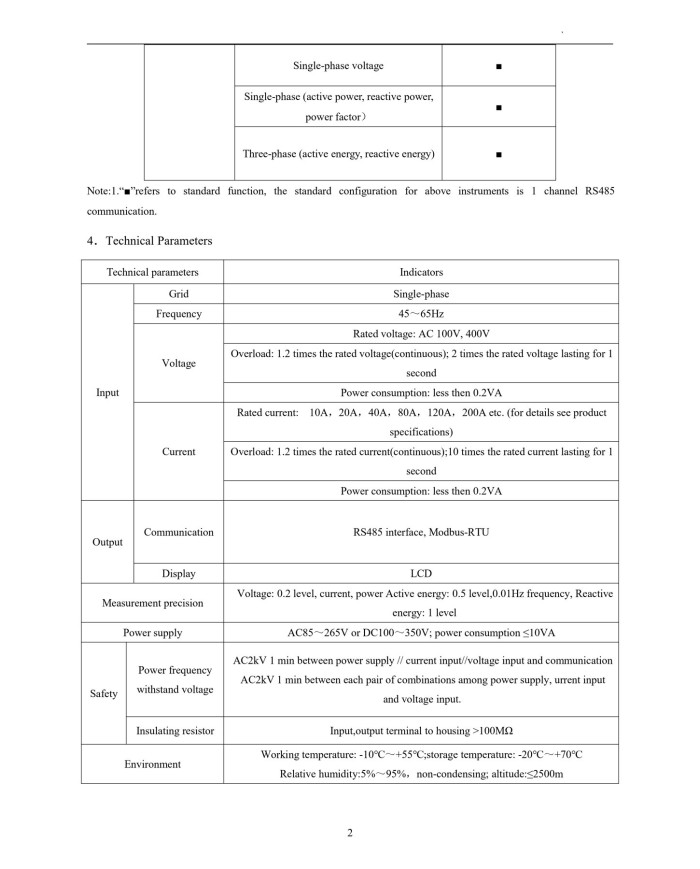

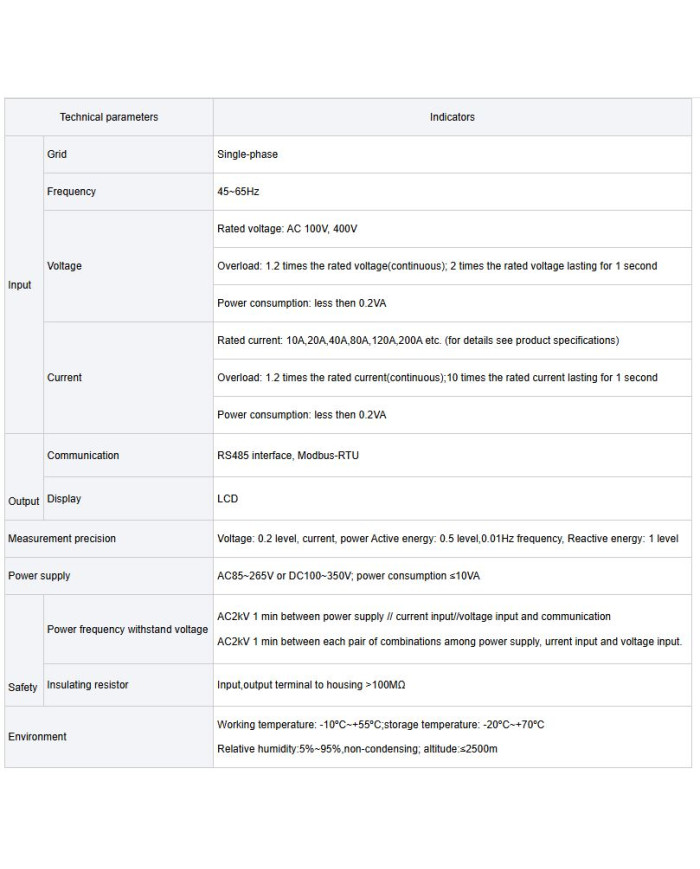

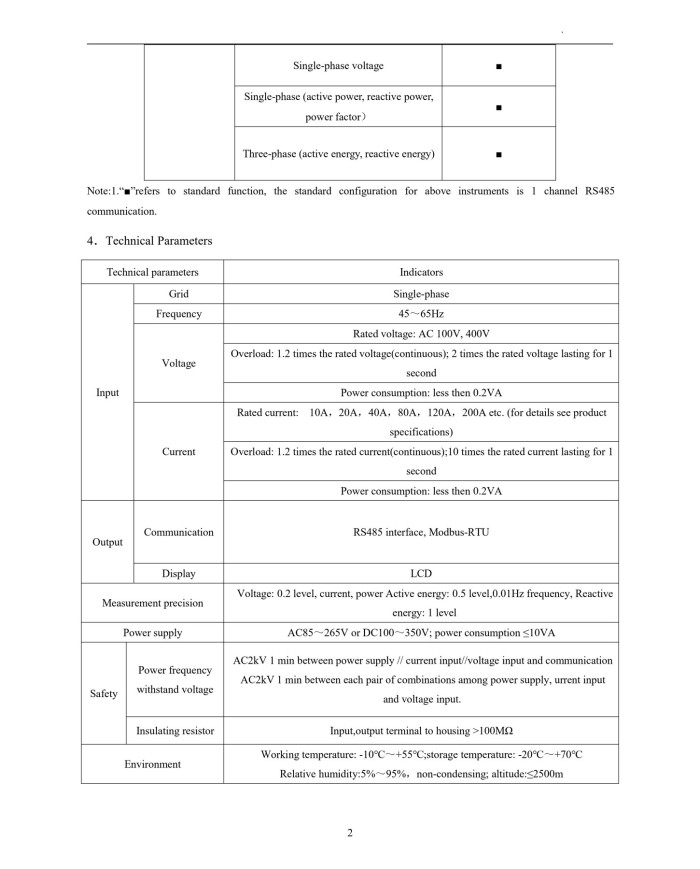

• High Accuracy: Provides precise measurements with 0.2 level accuracy for voltage and 0.5 level accuracy for current and active power.
• Comprehensive Display: Shows real-time data including voltage, current, frequency, active power, reactive power, apparent power, power factor, and energy values.
• RS485 Communication: Equipped with an RS485 interface for seamless data transmission using the MODBUS-RTU protocol. RS485 Cable with RJ45 connector included.
• DIN Rail Mounting: Designed for easy installation on standard 35mm DIN rails.
• Wide Voltage Range: Operates within AC 220~264V L-N (45~65Hz), also supports AC 100V and 400V.

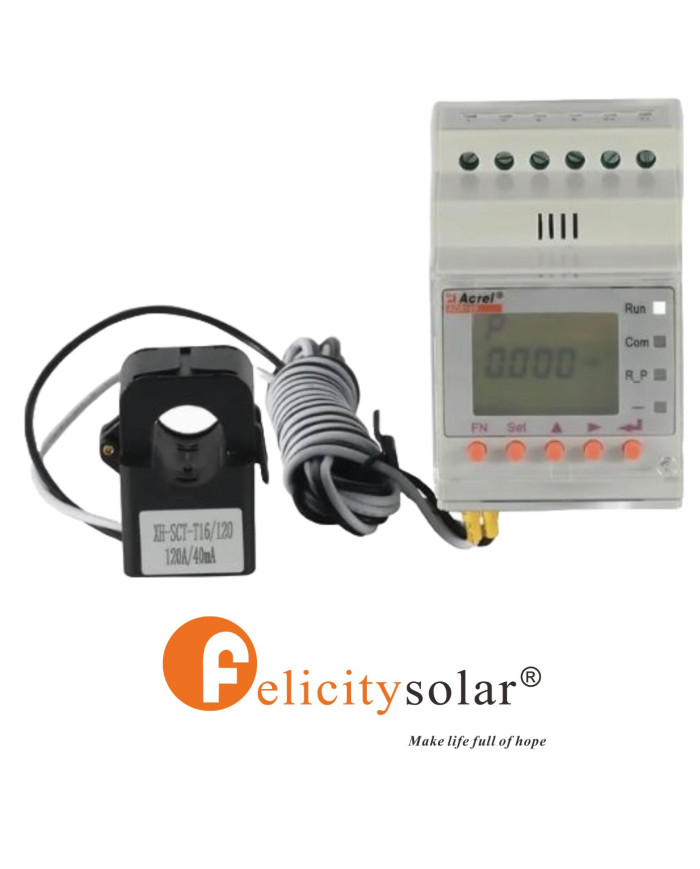

• D16-Φ16mm, 120A Open CT Model for accurate current measurement.
• Programmable Settings: Allows customization of communication address, baud rate, and communication mode.
• Wide Compatibility: Integrated with Ginlong, Fustite, Alpha ESS, etc., making it suitable for Solar PV Energy systems.
• Robust Design: Operates reliably in temperatures from -10℃ to +55℃ and humidity levels from 5% to 95%.
• Safety Compliance: Meets CE standards and provides high insulation resistance for safe operation.
• Password Setting: Added security for the programming menu.

This single-phase smart meter is perfect for energy-saving reconstruction projects and limiting power export in grid-tied systems. With its easy installation, comprehensive measurement capabilities, and versatile communication options, the FelicityESS ACR10R-D16TE offers a reliable and efficient solution for monitoring and managing energy consumption. The meter's robust design and wide compatibility make it a valuable addition to any energy management system, ensuring accurate and dependable performance.
