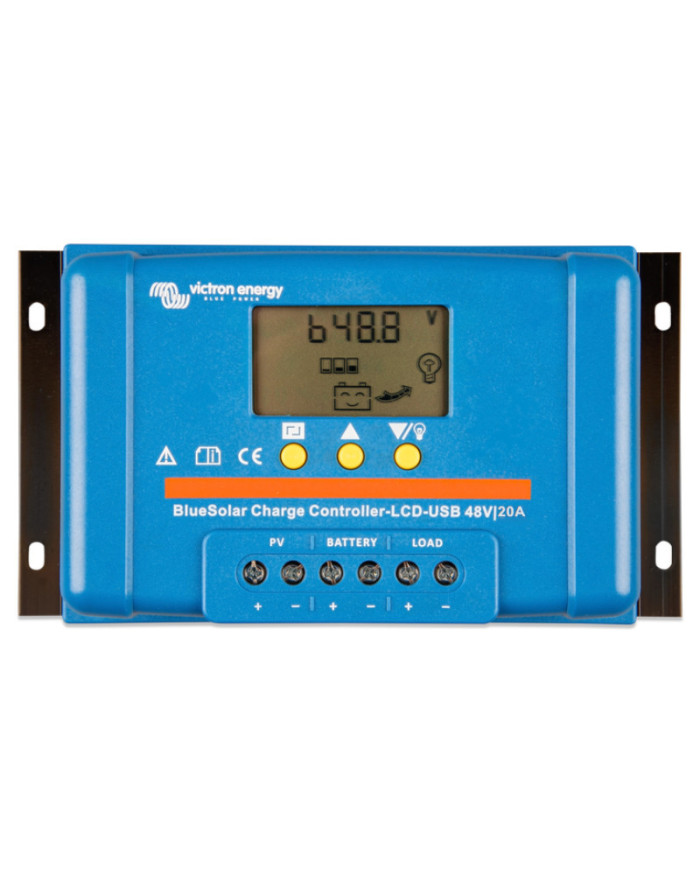

Victron Energy BlueSolar PWM-LCD&USB 48V 20A Solar Charge Controller

The Victron Energy BlueSolar PWM-LCD&USB 48V 20A Solar Charge Controller is an efficient and reliable solution for managing your solar power system. This controller ensures optimal battery charging while providing essential protection features for long-lasting performance.

• 48V Battery Voltage: Designed for 48V battery systems, ensuring compatibility and efficient charging.
• 20A Rated Charge Current: Capable of handling up to 20A of charge current, suitable for small to medium-sized solar arrays.
• Automatic Load Disconnect: Protects the battery from over-discharge by automatically disconnecting the load when the voltage drops to a critical level.
• Maximum Solar Voltage of 100V: Accommodates solar panels with a maximum open circuit voltage of up to 100V.
• Low Self-Consumption: Consumes less than 10 mA of current, minimizing energy waste and maximizing system efficiency.
• Versatile Load Output: Offers manual control, low voltage disconnect, and timer functions for flexible load management.
• Comprehensive Overload Protection: Includes shut down mechanisms for overload (60s at 130% load, 5s at 160% load), short circuits (immediate shut down), and over temperature conditions.
• Wide Operating Temperature Range: Functions reliably in temperatures ranging from -35 to +60°C, ensuring consistent performance in various environments.
• Adjustable Charge Voltages: Factory settings include 57.6V for 'Absorption' and 54.8V for 'Float', optimising battery health.
• USB Output: Equipped with 5V, 2A USB ports (total from 2 outputs) for charging mobile devices and other USB-powered equipment.
• Robust Protection Class: Features an IP20 protection rating, safeguarding against solid objects.
• Compact Dimensions: Measuring 101x184x47mm (4.0 x 7.4 x 1.8 inch), it's easy to install in tight spaces.

The BlueSolar PWM-LCD&USB charge controller features an LCD screen to display the charging parameters, allowing for easy monitoring of the performance. Built to meet stringent safety standards, including EN60335-1 and IEC 62109-1, you can trust this product for longevity and safety. Weighing only 0.3kg, the Victron Energy BlueSolar PWM charge controller offers a blend of features and safety, making it an essential component for any solar setup.
